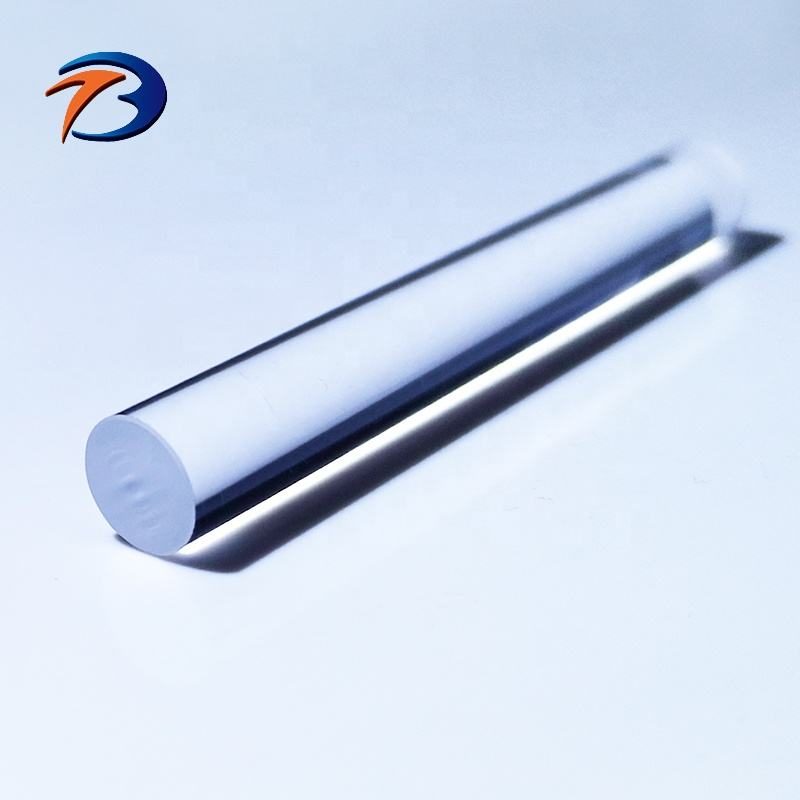

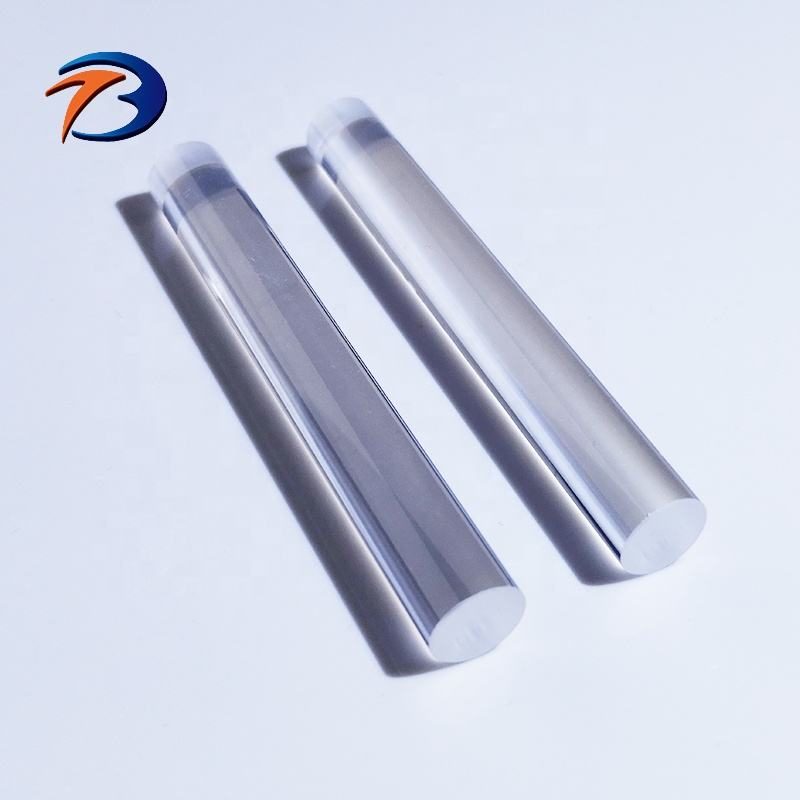

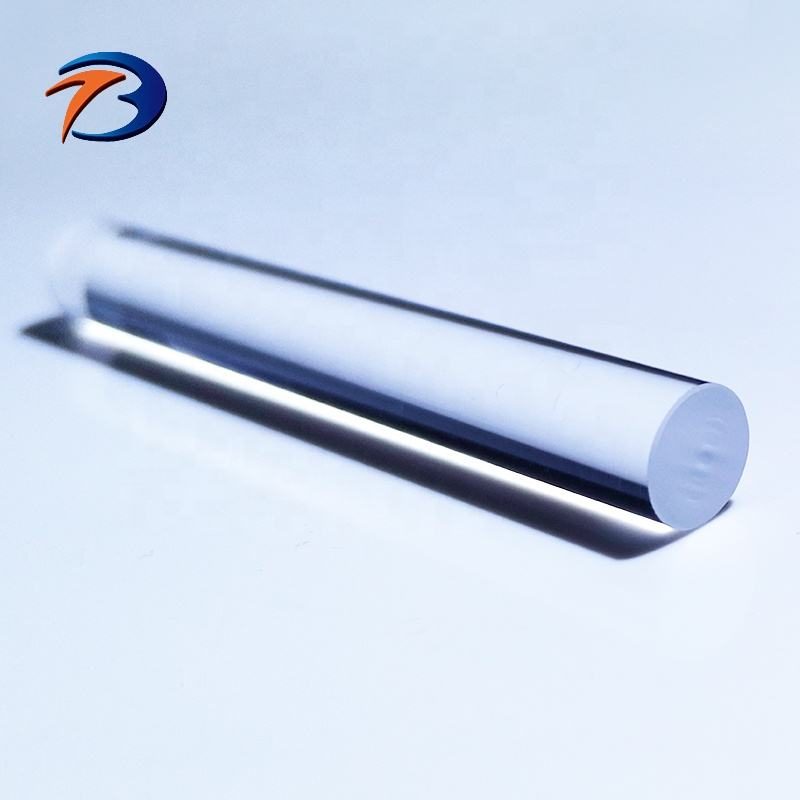

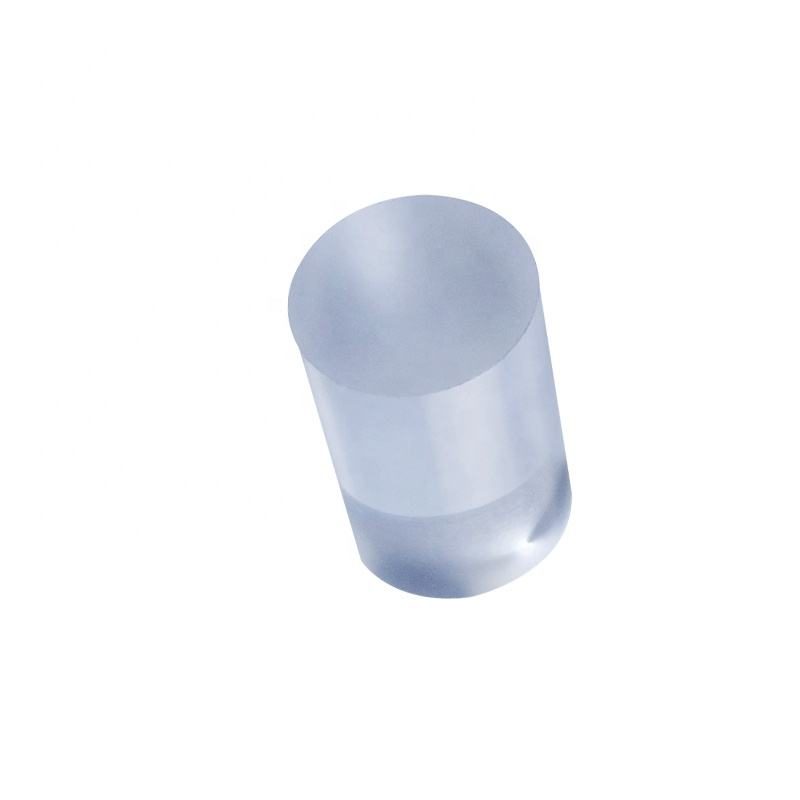

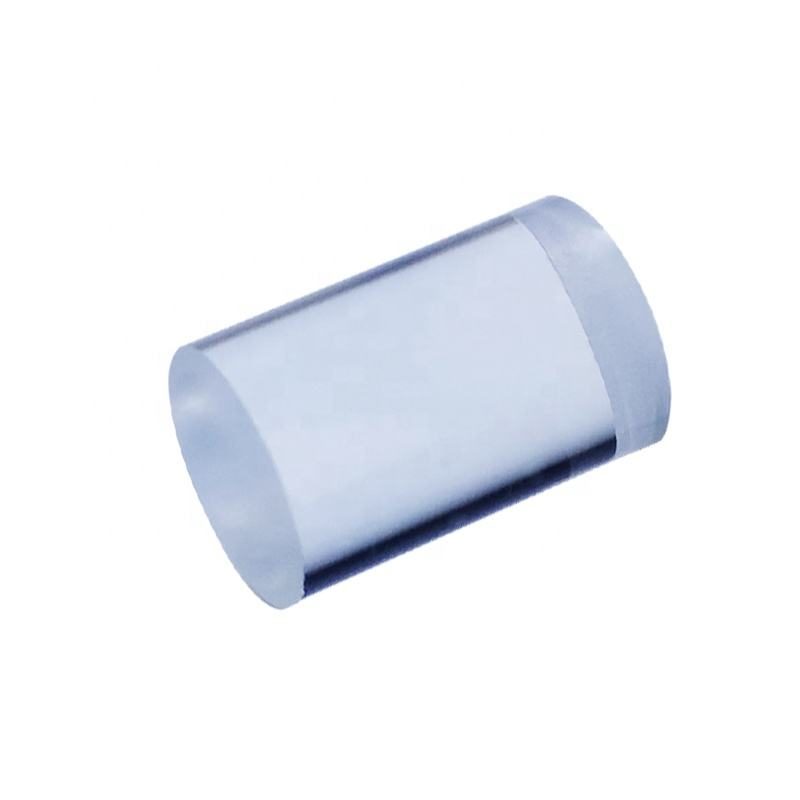

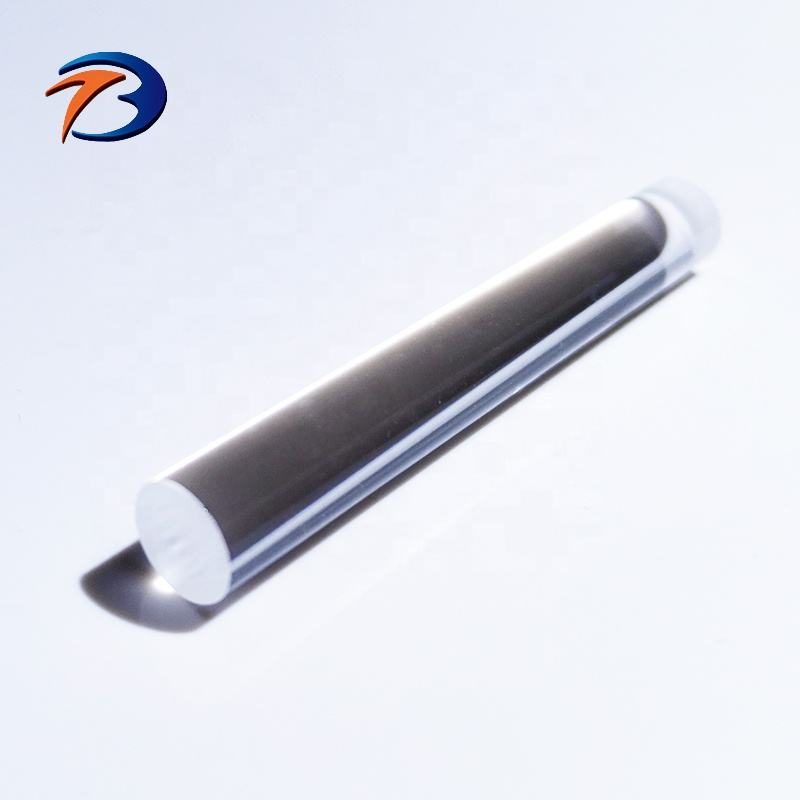

2.8 mm Fused Silica Cylindrical Lens, AR Coated

Product description

The cylindrical rod lens is designed for applications in collimation and imaging across a broad wavelength range of 0.4 to 1.7 μm. Its precise cylindrical shape allows for effective beam shaping and focusing of collimated light into a line, making it ideal for laser and imaging optical assemblies. Manufactured from high-quality fused silica, this lens offers excellent performance in UV, visible, and NIR applications.

Key Features

Diameter of 2.77 mm ensures compatibility with various optical systems.
High clear aperture of >90% maximizes light transmission for improved imaging.
Customizable support for OEM and ODM projects to meet specific requirements.
Dimension tolerance of ±0.05 mm allows for precise integration into existing setups.
Lightweight at 0.5 g, facilitating easy handling and installation.

Applications

Collimation, Imaging

Specification Summary

Item	Value
Material	Fused Silica
Shape	Cylindrical
Diameter	2.8 mm
Coating	anti-reflective (AR)
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)

Full Specifications

Parameter	Value
Type	Cylindrical; Optical lens
Customized Support	OEM, ODM
Warranty	1year
Weight	0.5
Dimension Tolerance	2.0-350±0.05mm
Thickness Tolerance	1-70±0.05mm
Focal Length Tolerance	±1 %
Clear Aperture	>90%

FAQ

What are the available custom sizes for this lens?

Custom sizes are supported through OEM and ODM options.

What is the minimum order quantity (MOQ) for this lens?

The minimum order quantity is not specified but can be discussed with the supplier.
