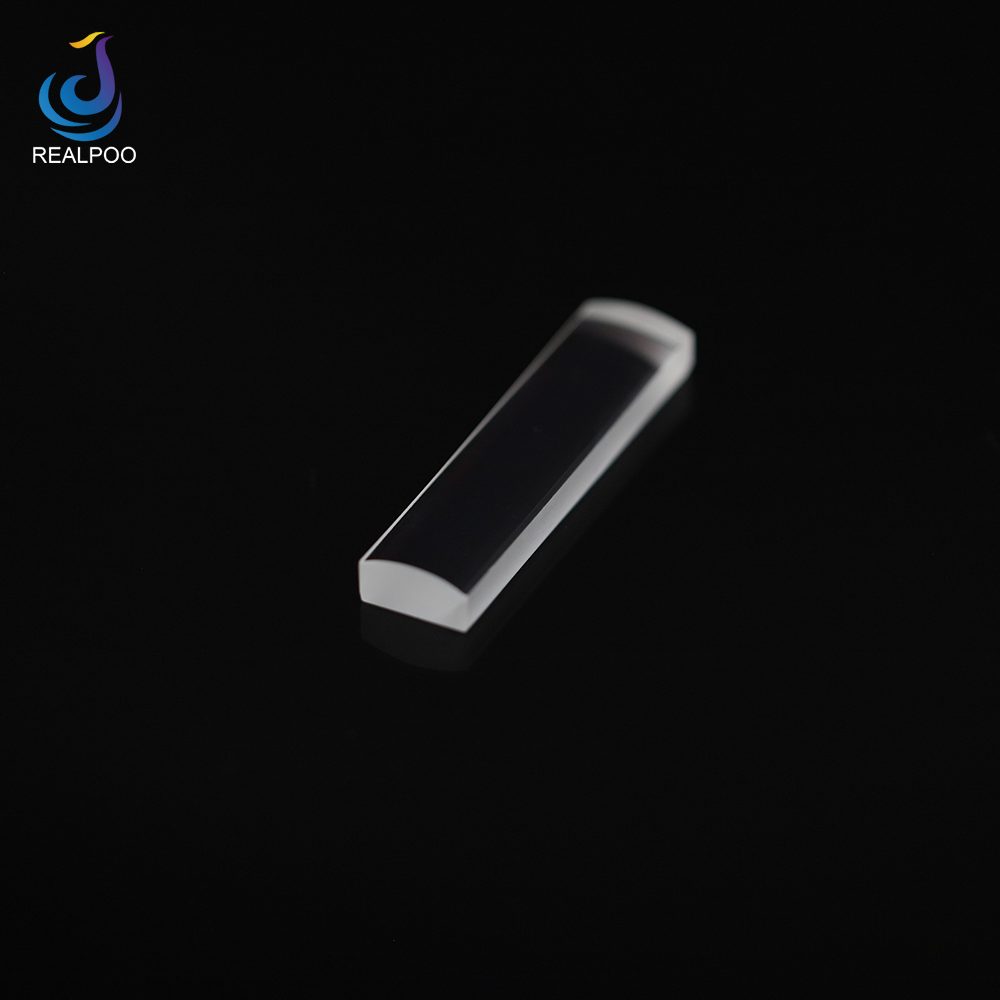

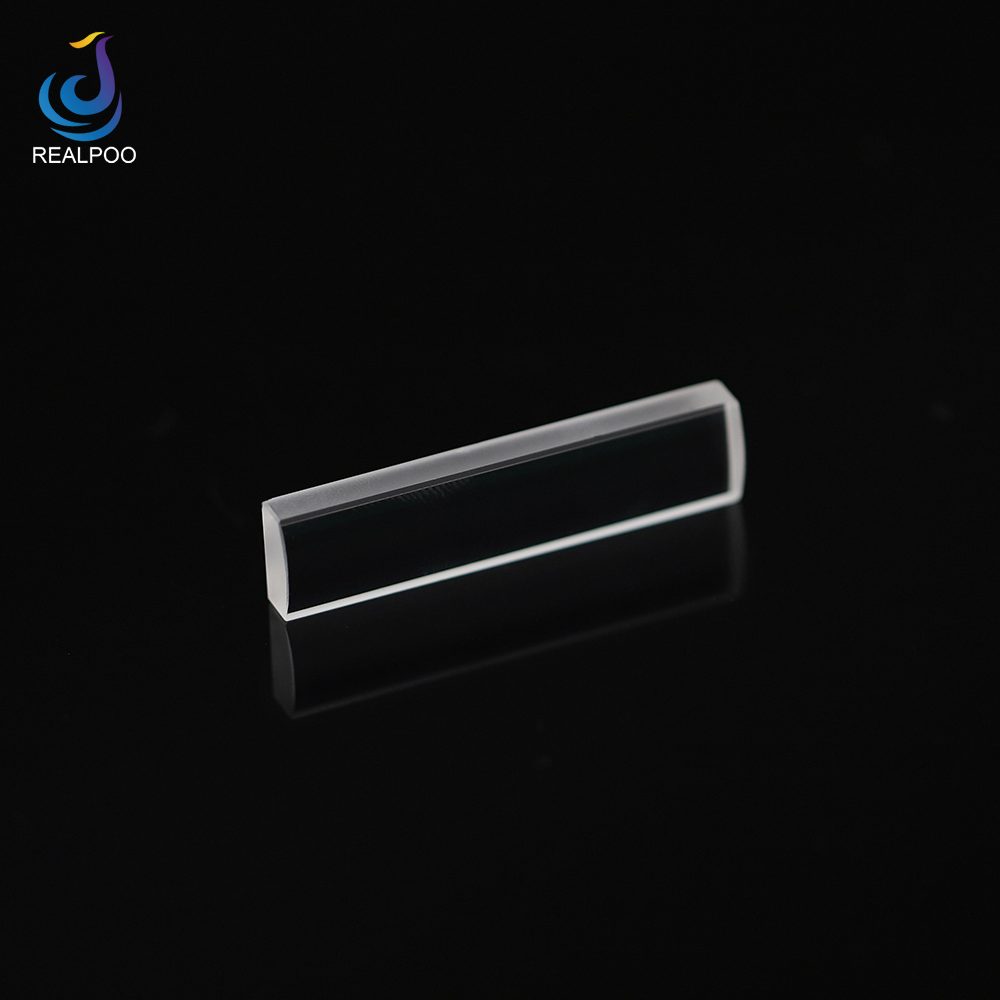

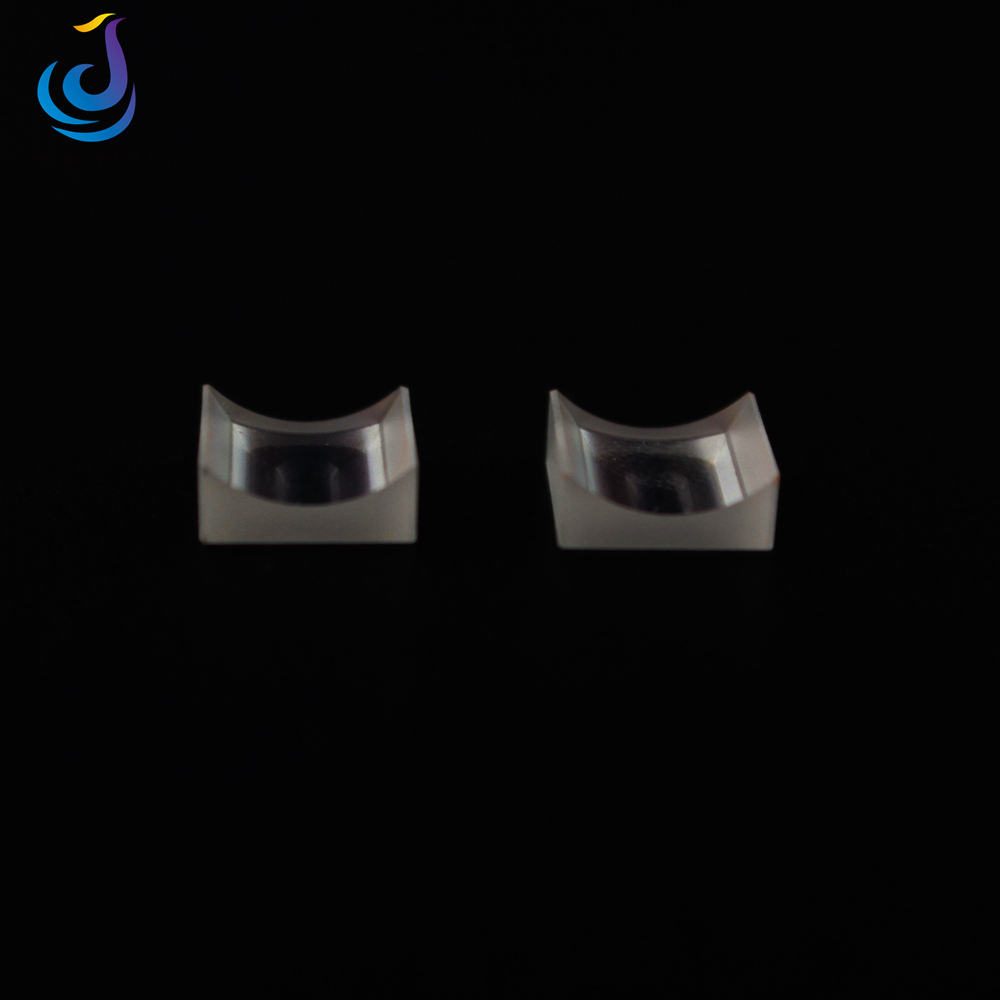

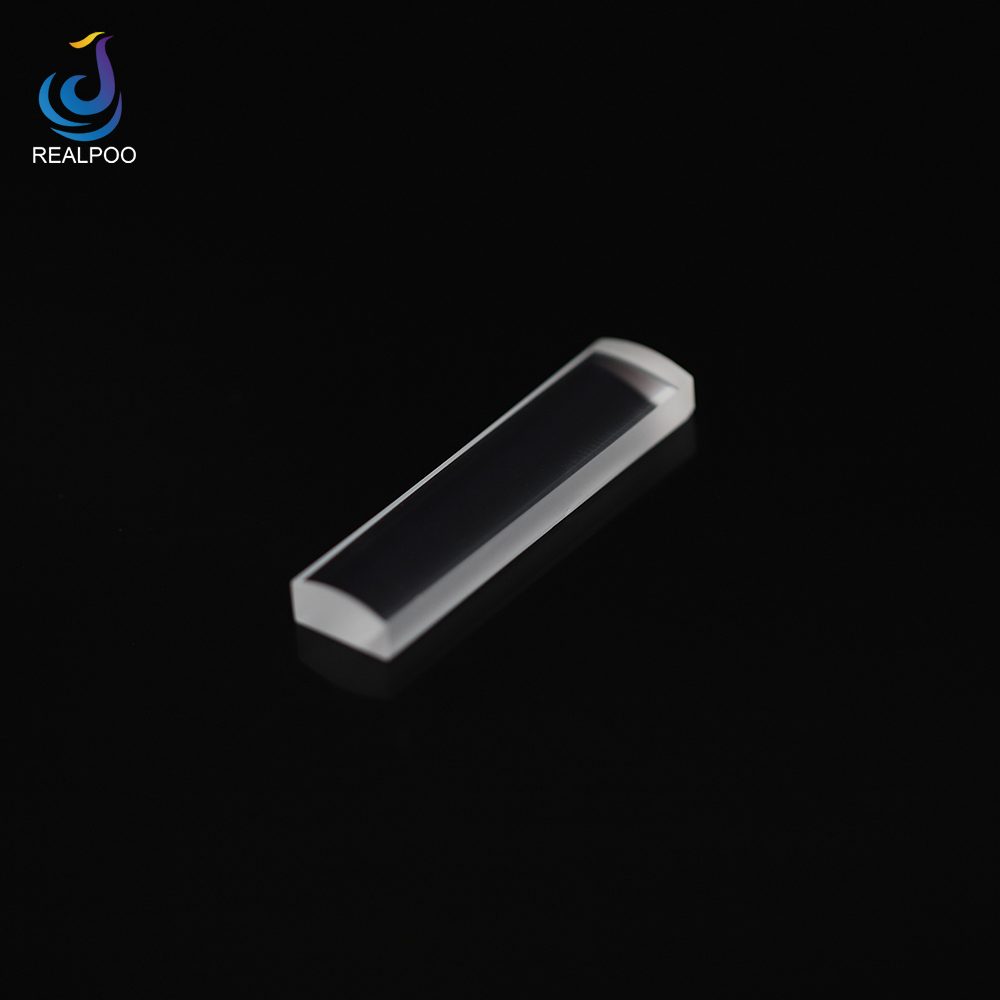

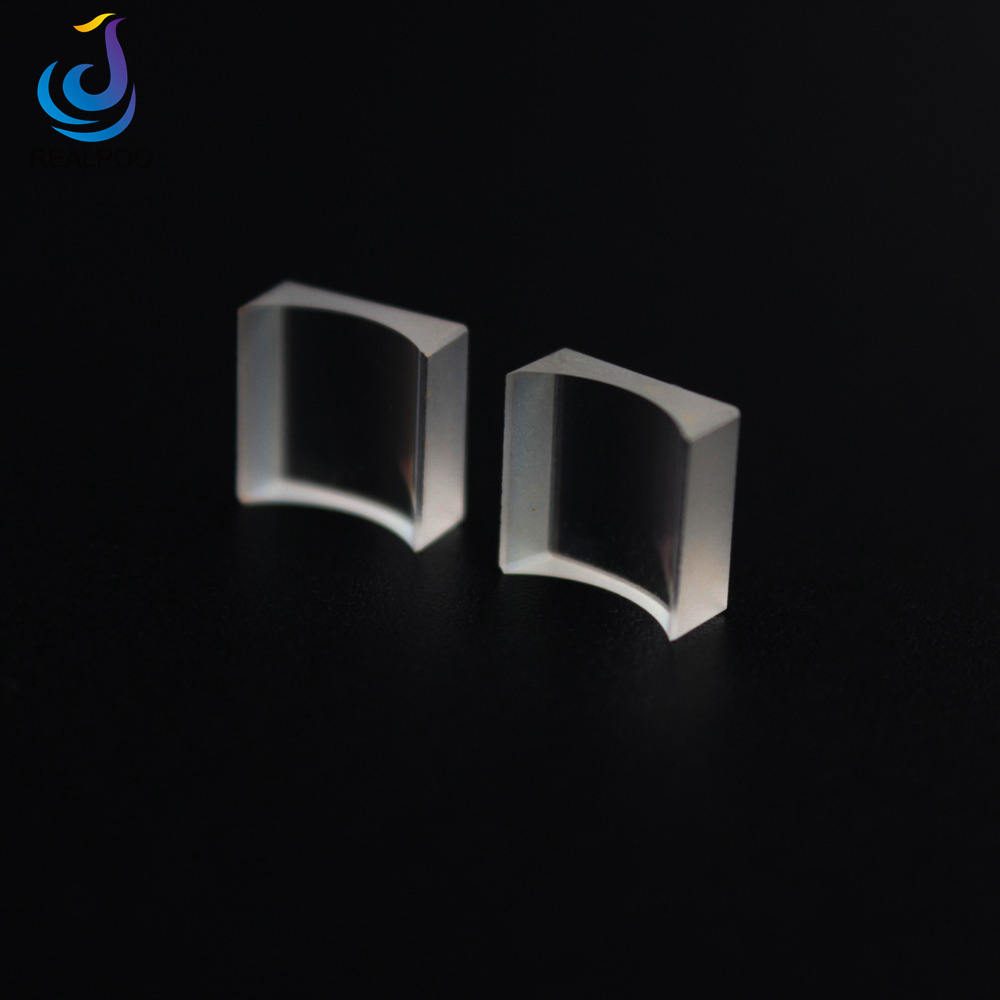

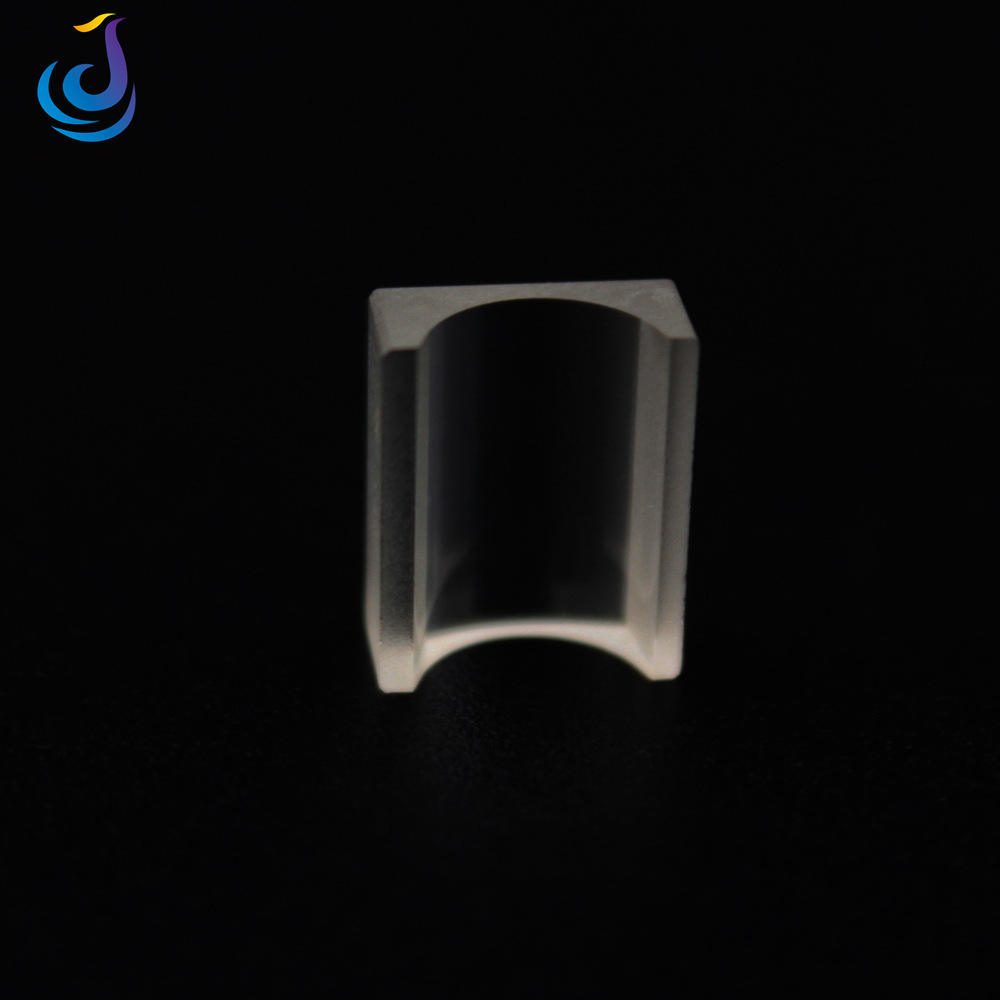

5x4 mm Fused Silica Cylindrical Lens, AR Coated

Explore our cylindrical lens made of fused silica, ideal for medical imaging and microscopy with customizable options.

Core attributes

Material: Fused Silica
Shape: Cylindrical
Diameter: 5 mm
Focal Length: 4 mm
Surface Quality: 80/50
Coating: anti-reflective (AR), uncoated
Transmission bands: NIR (0.7-1.7 μm), VIS (400-700 nm)

Product description

This cylindrical lens, made from fused silica, is designed for applications in medical imaging, microscopy, and semiconductor technologies. With a wavelength range of 0.7-1.7 μm and 400-700 nm, it effectively manages beam shaping, astigmatism correction, and laser projection. The lens features a diameter of 5.0 mm and a focal length of 4.0 mm, ensuring precision in optical systems. Its robust design allows for high-quality imaging and efficient optical performance in various applications.

Key Features

Wavelength range: 0.7-1.7 μm and 400-700 nm for versatile application fit.
Diameter of 5.0 mm with a size tolerance of +0,-0.1 mm for precise integration.
Clear aperture >90% ensures minimal light loss for enhanced imaging quality.
Surface quality of 80/50 for reliable performance in demanding environments.
OEM customization available to meet specific project requirements.

Available Sizes

Diameter x Focal Length (mm)
5 x 4

Applications

Medical, Microscopy, Projection, Semiconductor, Imaging

Specification Summary

Item	Value
Material	Fused Silica
Shape	Cylindrical
Diameter	5 mm
Focal Length	4 mm
Surface Quality	80/50
Coating	anti-reflective (AR), uncoated
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)

Full Specifications

Parameter	Value
Type	Cylindrical Lens
Customized Support	OEM
Warranty	A month
Weight	0.1
Size Tolerance	+0,-0.1mm
Clear Aperture	90%

FAQ

Can I get custom sizes for this lens?

Yes, the lens is available in variant sizes including 5.0 mm diameter and 4.0 mm thickness.

What is the minimum order quantity (MOQ)?

The MOQ is not specified, allowing flexibility in ordering.
