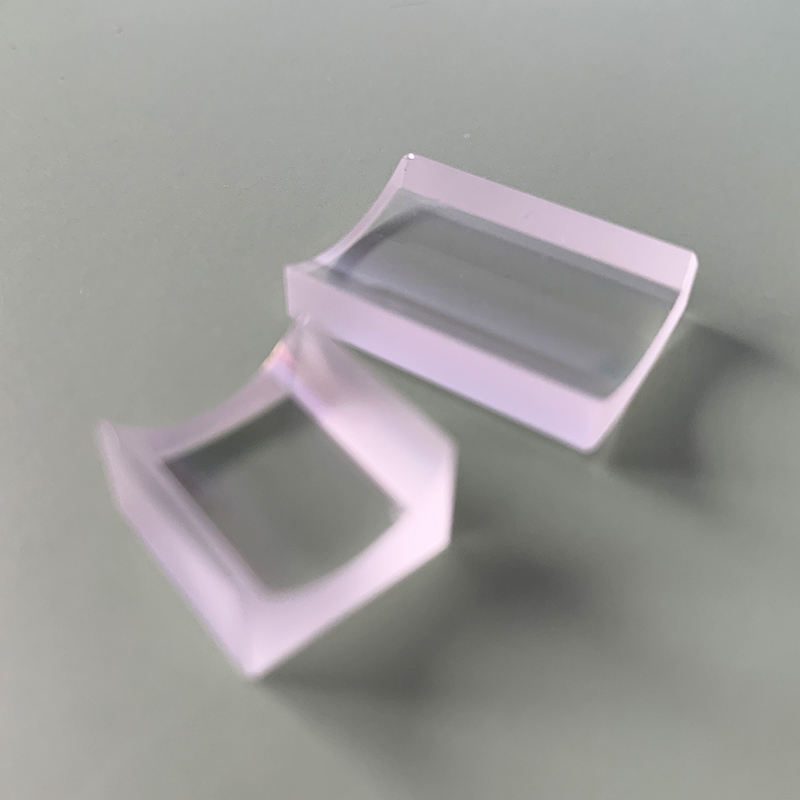

6.3x11 mm Fused Silica Cylindrical Lens, AR Coated

Product description

This cylindrical lens, made from Fused Silica, is designed to focus light into a line or modify the aspect ratio of images, making it ideal for applications in laser line generation and anamorphic beam shaping. With a focal length of 10.96 mm and a diameter of 6.35 mm, it offers precision in optical systems requiring specific light manipulation. The lens features a clear aperture covering 90% of its diameter and is available in both AR coated and uncoated variants, ensuring versatility for various applications.

Key Features

Focal Length: 10.96 mm for precise light focusing.
Diameter: 6.35 mm with a central clear aperture of 90% for optimal light transmission.
Centration tolerance of <3 arc min ensures high alignment accuracy.
Parallelism of 5 arc seconds enhances image quality.
Custom sizes available to fit specific application needs.

Available Sizes

Diameter x Focal Length (mm)
6.3 x 11

Specification Summary

Item	Value
Material	Fused Silica
Shape	Cylindrical
Diameter	6.3 mm
Focal Length	11 mm
Thickness	3 mm
Coating	anti-reflective (AR), uncoated

Full Specifications

Parameter	Value
Type	Cylindrical Lens
Customized Support	OEM
Warranty	3 months
Weight	0.02
Parallelism	5 arc seconds
Center Thickness	6.0 mm
Effective Focal Length	6.4 mm
Centration	<3 arc min
Clear Aperture	Central 90% of diameter

FAQ

Can I get custom sizes for this lens?

Yes, this lens is available in variant sizes ranging from 6.3 mm to 11.0 mm.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified, allowing for flexible purchasing.
