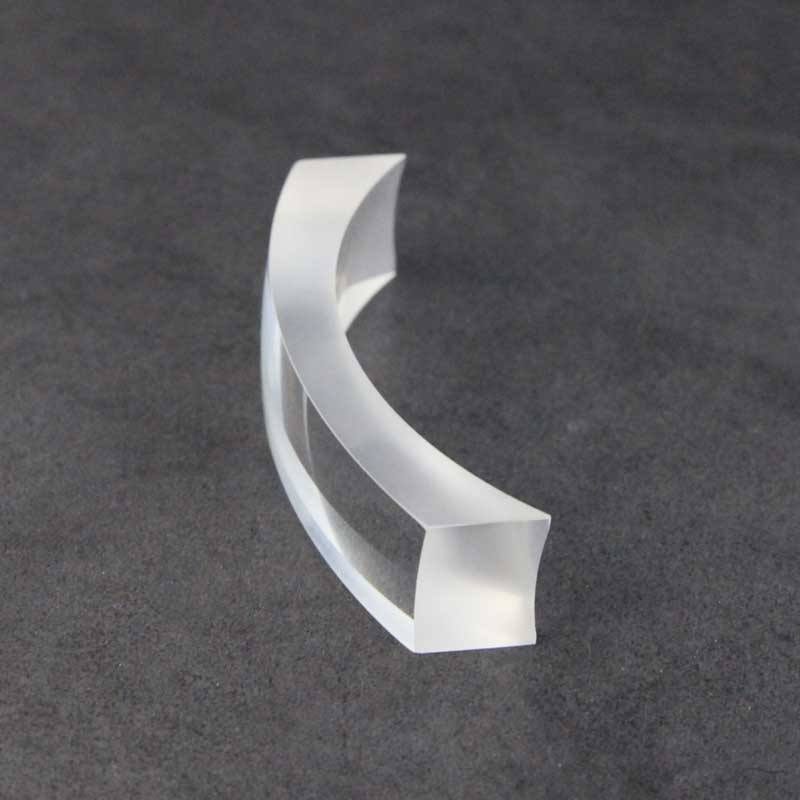

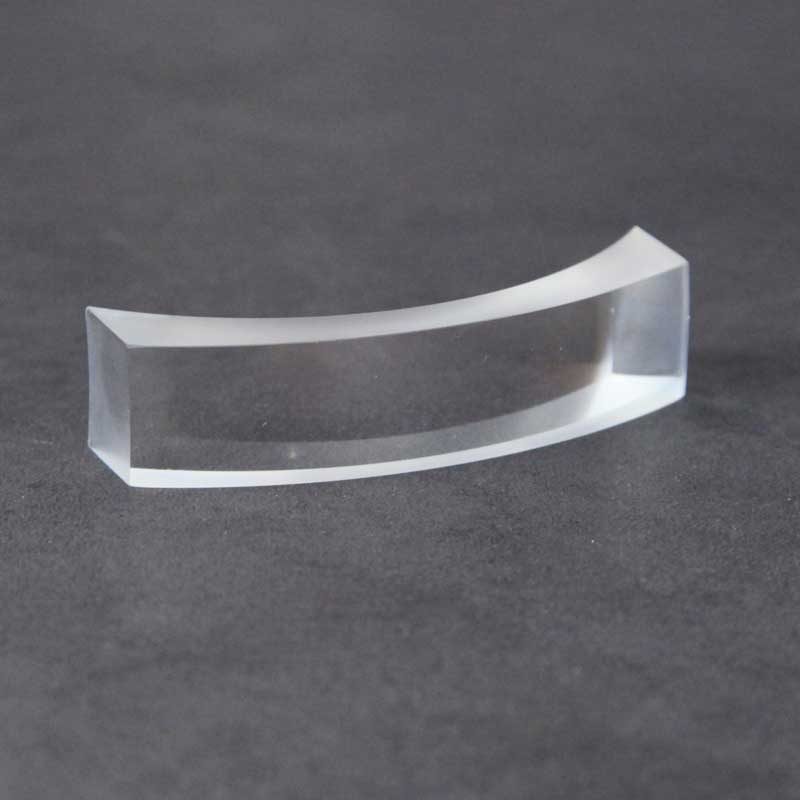

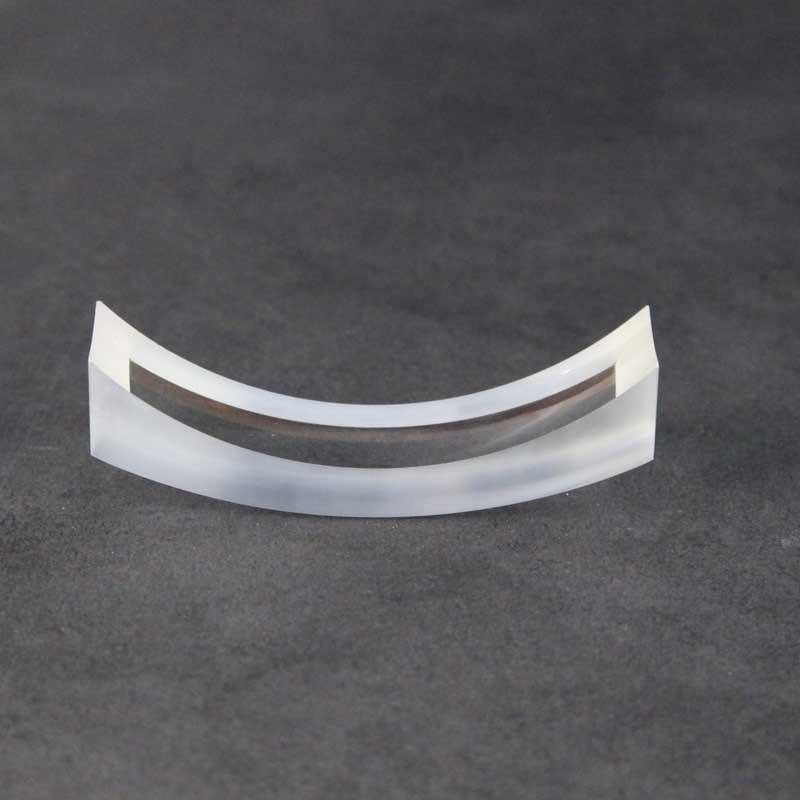

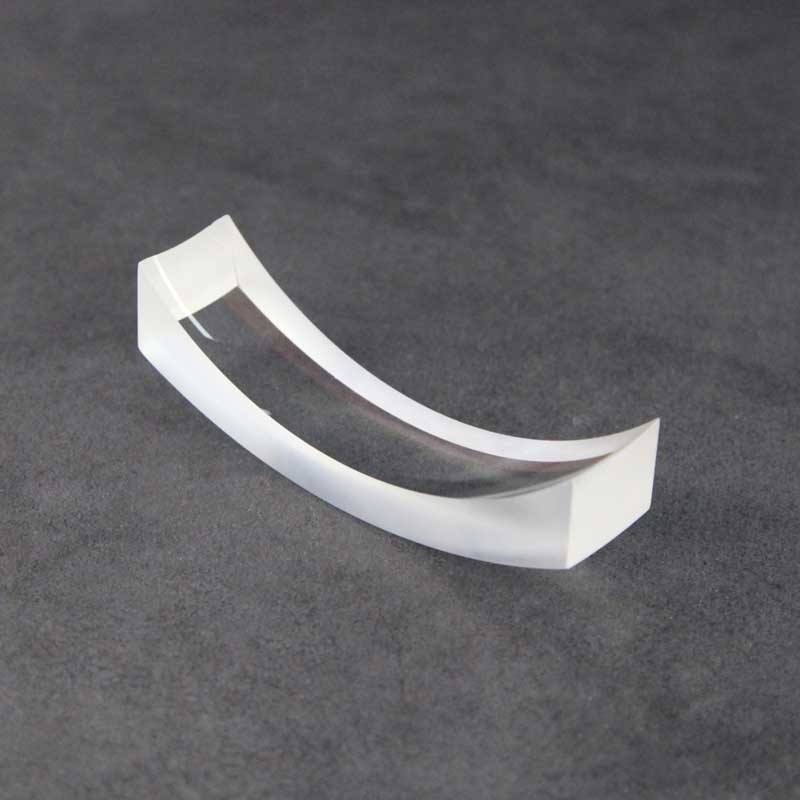

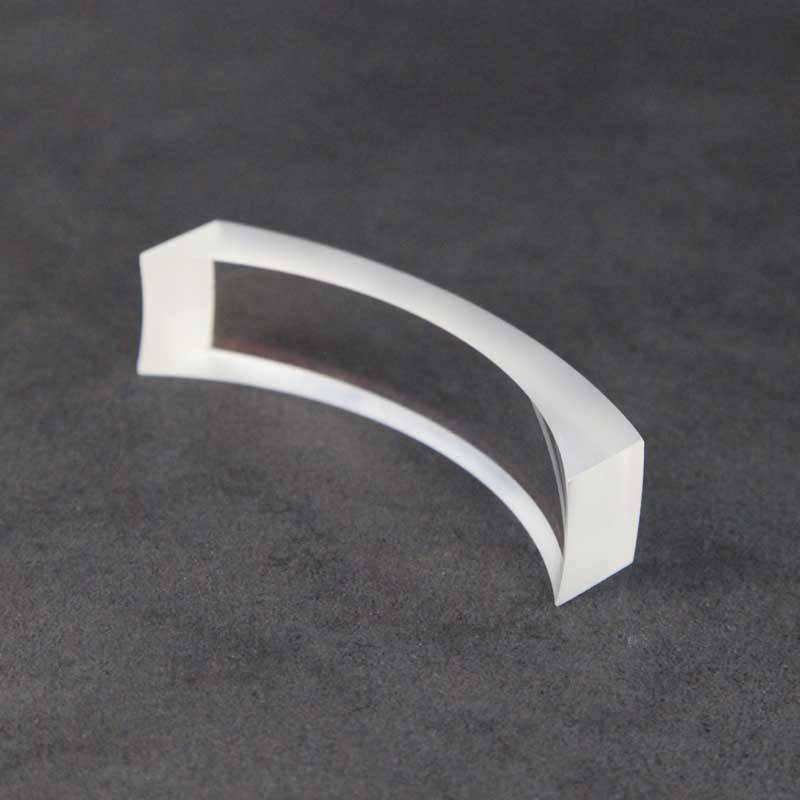

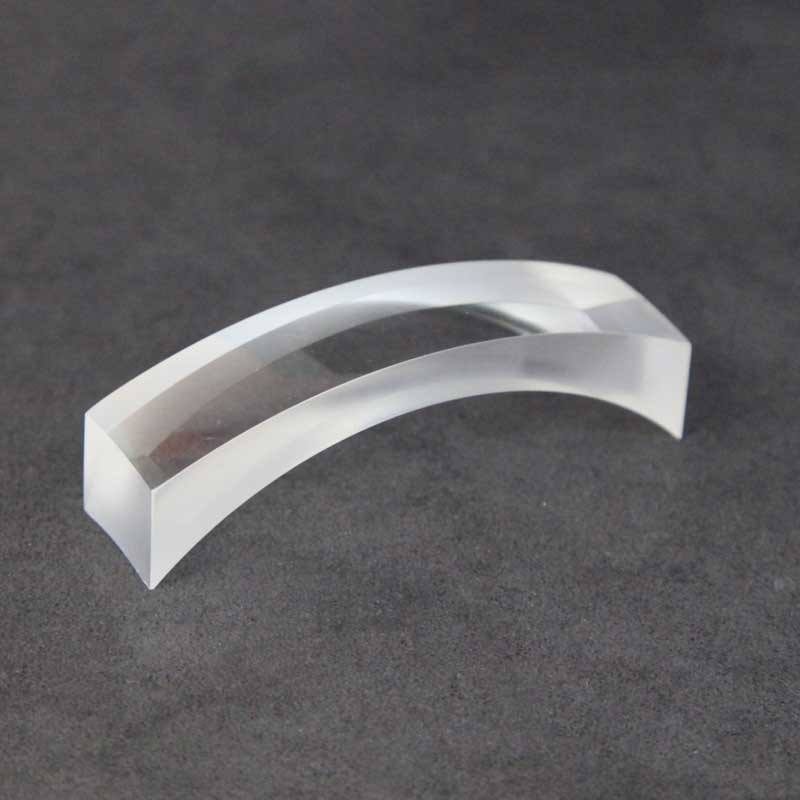

Custom Size Fused Silica Cylindrical Lens, AR Coated
Fused silica cylindrical lens for medical applications with customizable sizes and high optical performance.
Core attributes
- Material
- Fused Silica
- Shape
- Cylindrical
- Focal Length
- 3.9 mm
- Coating
- anti-reflective (AR), uncoated
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Cylindrical
- Focal Length
- 3.9 mm
- Coating
- anti-reflective (AR), uncoated
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product description
This cylindrical lens, made from fused silica, is ideal for medical applications requiring precise light manipulation. With a focal length of 3.9 mm, it efficiently focuses incoming light into a line or alters image aspect ratios. The lens operates across multiple bands, including 0.7-1.7 μm, making it versatile for various optical systems. Its high clear aperture of 95% ensures optimal light transmission, while options for anti-reflective coatings enhance performance across specified wavelengths.
Key Features
- Focal length of 3.9 mm for precise light focusing.
- Clear aperture of 95% ensures maximum light transmission.
- Available in both AR-coated and uncoated versions for flexibility.
- Flatness specification of 1/4 lambda for high optical performance.
- Customizable through OEM support for specific project needs.
Applications
Medical
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Cylindrical |
| Focal Length | 3.9 mm |
| Coating | anti-reflective (AR), uncoated |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Cylindrical Lens; cylindrical lenses |
| Customized Support | OEM |
| Weight | 0.5 |
| Length | 6mm-145mm |
| Color | Transparent |
| Flatness | 1/4lambda |
| Clear Aperture | 95% |
FAQ
Can I get custom sizes for this lens?
Yes, the lens can be customized through OEM support.
What are the tolerances for diameter and thickness?
Diameter tolerance is +0.0/-0.1 mm, and thickness tolerance is ±0.2 mm.
