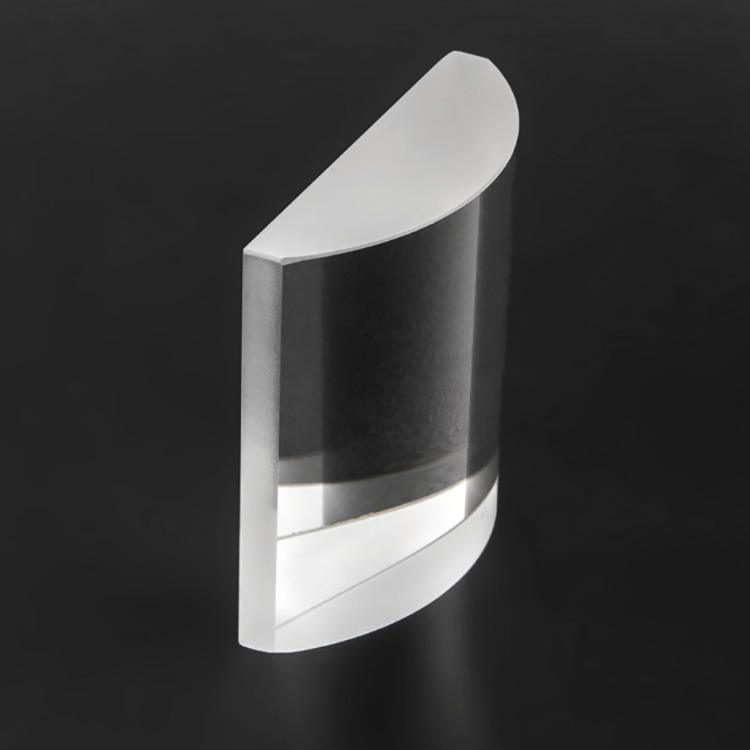

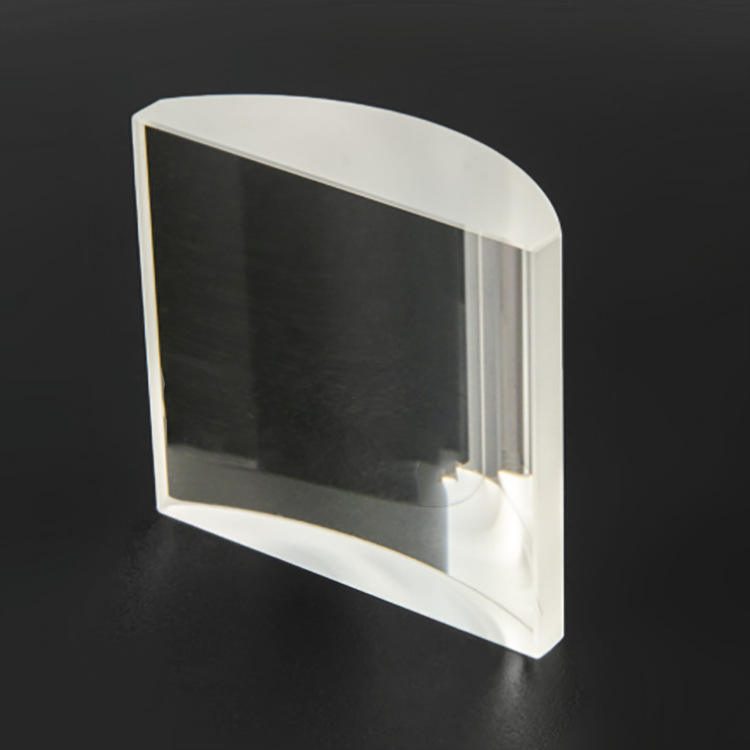

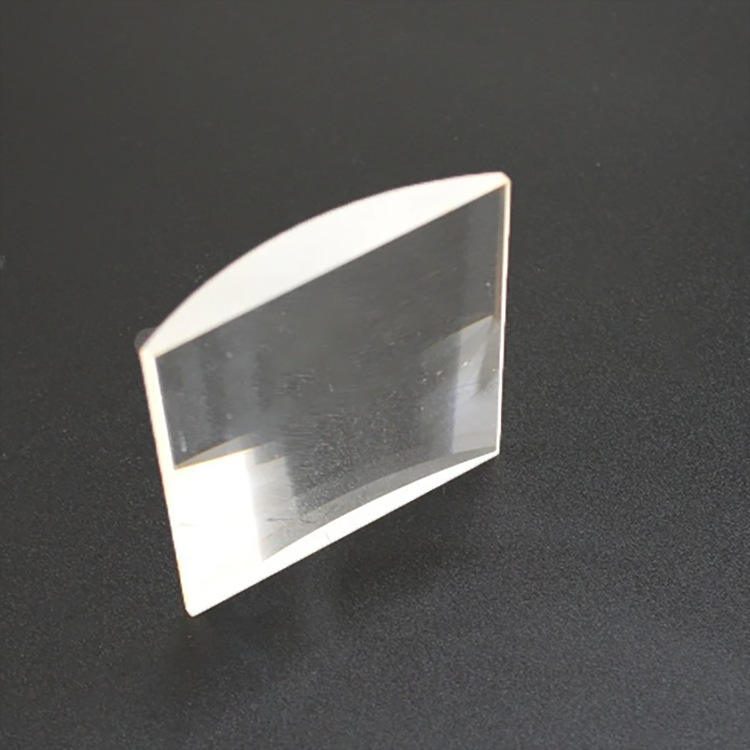

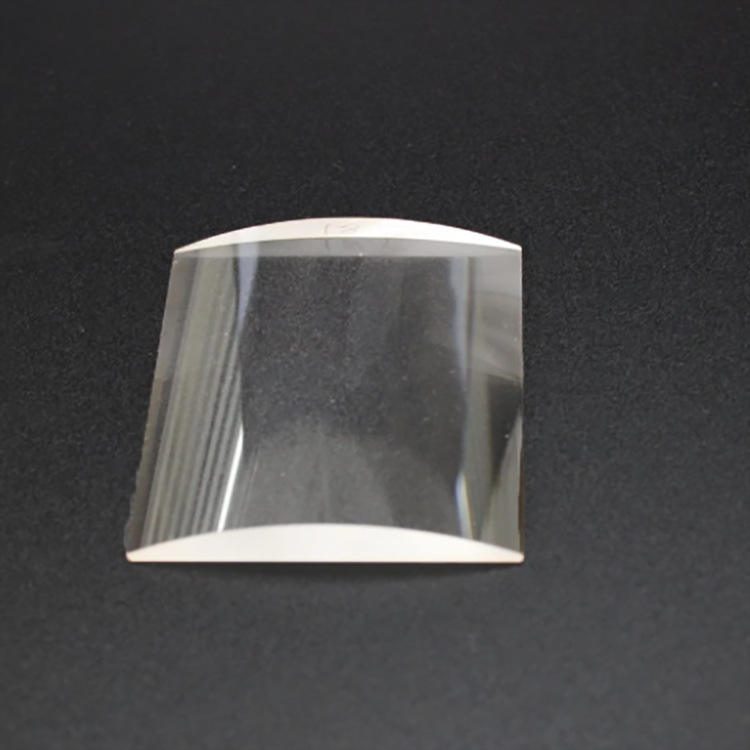

Custom Size Fused Silica Cylindrical Lens, AR Coated
Explore high-performance plano convex cylindrical lenses for IR imaging and LIDAR applications, customizable for your needs.
Core attributes
- Material
- Fused Silica
- Shape
- Cylindrical
- Focal Length
- 3.9 mm
- Coating
- anti-reflective (AR), high-reflective (HR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Cylindrical
- Focal Length
- 3.9 mm
- Coating
- anti-reflective (AR), high-reflective (HR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description
The plano convex cylindrical lens made from fused silica is designed to enhance optical performance across a wide wavelength range of 0.7-1.7 μm and 400-700 nm. With a focal length of 3.9 mm and high reflectivity of up to 99.5% in the visible spectrum, this lens is ideal for applications in IR imaging, LIDAR, and laser systems. Its customizable options make it suitable for various project specifications, ensuring precision and reliability in demanding environments.
Key Features
- High reflectivity up to 99.5% for visible light, enhancing optical efficiency.
- Focal length tolerance of ±1%, ensuring precision for critical applications.
- Customizable sizes and shapes available, meeting specific project needs.
- Flatness of 1/4 lambda, providing superior optical performance.
- Clear aperture of 95%, maximizing light transmission.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Cylindrical |
| Focal Length | 3.9 mm |
| Coating | anti-reflective (AR), high-reflective (HR) |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Plano convex cylindrical lens; cylindrical lenses |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Weight | 0.3 |
| Length | 6mm-145mm |
| Color | Transparent |
| Flatness | 1/4lambda |
| Clear Aperture | 95% |
FAQ
What is the minimum order quantity (MOQ) for these lenses?
The minimum order quantity (MOQ) is not specified.
Can these lenses be customized to specific dimensions?
Yes, the lenses are available in various sizes and shapes for customization.
