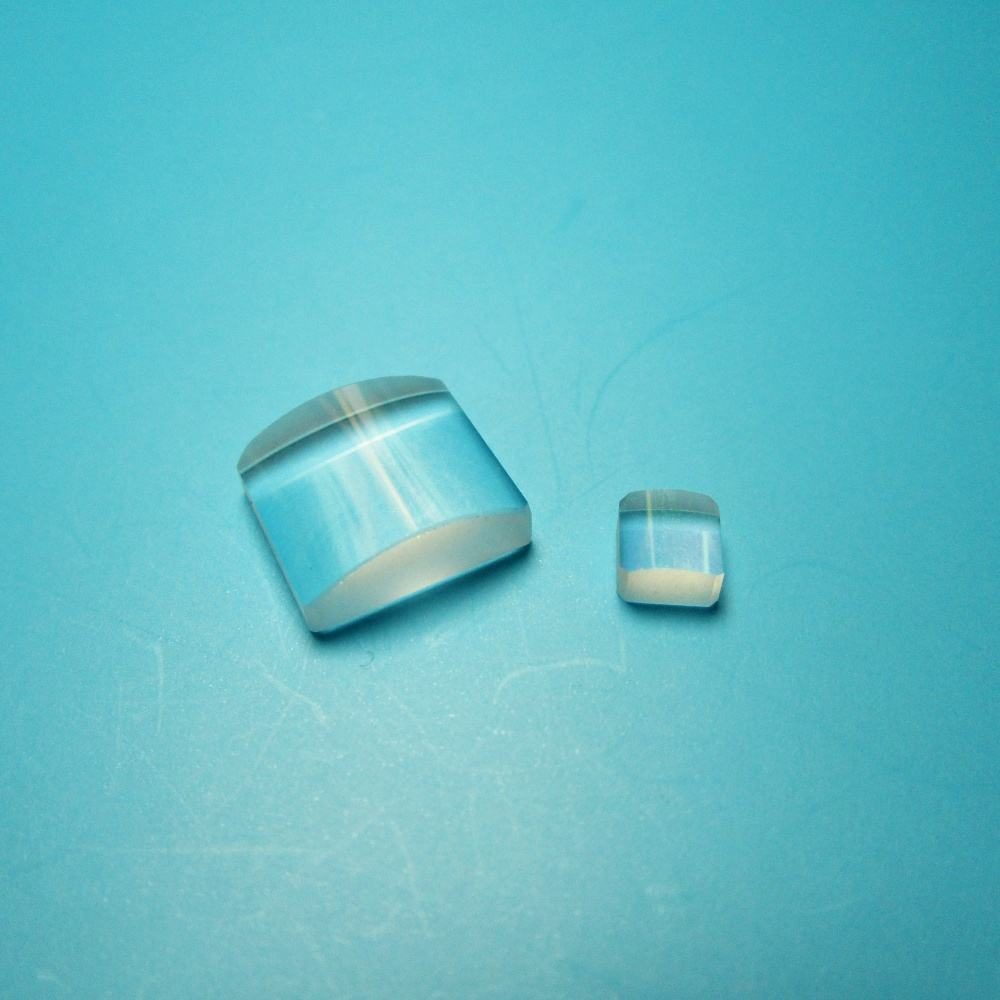

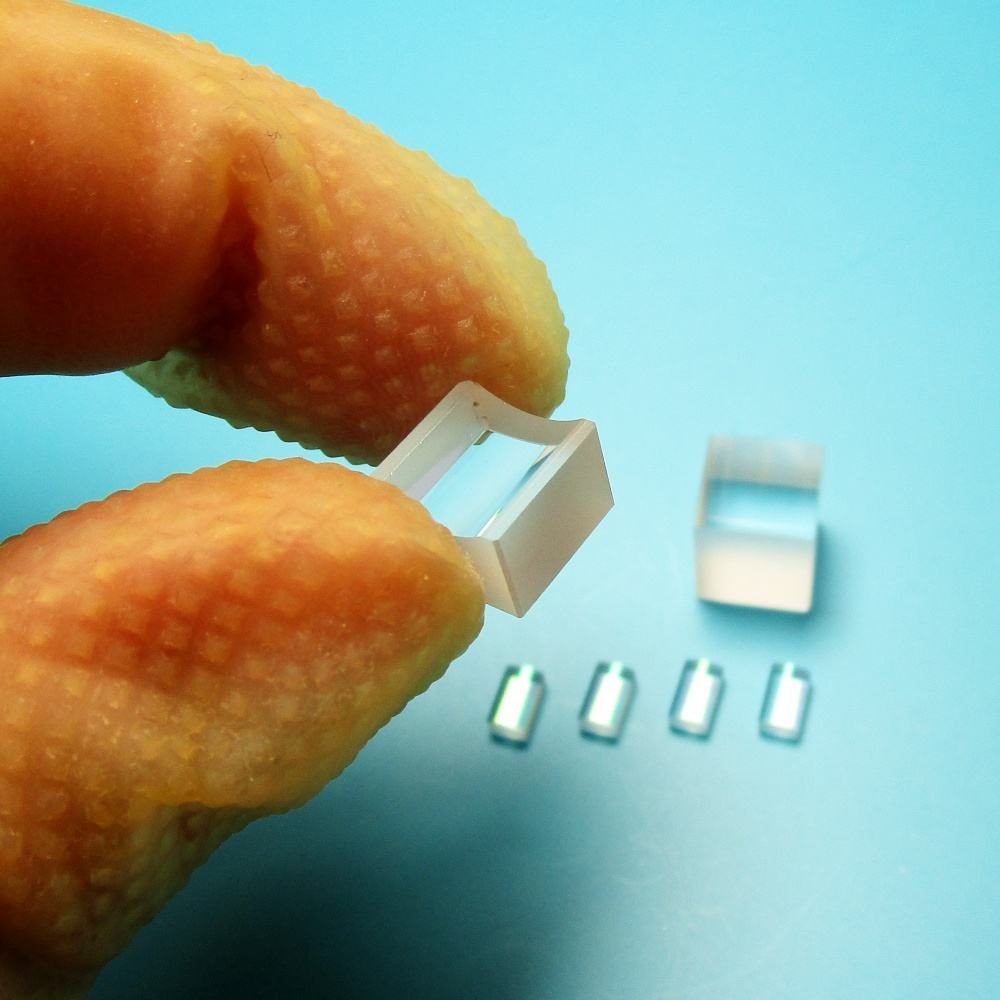

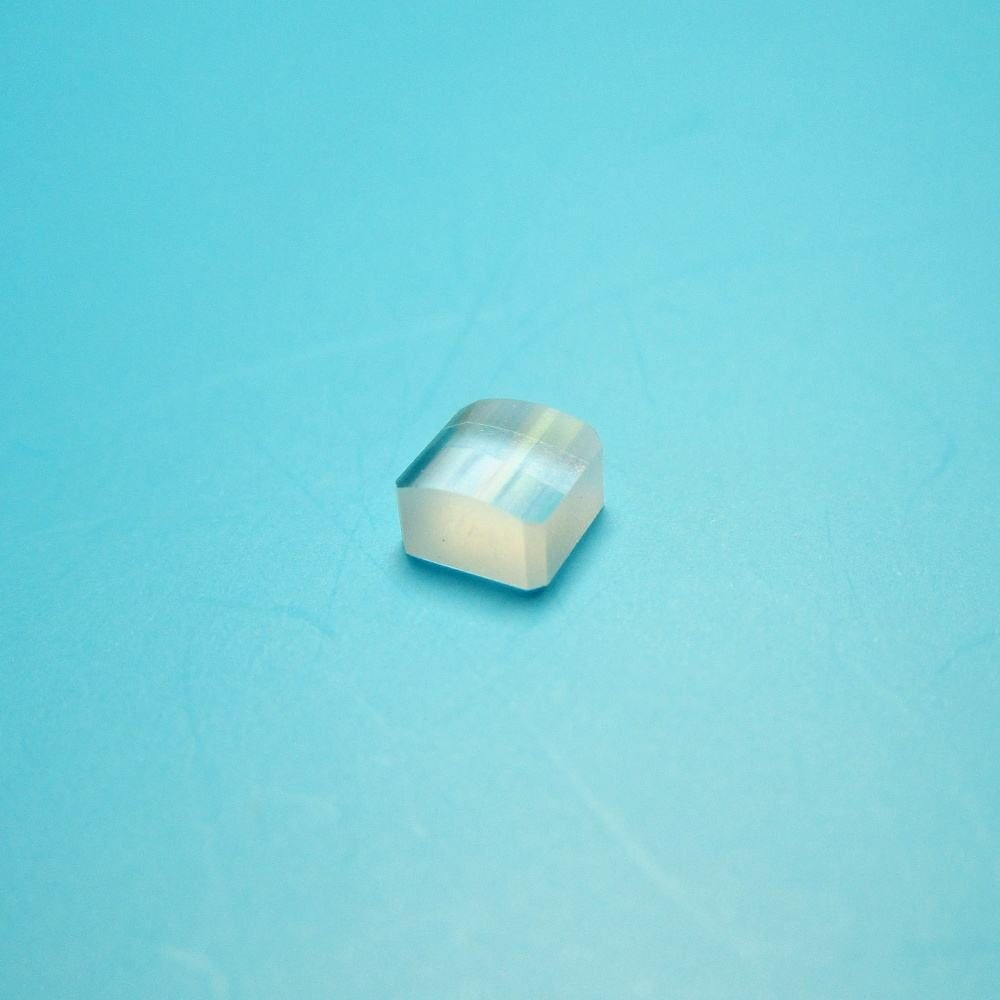

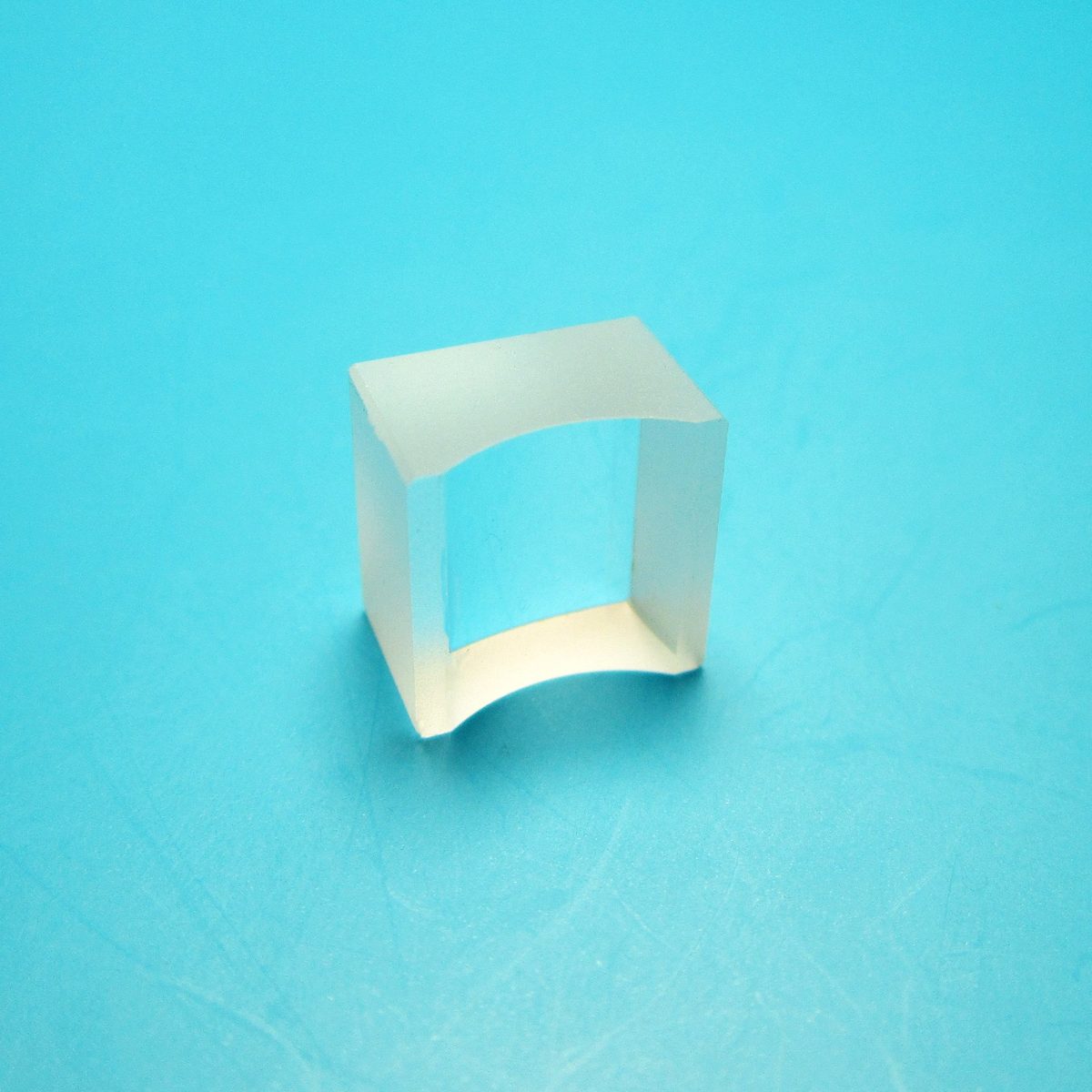

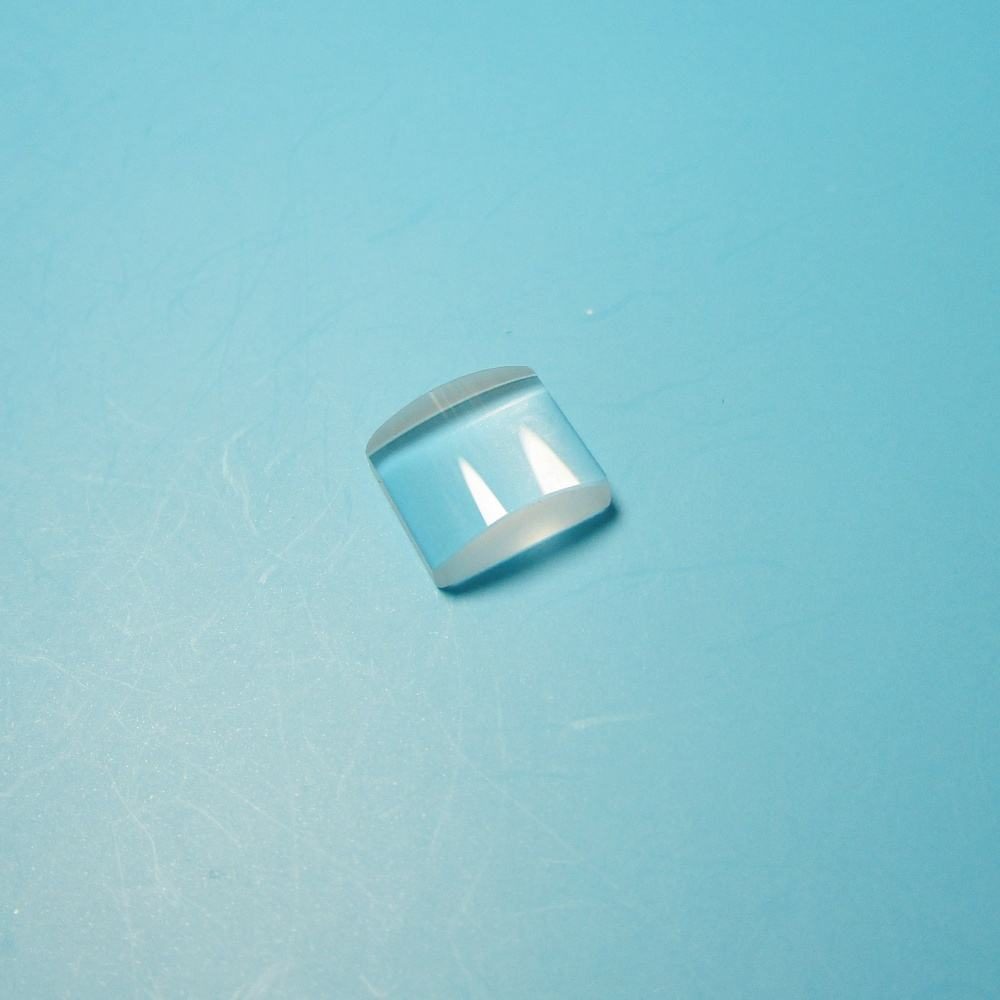

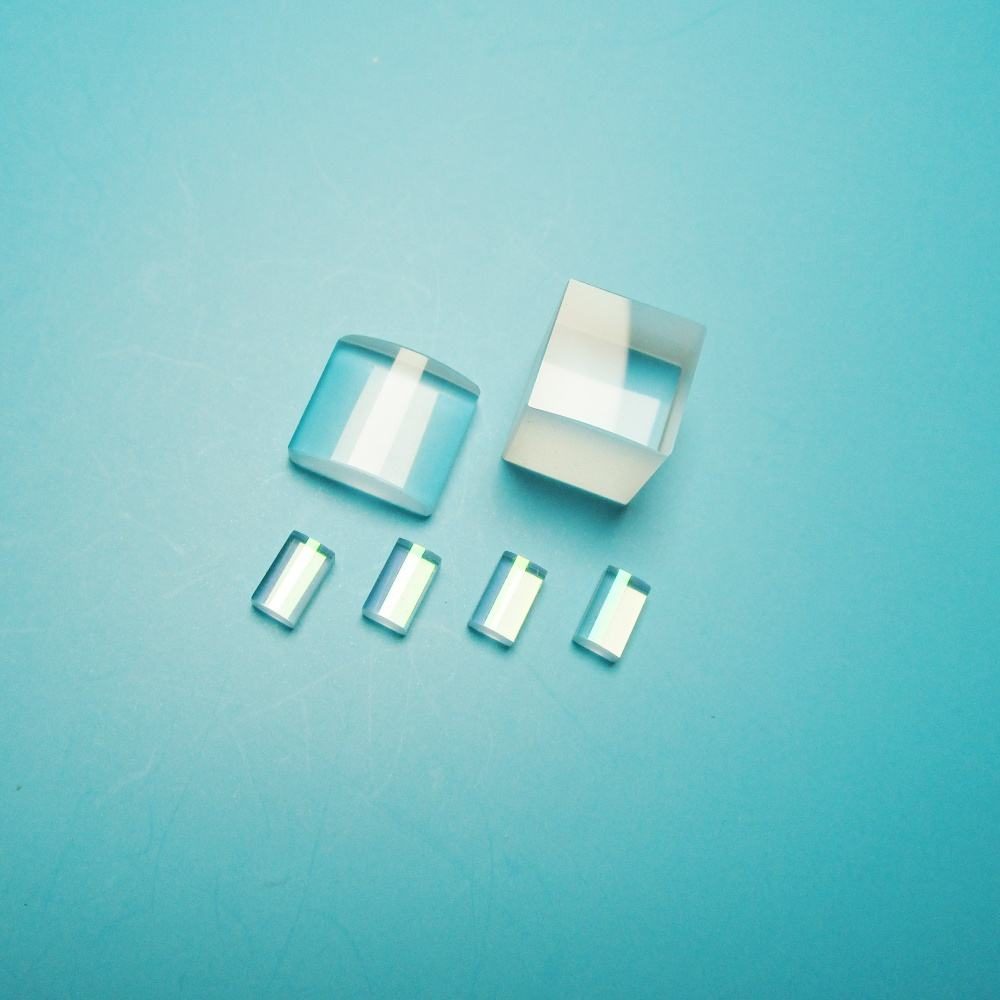

Custom Size Fused Silica Cylindrical Lens, AR Coated

Product description

This concave lens made from precision-fused silica is designed for applications requiring high clarity and durability across a wavelength range of 0.7-1.7 μm and 400-700 nm. Its anti-reflective coating minimizes glare and enhances light transmission, making it ideal for optical equipment. The lens supports custom sizes, ensuring compatibility with various R&D and manufacturing needs while maintaining high surface quality of 20/10.

Key Features

Wavelength Range: 0.7-1.7 μm and 400-700 nm for versatile application fit.
Surface Quality: 20/10 ensures high clarity and performance.
Custom Sizes: Dimensions can range from 1mm to 300mm with a tolerance of ±0.03.
OEM/ODM Support: Flexible customization options to meet specific project requirements.
Lightweight Design: Weighs only 0.01, ideal for compact applications.

Specification Summary

Item	Value
Material	Fused Silica
Shape	Cylindrical
Focal Length	5 mm
Surface Quality	20/10
Coating	anti-reflective (AR)
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)

Full Specifications

Parameter	Value
Type	Concave Lens
Customized Support	OEM, ODM
Warranty	3 months
Weight	0.01
Dimension	1mm-300mm
Dimension Tolerance	±0.03

FAQ

What is the minimum order quantity (MOQ) for this lens?

The MOQ is not specified, allowing for flexible ordering.

Can I get this lens in custom sizes?

Yes, the lens can be customized within dimensions of 1mm to 300mm.
