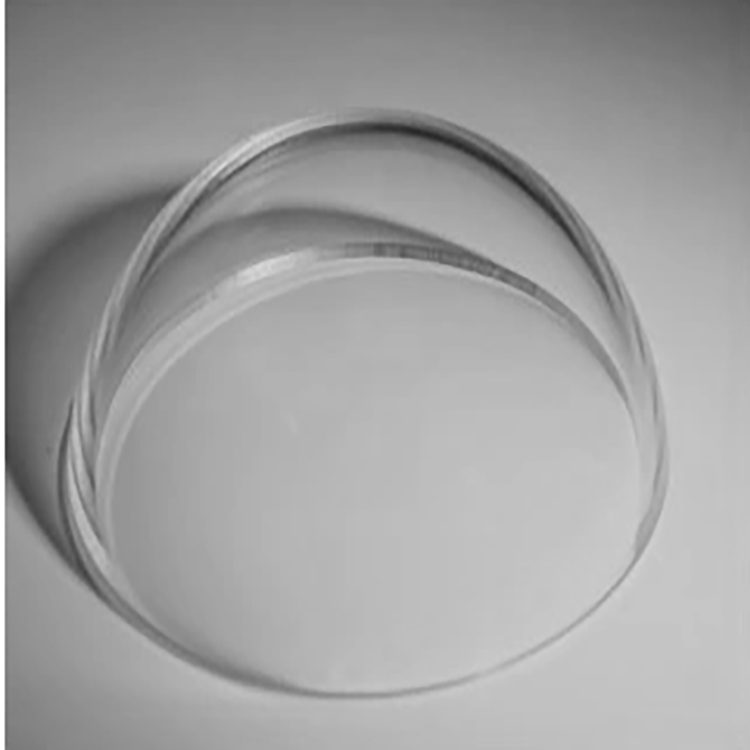

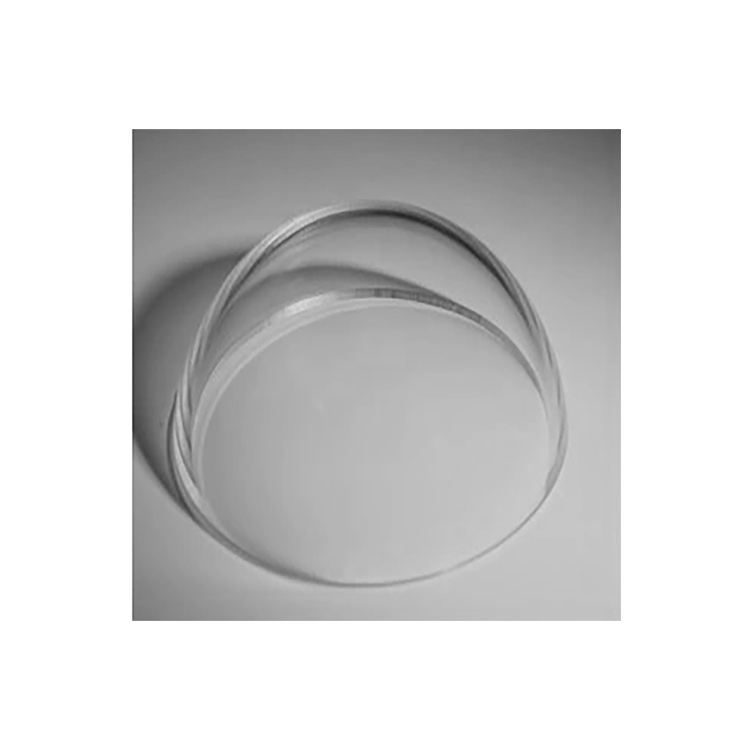

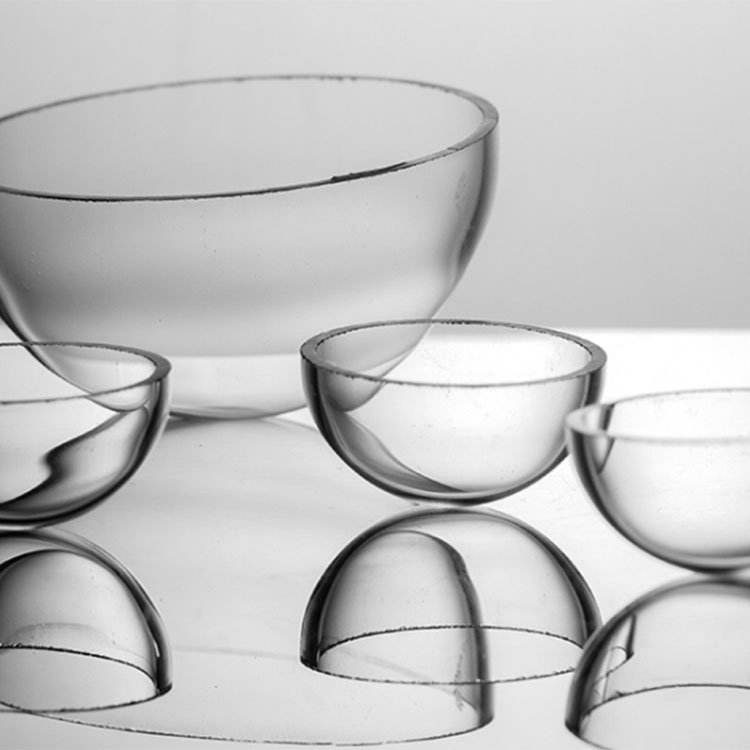

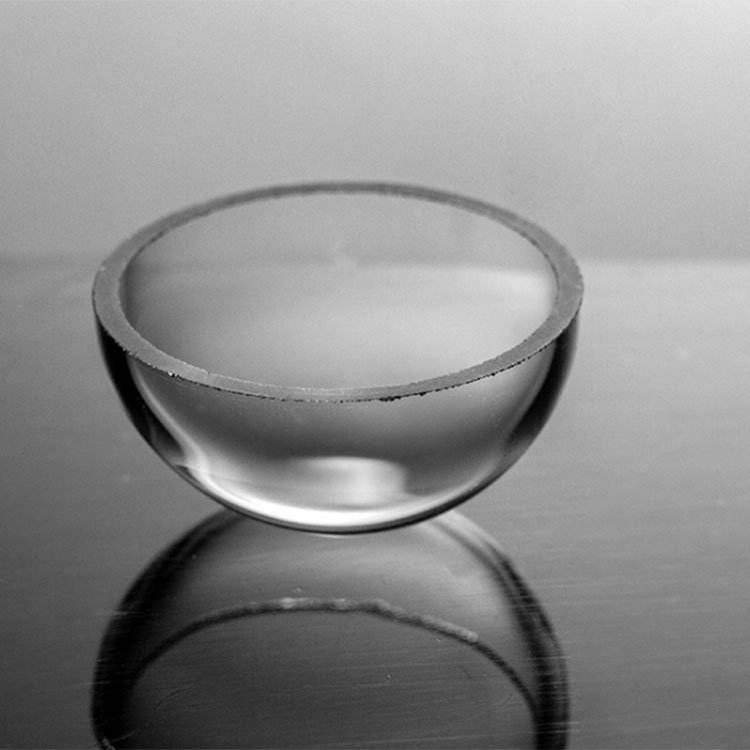

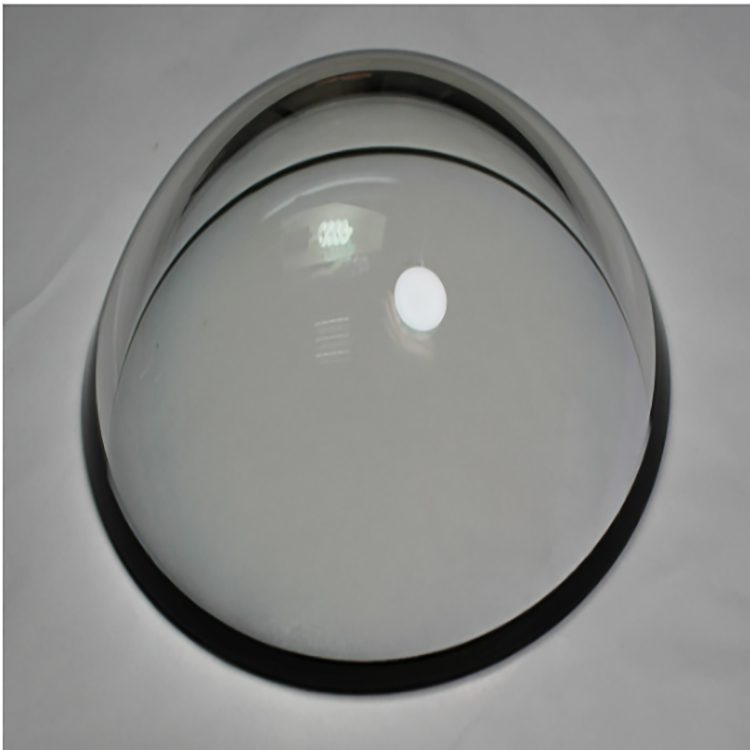

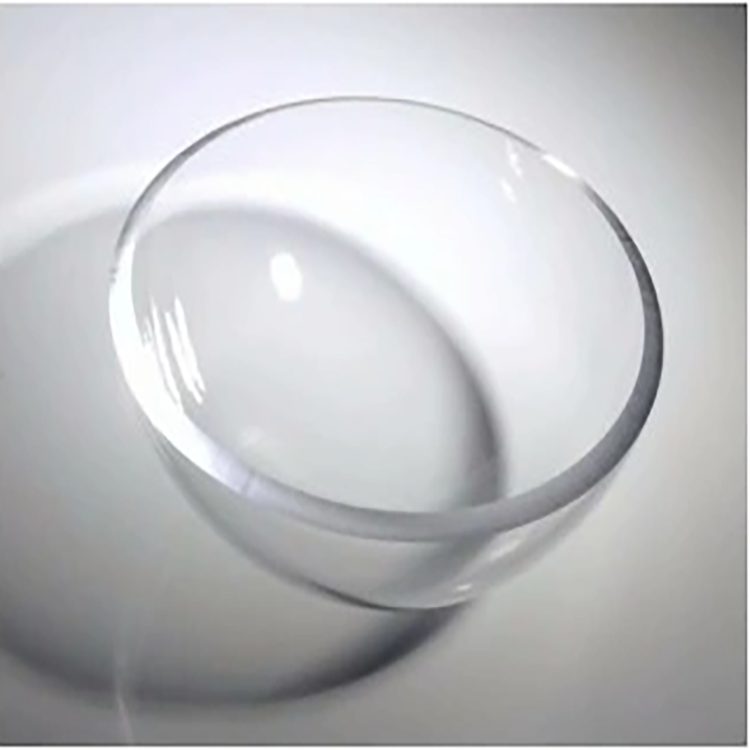

5 mm Fused Silica Dome Lens, AR Coated
Fused silica dome lens for imaging applications, 400-700 nm, customizable sizes, and high precision with 60/40 surface quality.
Core attributes
- Material
- Fused Silica
- Shape
- Dome
- Diameter
- 5 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Dome
- Diameter
- 5 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm)
Product description
This dome lens made from fused silica is ideal for imaging applications within the 400-700 nm wavelength range. Its excellent surface quality of 60/40 and low tolerance of 0.01/-0.1 mm ensure high precision, making it suitable for demanding optical systems. With a diameter range from 5.0 mm to 300.0 mm, it can accommodate various design requirements, while the anti-reflective coating enhances transmittance for improved image clarity.
Key Features
- Diameter range from 5.0 mm to 300.0 mm for versatile application fit.
- Surface quality of 60/40 for high precision imaging.
- Low tolerance of 0.01/-0.1 mm ensures batch consistency.
- AR coating enhances transmittance for superior optical performance.
- Customizable options available through OEM and ODM support.
Applications
Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Dome |
| Diameter | 5 mm |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | dome lens |
| Customized Support | OEM, ODM |
| Warranty | 1 years |
| Weight | 0.5kg |
| Bevel | 0.2mmx45 |
| Tolerance | 0.01/-0.1mm |
| Surface Flatness | 1/4@633nm |
| Parallel | 30 Arc Sec |
FAQ
What is the minimum order quantity (MOQ)?
The minimum order quantity (MOQ) is not specified.
Can I get custom sizes for this lens?
Yes, customizable options are available through OEM and ODM support.
