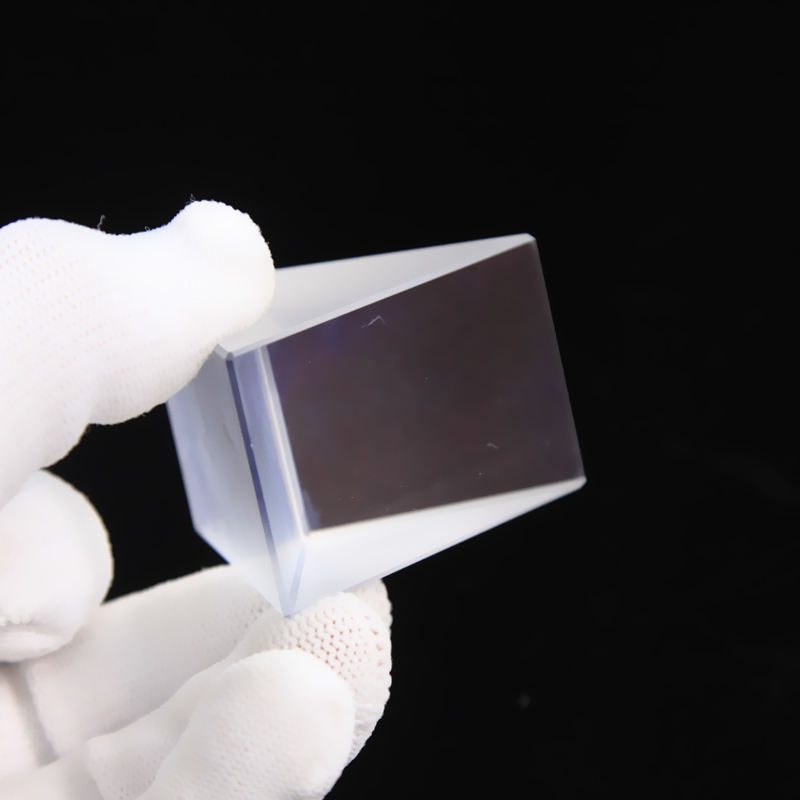

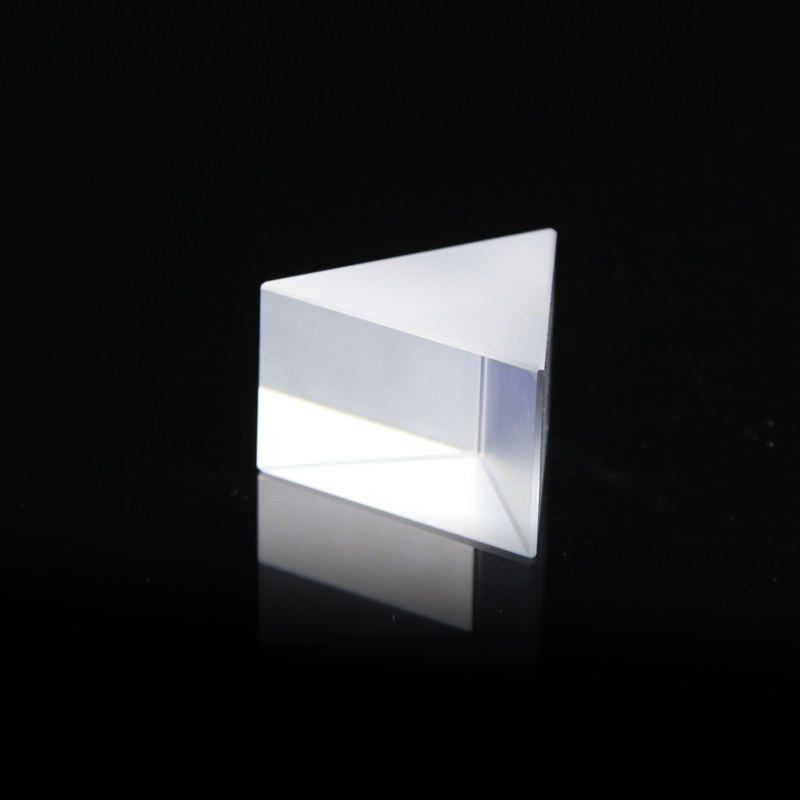

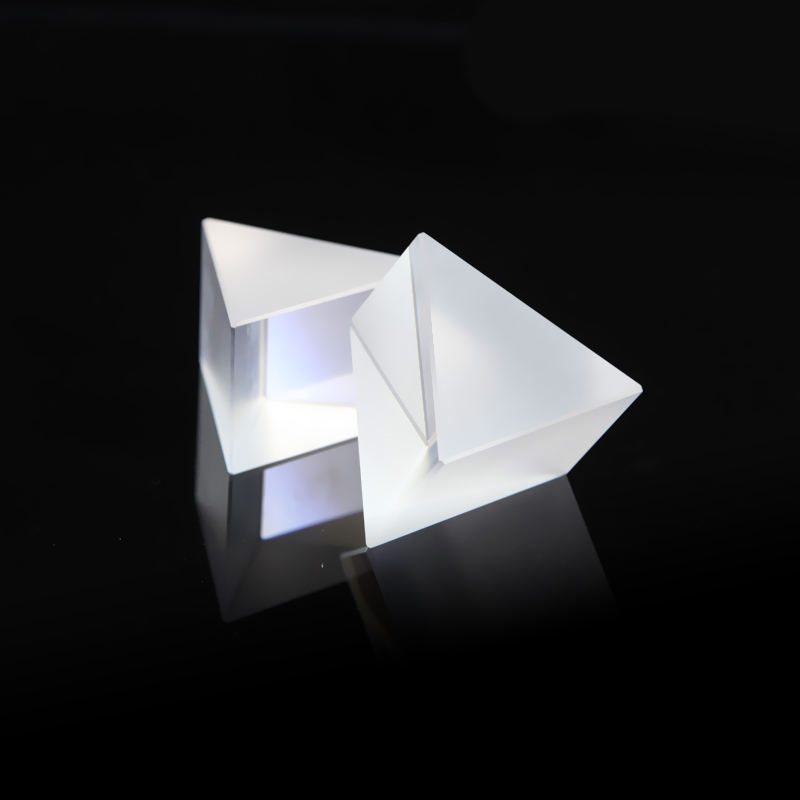

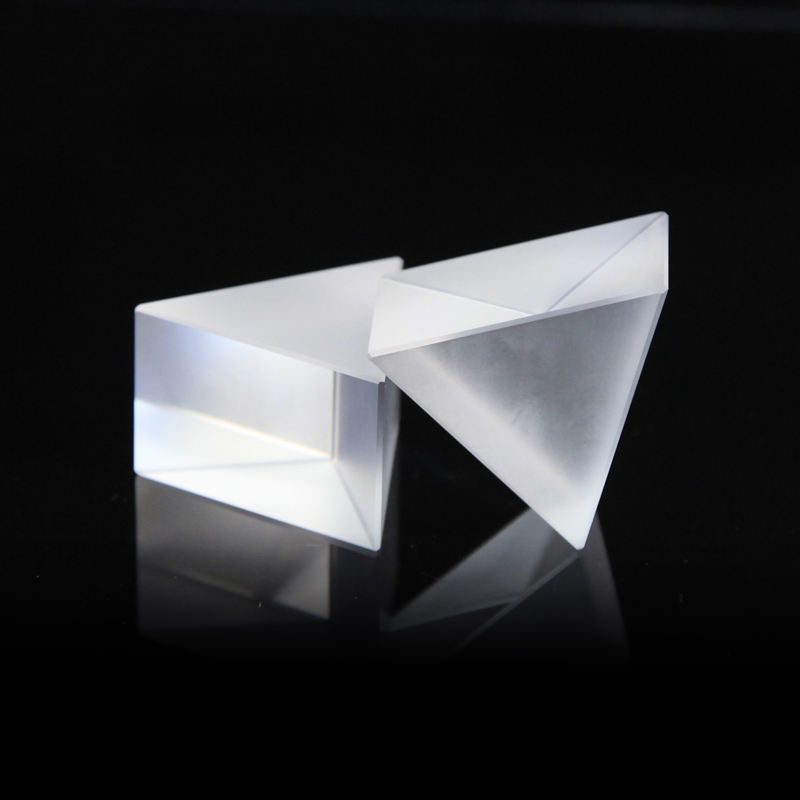

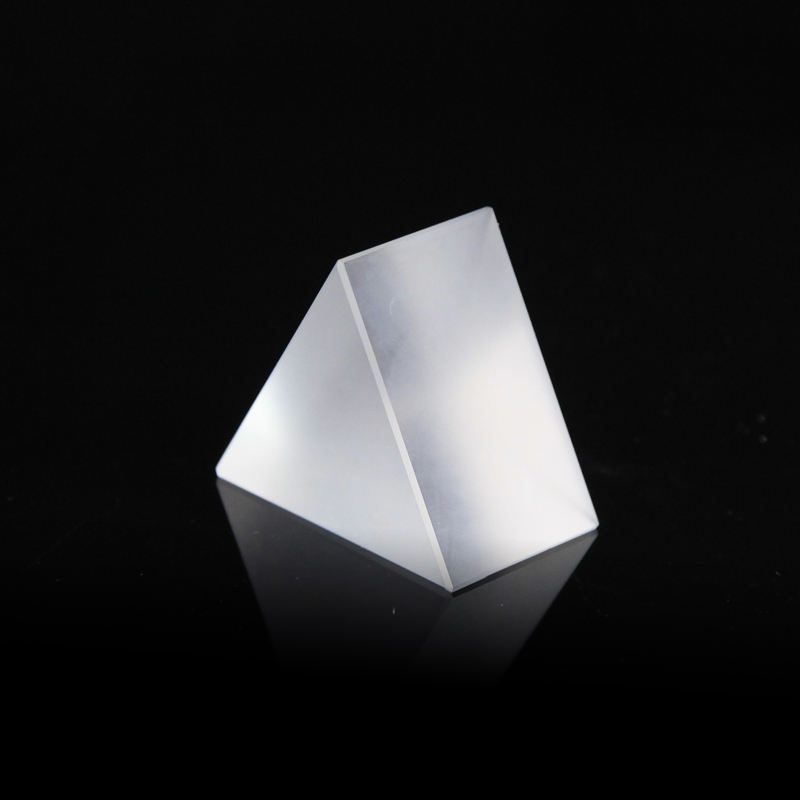

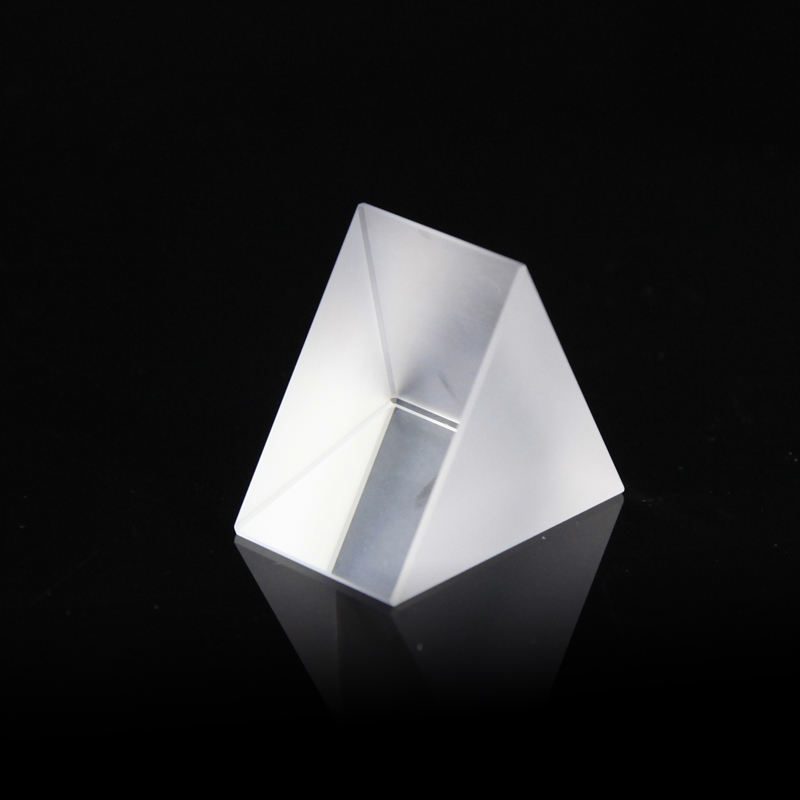

13 mm Fused Silica Equilateral Optical Prism
Equilateral triangular prism in fused silica for precise optical applications, customizable with strict tolerances.
Core attributes
- Material
- Fused Silica
- Shape
- Equilateral
- Size
- 13 mm
- Thickness
- Custom
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Equilateral
- Size
- 13 mm
- Thickness
- Custom
Product description
The equilateral triangular prism made from fused silica is ideal for applications requiring precise light manipulation. With a size of 13.0 mm on each side, it is suitable for various optical paths. Its design allows for accurate beam deviation, making it a reliable choice for R&D and optical system integration. The prism supports OEM, ODM, and OBM customization, ensuring adaptability to specific project needs.
Key Features
- Equilateral design facilitates uniform beam splitting and manipulation.
- Size tolerance of 0.0/-0.01 mm ensures precision fitting in optical assemblies.
- Angle tolerance of +/-3’ provides reliable beam deviation accuracy.
- Dimension tolerance of 0/-0.05 mm supports consistent performance across batches.
- Customizable through OEM, ODM, and OBM options for tailored solutions.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Equilateral |
| Size | 13 mm |
| Thickness | Custom |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | Triangular Prism |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Materail | optical glass |
| Size Tolerance | 0.0/-0.01mm |
| Angle Tolerance | +/-3' |
| Dimension Tolerance | 0/-0.05mm |
FAQ
Can I get custom sizes?
Yes, the prism supports OEM, ODM, and OBM customization for tailored dimensions.
What are the tolerances for this prism?
The size tolerance is 0.0/-0.01 mm, angle tolerance is +/-3’, and dimension tolerance is 0/-0.05 mm.
