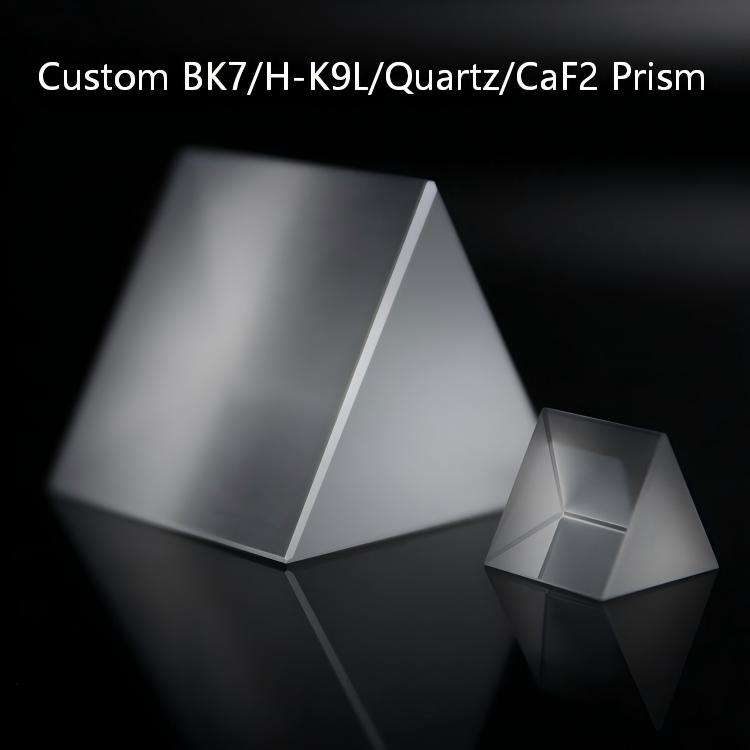

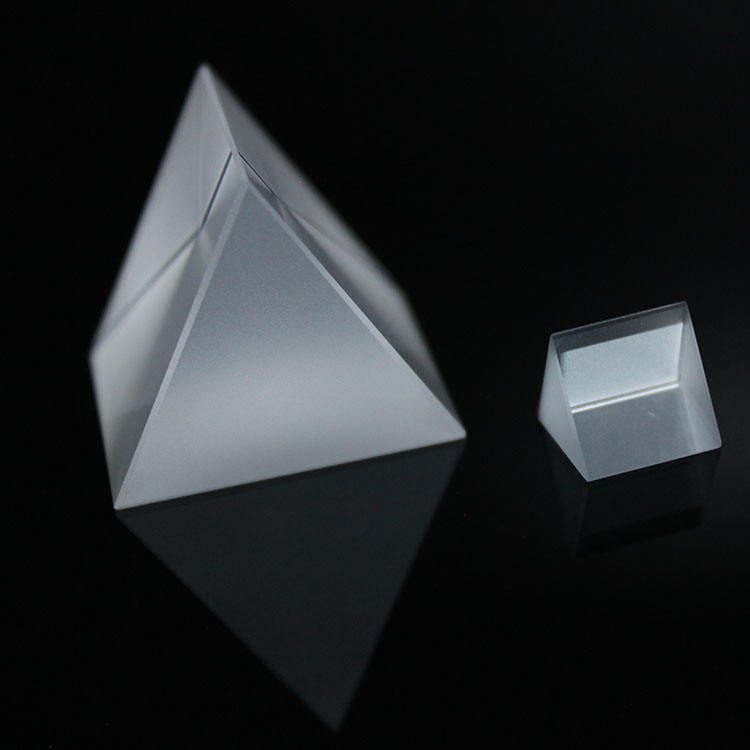

5 mm Fused Silica Equilateral Optical Prism, AR Coated

Product description

The equilateral prism made from fused silica is designed for applications requiring precise optical path manipulation across a wavelength range of 0.4-1.7 μm. With an angle tolerance of ±1 arcsec and exceptional surface flatness (Lambda/10 to Lambda/4), this prism ensures minimal beam deviation and high wavefront integrity. Ideal for R&D and optical systems, it supports OEM and ODM customization, accommodating various sizes from 5.0 mm to 150.0 mm.

Key Features

Angle tolerance of ±1 arcsec ensures precise beam alignment.
Exceptional surface flatness (Lambda/10 to Lambda/4) maintains wavefront integrity.
Clear aperture of 95% maximizes light transmission efficiency.
Available in sizes ranging from 5.0 mm to 150.0 mm for diverse applications.
Supports OEM and ODM customization for tailored optical solutions.

Specification Summary

Item	Value
Material	Fused Silica
Shape	Equilateral
Size	5 mm
Thickness	Custom
Coating	anti-reflective (AR)
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)

Full Specifications

Parameter	Value
Prism Type	optical prism
Customized Support	OEM, ODM
Warranty	3 Years
Flatness	60/40 40/20
Angle Tolerance	±1 arcsec
Surface Flatness	Lambda/10~ Lambda/4
Clear Aperture	95%
Certificate	ISO9001

FAQ

What custom sizes are available?

Sizes range from 5.0 mm to 150.0 mm, allowing for various application needs.

What is the angle tolerance of the prism?

The prism features an angle tolerance of ±1 arcsec, ensuring high precision.
