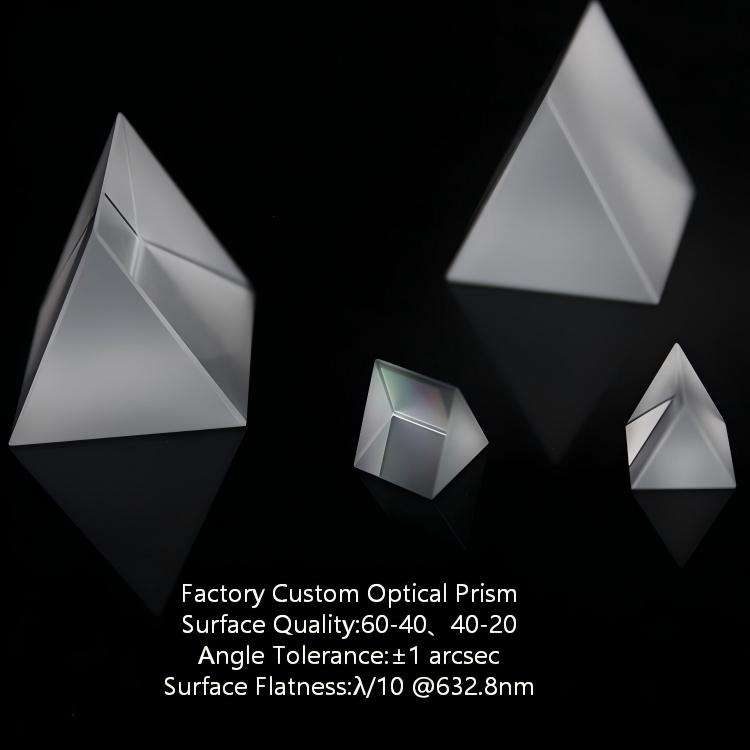

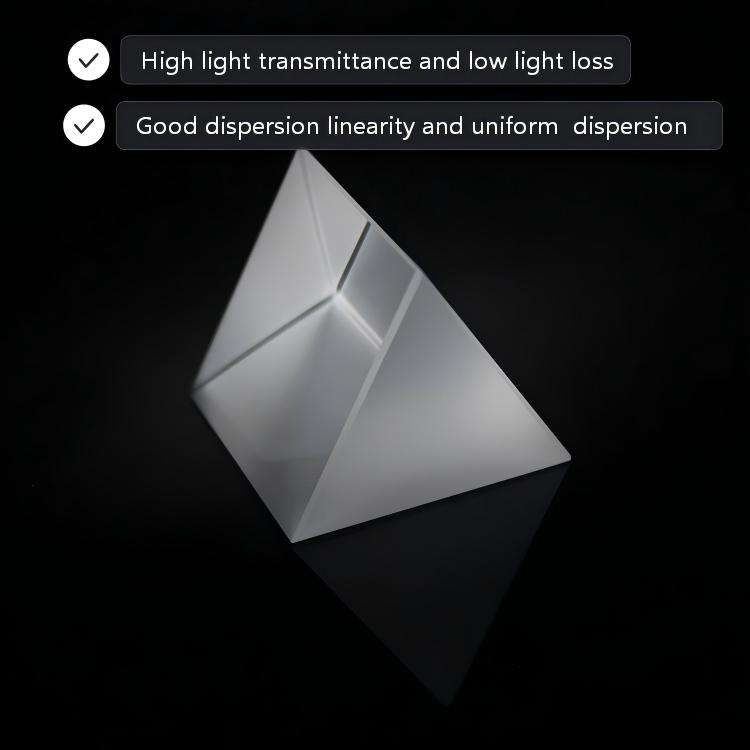

5 mm Fused Silica Equilateral Optical Prism, AR Coated
Equilateral fused silica prism with ±1 arcsec angle tolerance and Lambda/10 surface flatness for precise optical applications.
Core attributes
- Material
- Fused Silica
- Shape
- Equilateral
- Size
- 5 mm
- Thickness
- Custom
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Equilateral
- Size
- 5 mm
- Thickness
- Custom
- Coating
- anti-reflective (AR)
Product description
The equilateral prism made from fused silica is designed for precision optical applications, offering excellent angle accuracy of ±1 arcsec. Its Lambda/10 to Lambda/4 surface flatness ensures minimal wavefront distortion, making it suitable for high-performance systems. With a clear aperture of 95%, this prism maximizes light transmission, ideal for various optical paths.
Key Features
- Angle tolerance of ±1 arcsec ensures precise beam alignment.
- Lambda/10 to Lambda/4 surface flatness maintains wavefront integrity.
- 95% clear aperture maximizes light transmission efficiency.
- Coated with AR for optimal performance in transmissive applications.
- Customizable options available through OEM and ODM support.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Equilateral |
| Size | 5 mm |
| Thickness | Custom |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | optical prism |
| Customized Support | OEM, ODM |
| Warranty | 3 Years |
| Flatness | 60/40 40/20 |
| Angle Tolerance | ±1 arcsec |
| Surface Flatness | Lambda/10~ Lambda/4 |
| Clear Aperture | 95% |
| Certificate | ISO9001 |
FAQ
What are the available sizes for this prism?
The prism is available in sizes ranging from 5.0 mm to 150.0 mm.
What is the angle tolerance of the prism?
The angle tolerance is ±1 arcsec.
