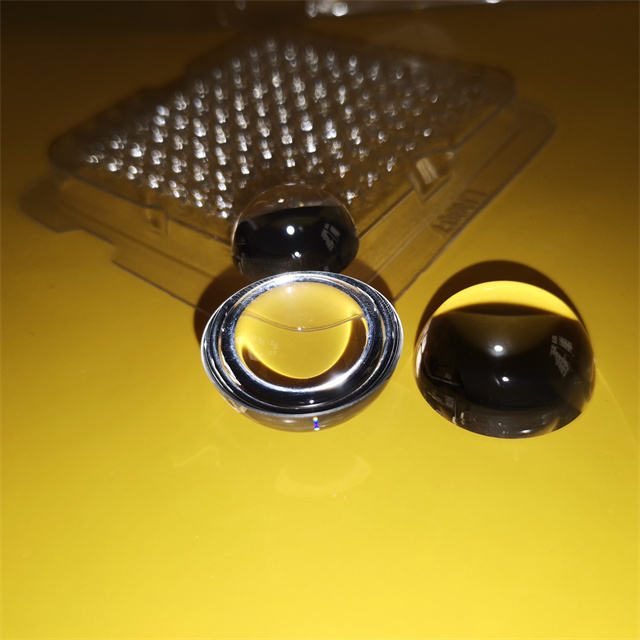

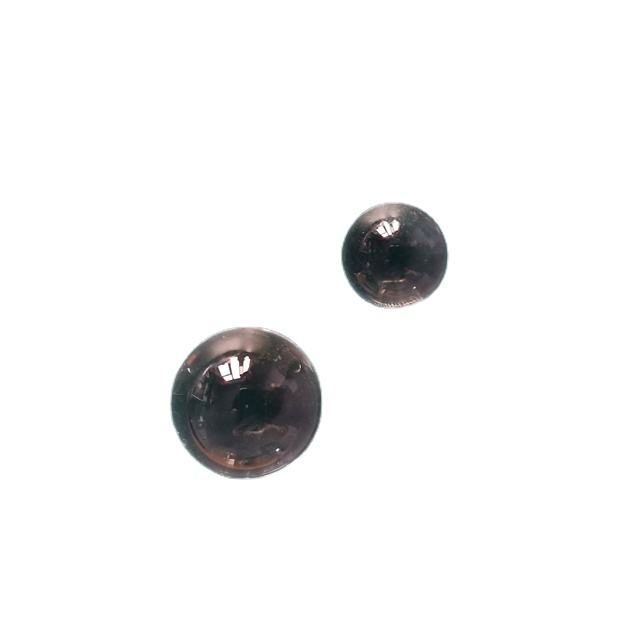

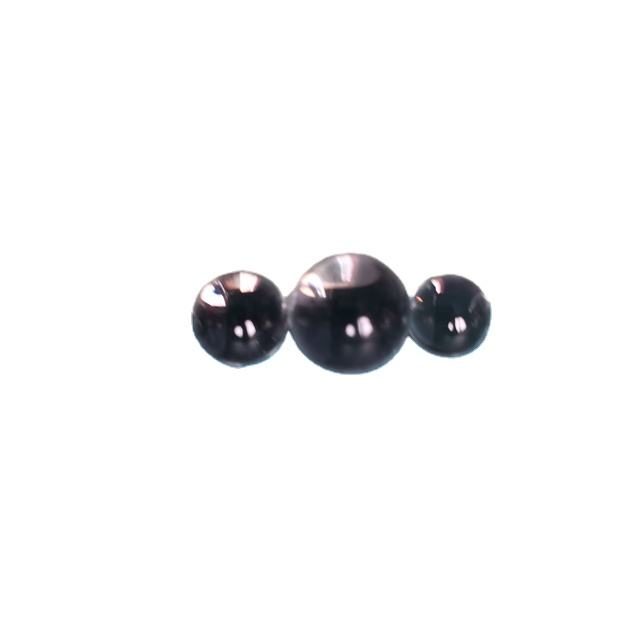

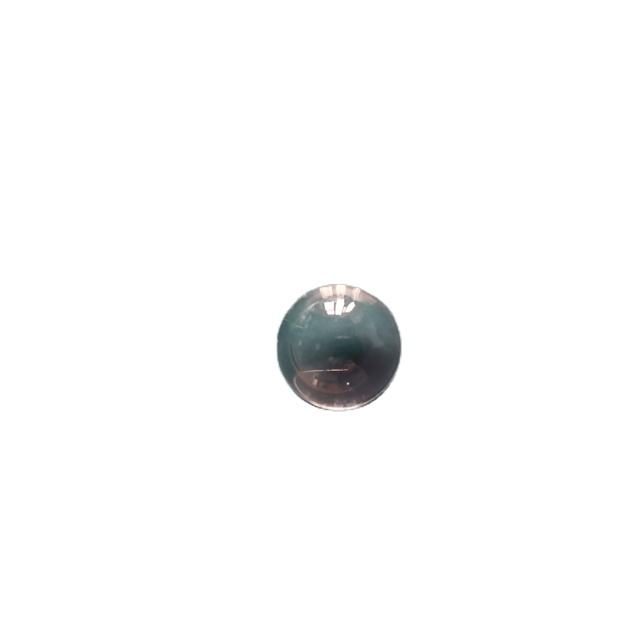

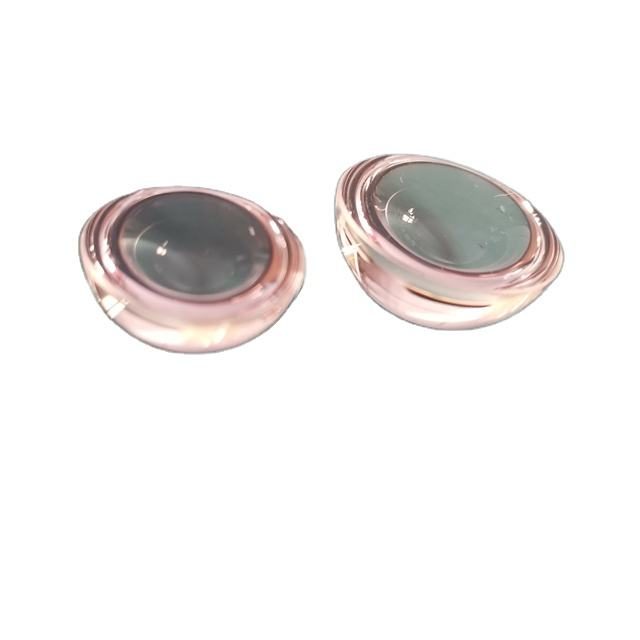

0.5 mm Fused Silica Hemisphere Lens

Product description

This fused silica hemispherical lens is designed for applications in medical and collimation systems, operating effectively across multiple wavelength bands including 8-14 μm, 400-700 nm, and below 400 nm. Its spherical shape and customizable options make it ideal for precise optical coupling and scanning tasks. With a diameter of 0.5 mm, this lens meets the needs of compact and high-performance optical systems.

Key Features

Material: Fused Silica for excellent durability and thermal stability.
Diameter: 0.5 mm, suitable for compact optical designs.
Coating Options: Available in uncoated or anti-reflective (AR) for enhanced performance.
Surface Quality: Meets S/D standards of 60/40 - 20/10 for reliable optical performance.
Custom Support: OEM options available for tailored solutions.

Applications

Medical, Collimation

Specification Summary

Item	Value
Material	Fused Silica
Shape	Hemisphere
Diameter	0.5 mm
Coating	uncoated, anti-reflective (AR)
Transmission bands	LWIR (8-14 μm), VIS (400-700 nm), UV (<400 nm)

Full Specifications

Parameter	Value
Type	/; Collimating Lenses
Customized Support	OEM
Warranty	1 month
Weight	/
S/D	60/40 - 20/10
Structure	Spherical
Wavelength	Vis or UV OR IR

FAQ

Can I get custom sizes for this lens?

Custom sizing options are available, allowing for tailored solutions to fit specific applications.

What are the tolerances for the diameter?

The diameter tolerance is ±0.05 mm or ±0.02 mm, ensuring precision in manufacturing.
