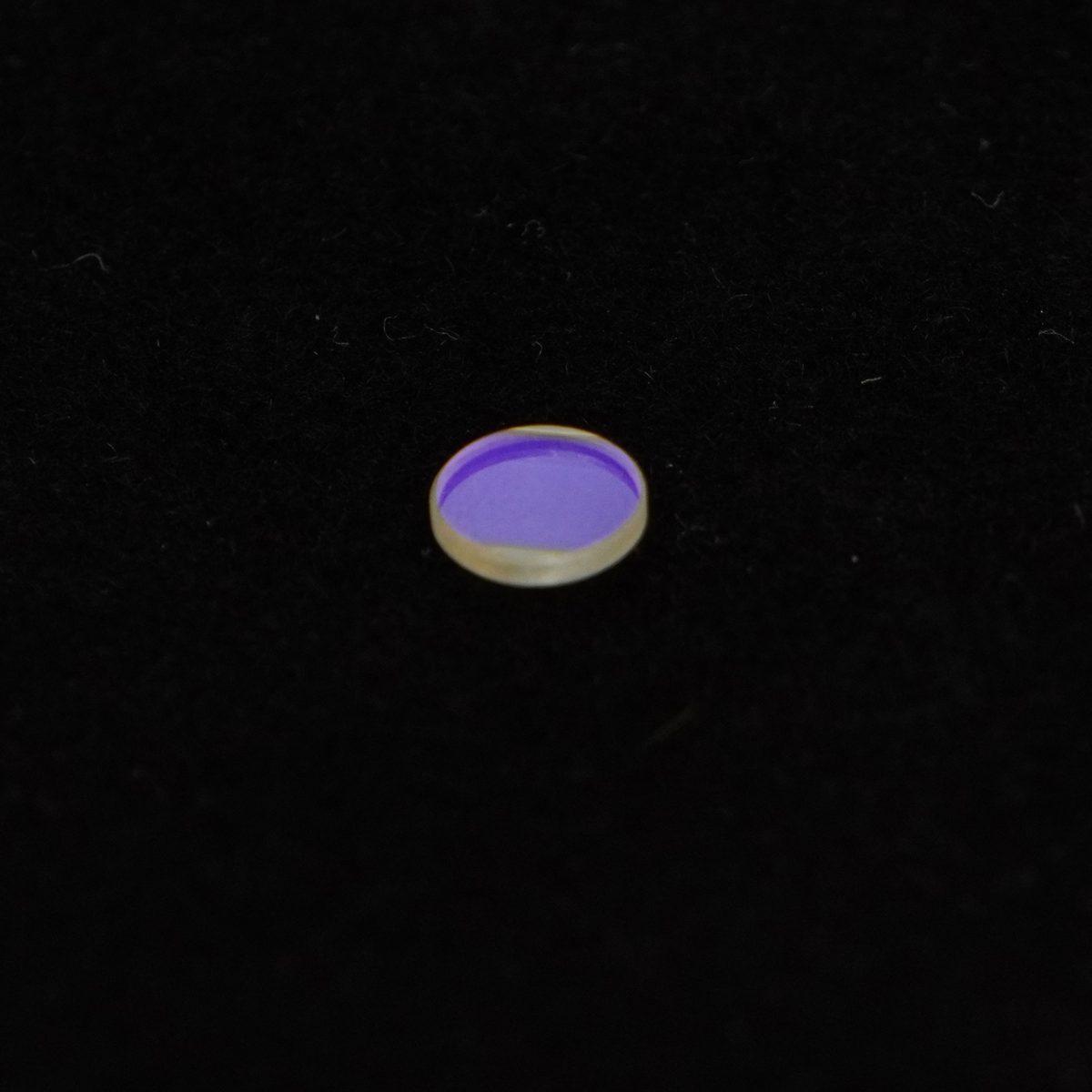

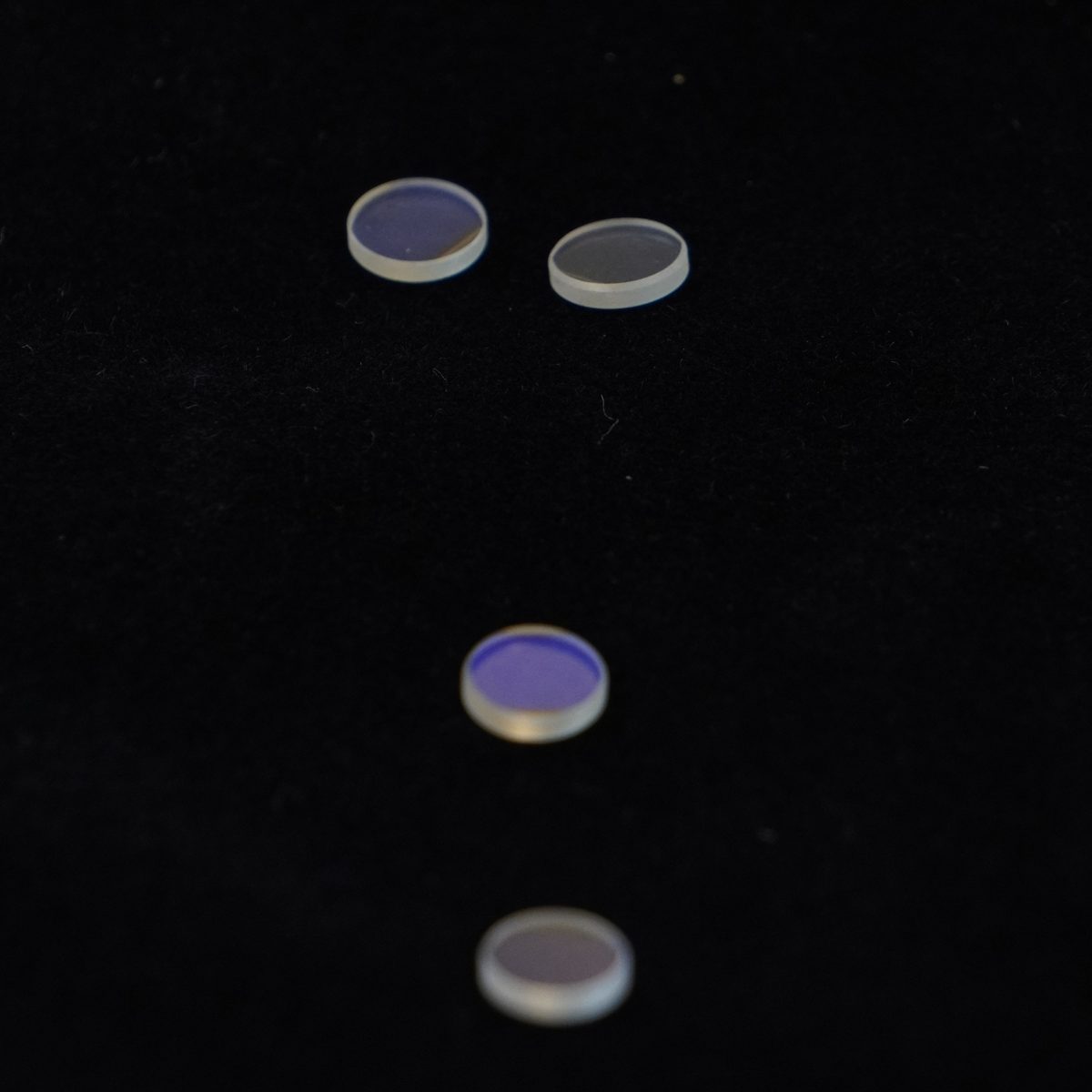

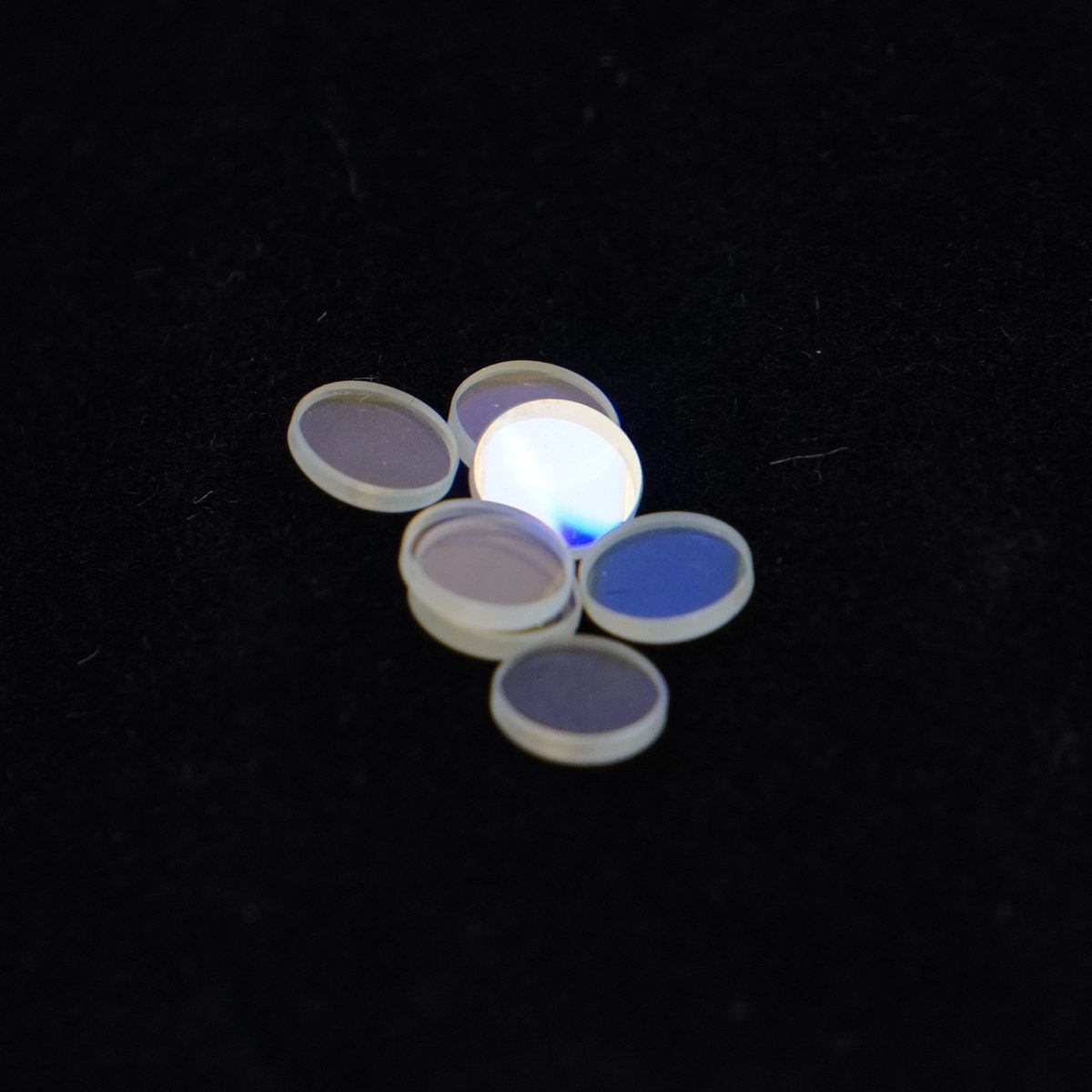

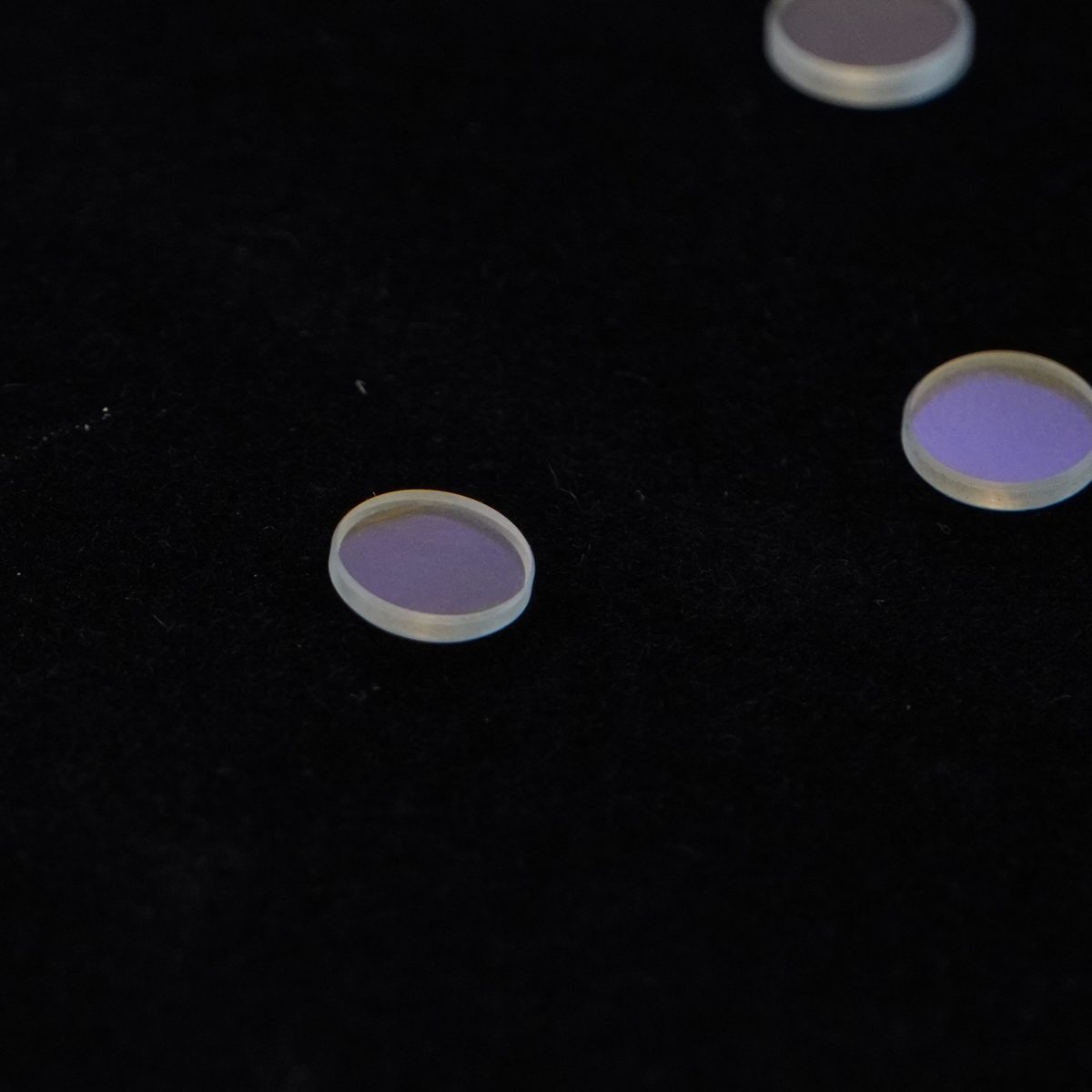

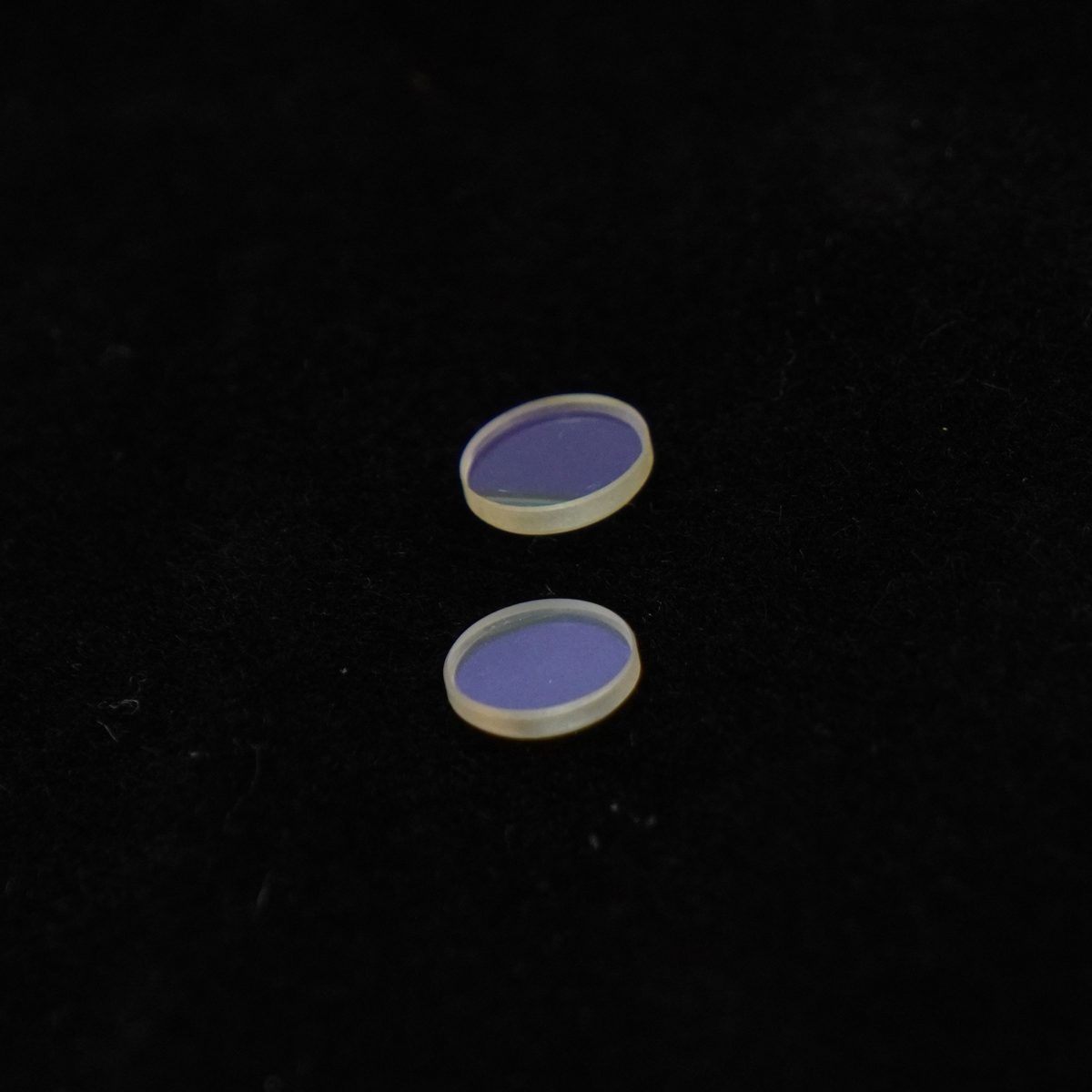

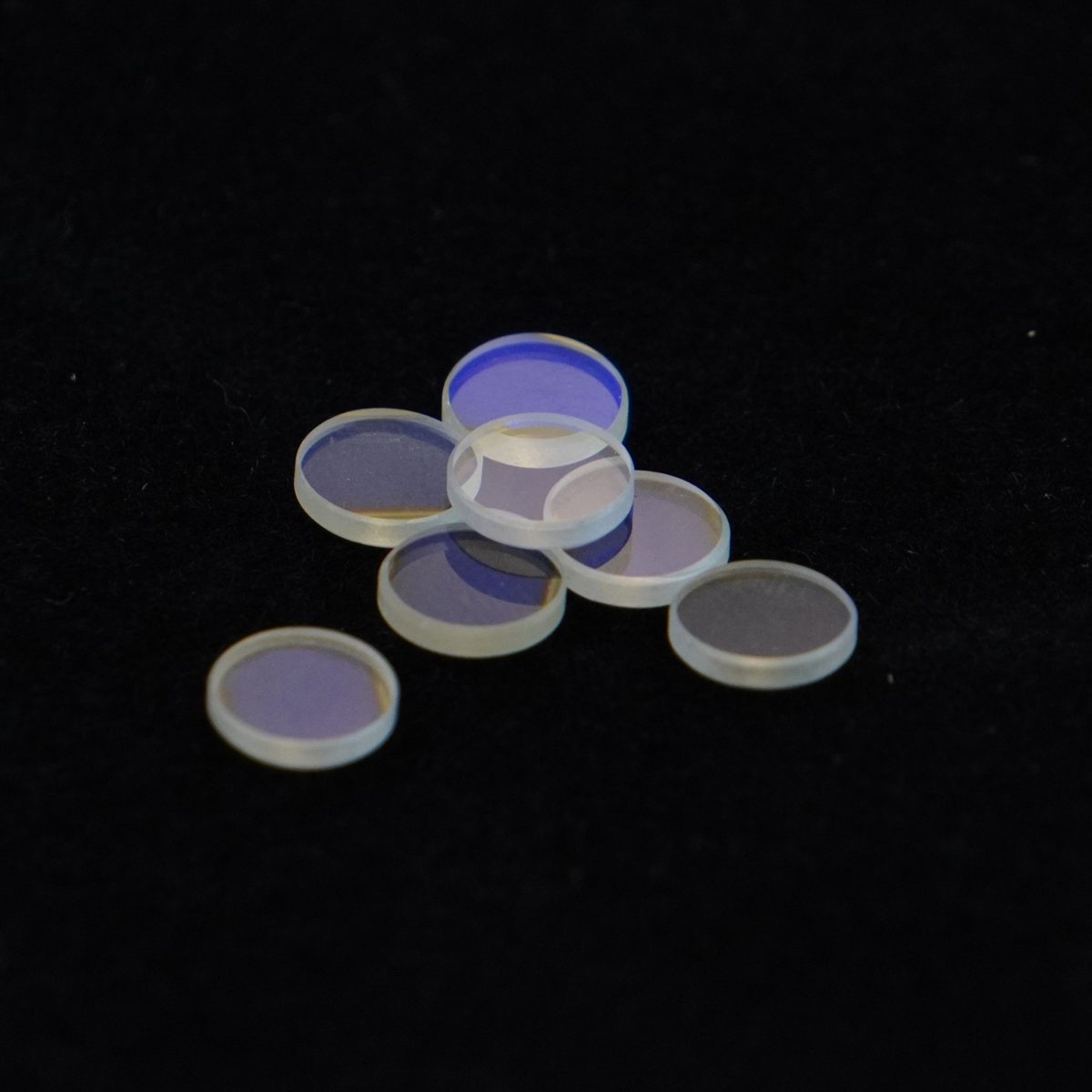

1.5 mm Fused Silica Lens

Product description

This fused silica optical filter is designed to shield against 480nm light, making it ideal for precision measurements in imaging, detection, and analysis applications. With a diameter of 1.5 mm and a thickness of 0.2 mm, it ensures high optical performance with a surface quality of 40/20. Its reliable supply chain guarantees consistent quality control and quick shipping, making it a dependable choice for R&D and procurement engineers in various fields.

Key Features

Cut-off protection against 480nm light enhances measurement precision.
Surface quality of 40/20 ensures high optical performance.
Dimension tolerance of +0.0/-0.2mm for consistent batch quality.
Customizable options available for OEM and ODM needs.
Lightweight at 0.5g, suitable for compact optical systems.

Specification Summary

Item	Value
Material	Fused Silica
Diameter	1.5 mm
Thickness	0.2 mm
Surface Quality	40/20
Transmission bands	VIS (400-700 nm)

Full Specifications

Parameter	Value
Type	filter
Customized Support	OEM, ODM
Warranty	1 Year
Weight	0.5
Flatness	lambda/2@633nm (every dia. 25mm)
Parallelism	<1'
Dimension Tolerance	+0.0/-0.2mm
Use	detecting, imaging, analysing

FAQ

Is custom sizing available?

Yes, customization options are available for diverse optical component needs.

What is the dimension tolerance?

The dimension tolerance is +0.0/-0.2mm, ensuring consistent quality.
