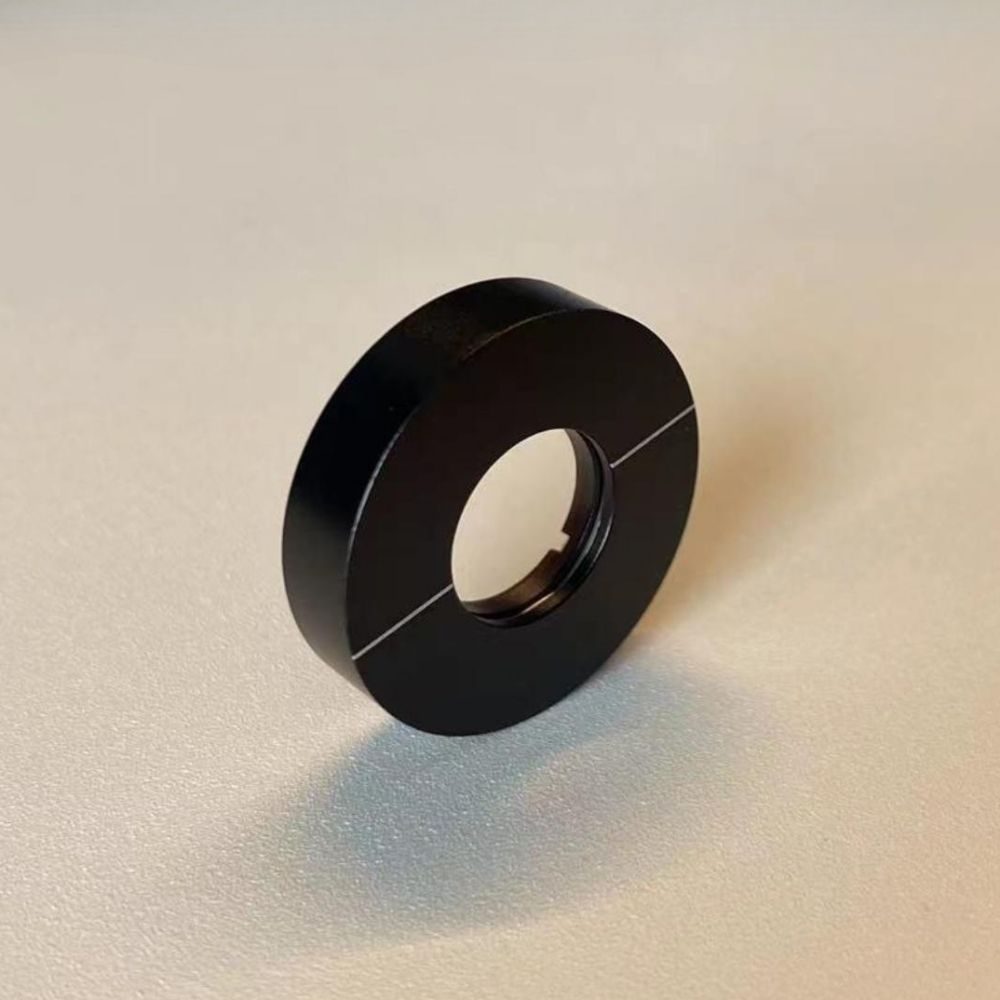

1 mm Fused Silica Lens, AR Coated

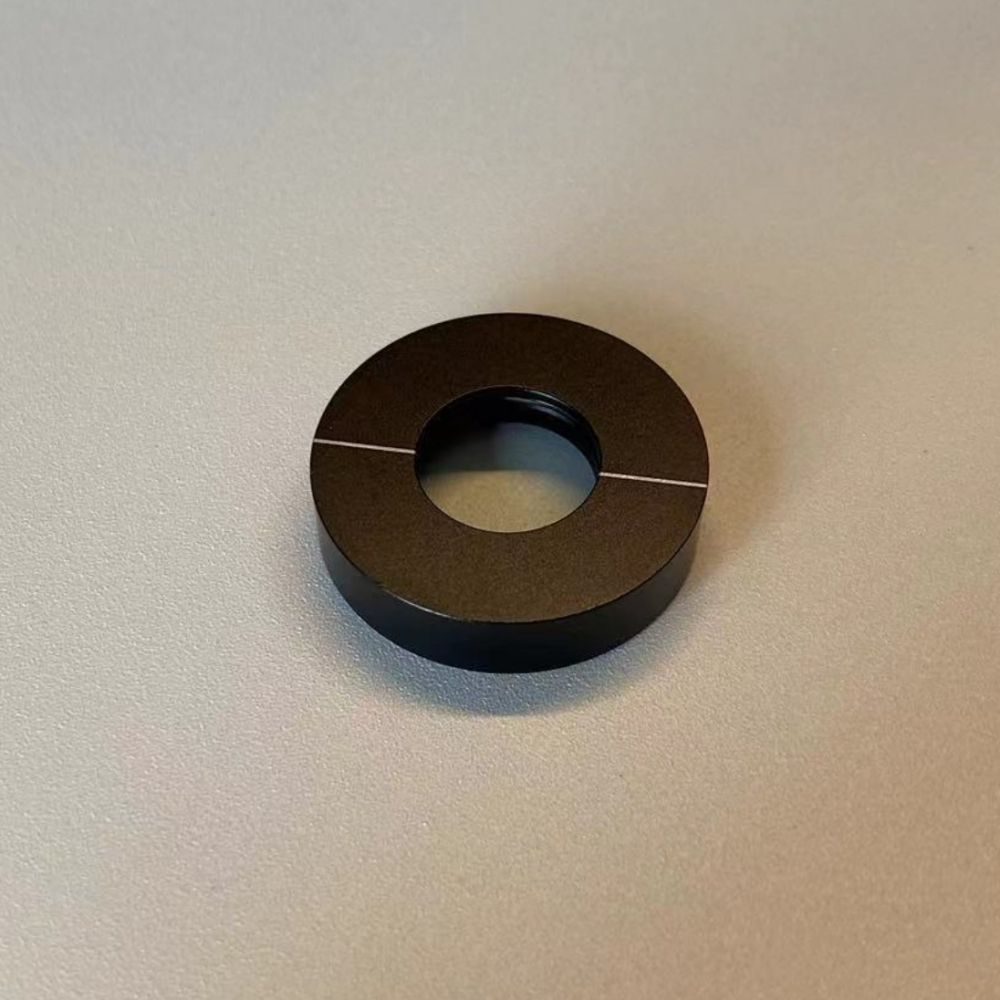

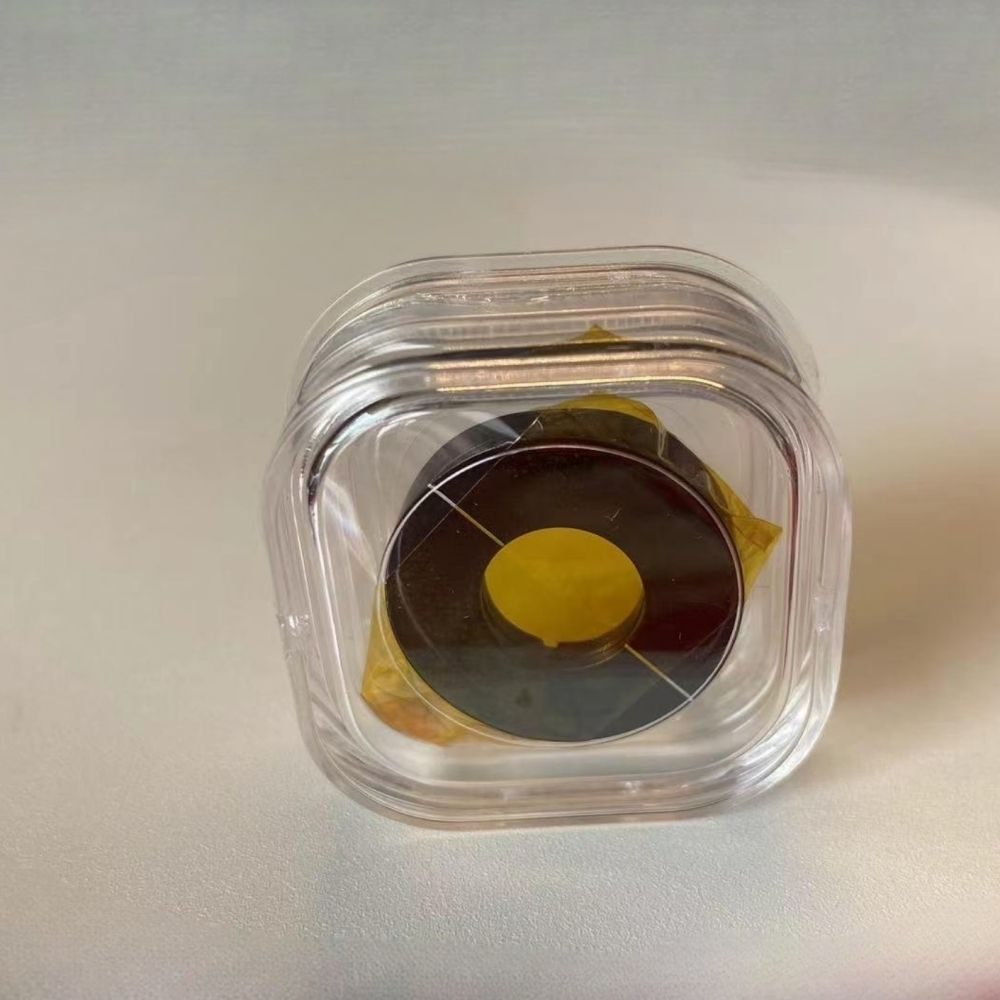

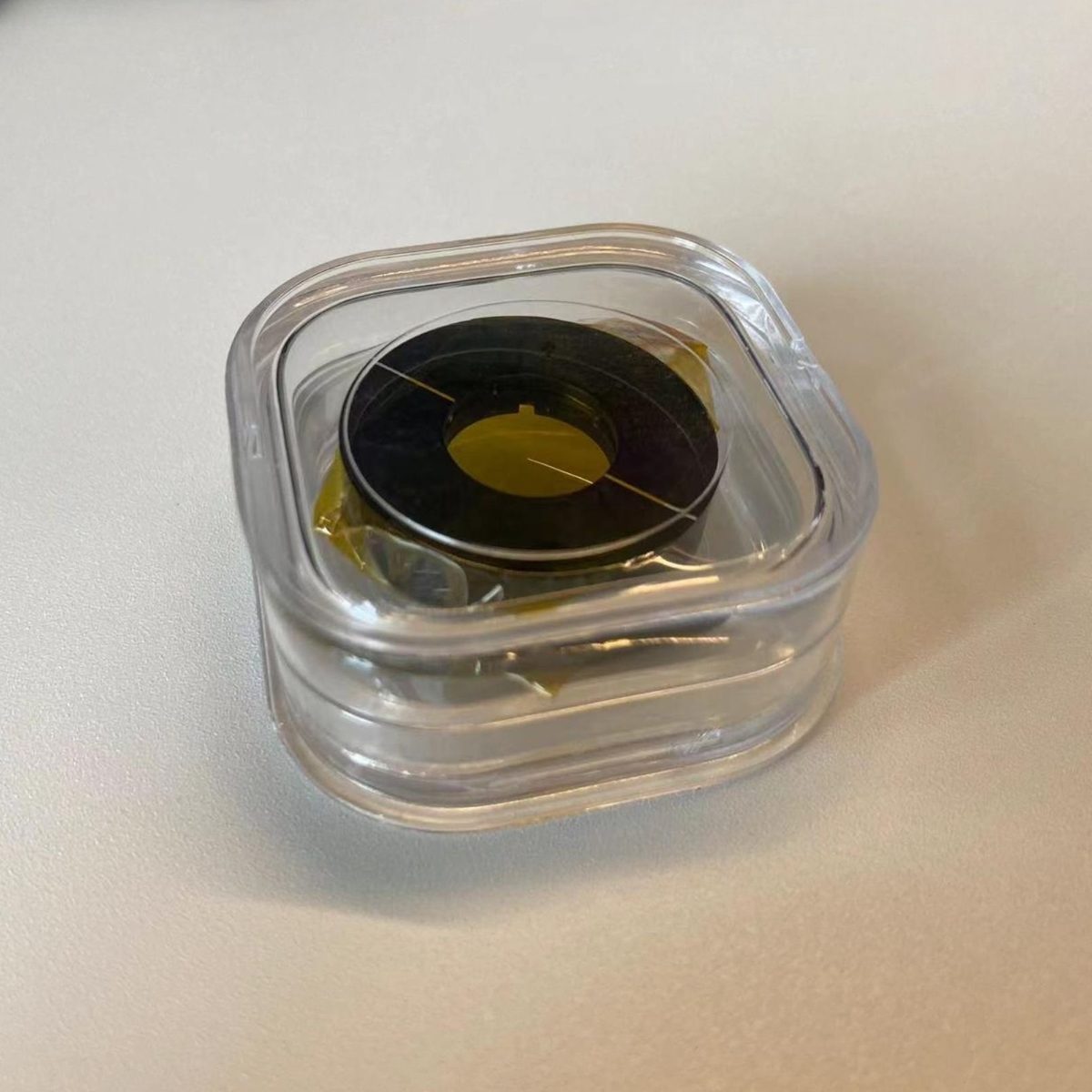

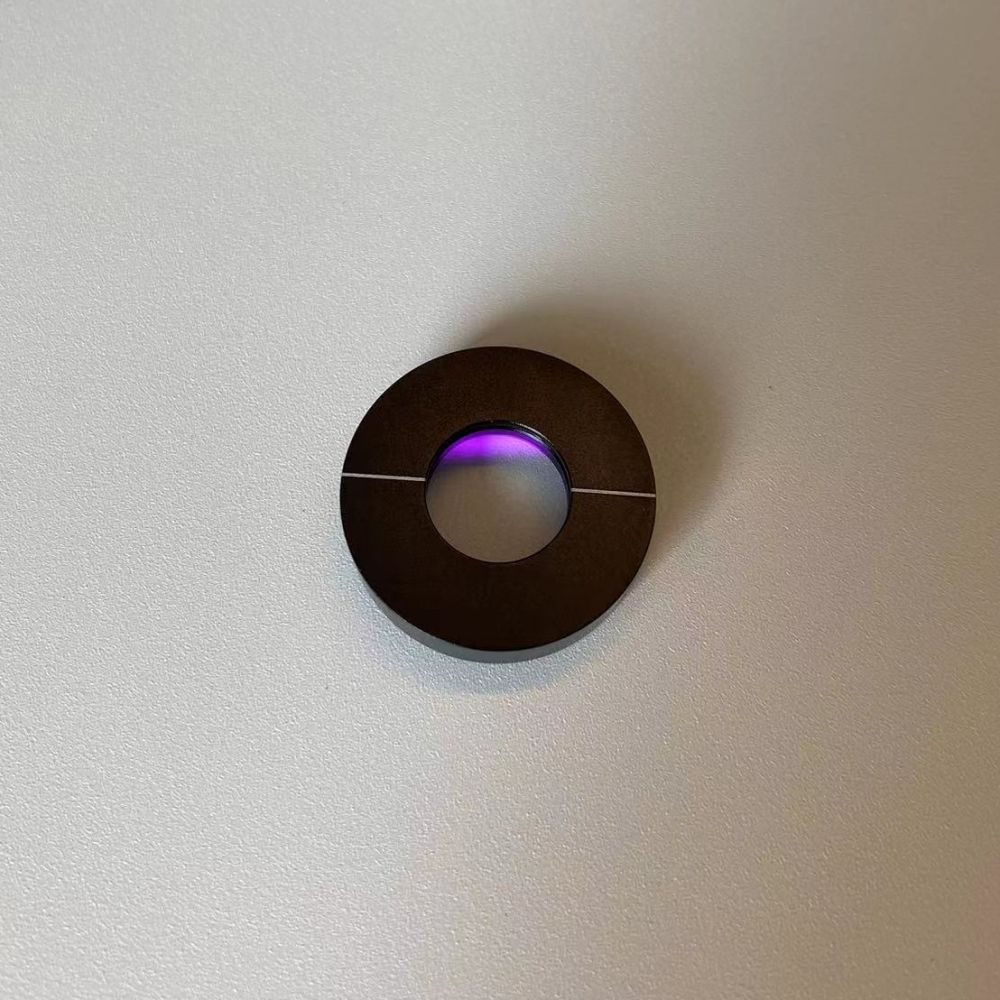

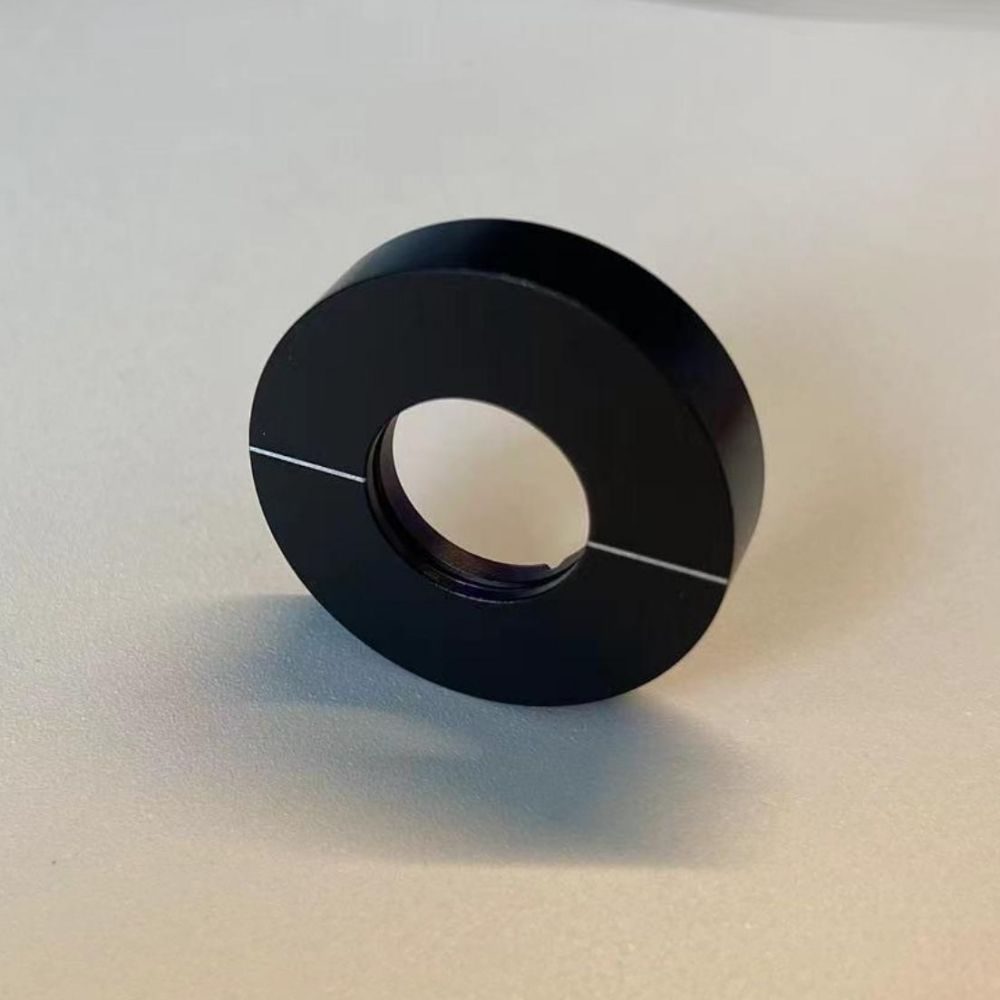

Optically Contacted Zero Order Waveplate for precise phase manipulation across 0.7-1.7 μm and 400-700 nm with customizable sizes.
Core attributes
- Material
- Fused Silica
- Diameter
- 1 mm
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Diameter
- 1 mm
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description
The Optically Contacted Zero Order Waveplate is designed for applications requiring precise phase manipulation across a broad spectral range of 0.7-1.7 μm and 400-700 nm. Constructed from fused silica, this waveplate features a low dependence on temperature and wavelength changes, making it ideal for high-performance optical systems. Its customizable dimensions and robust construction ensure reliability in demanding environments.
Key Features
- Broad spectral bandwidth (0.7-1.7 μm and 400-700 nm) for versatile applications.
- Constructed from fused silica for high durability and optical performance.
- Custom sizes available to meet specific project requirements.
- Dimension tolerance of +0.0/-0.2 mm for precise fitting.
- High damage threshold (>10 J/cm²) for enhanced reliability.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Diameter | 1 mm |
| Coating | anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Flat |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Weight | 0.04 |
| Dimension Tolerance | 0.0mm-0.0 2mm |
FAQ
Can I get custom sizes?
Yes, custom sizes are available to meet specific project requirements.
What is the dimension tolerance?
The dimension tolerance is +0.0/-0.2 mm.
