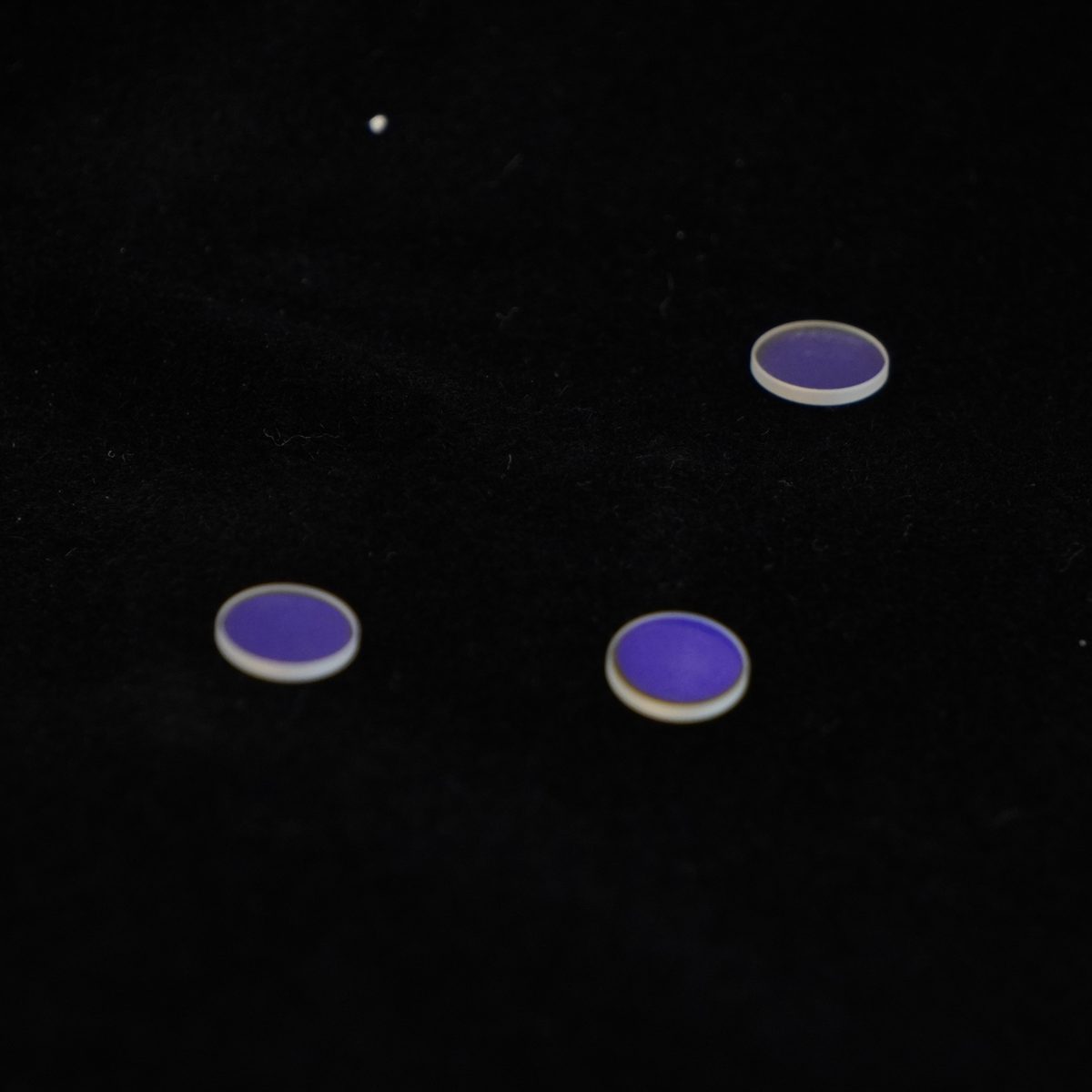

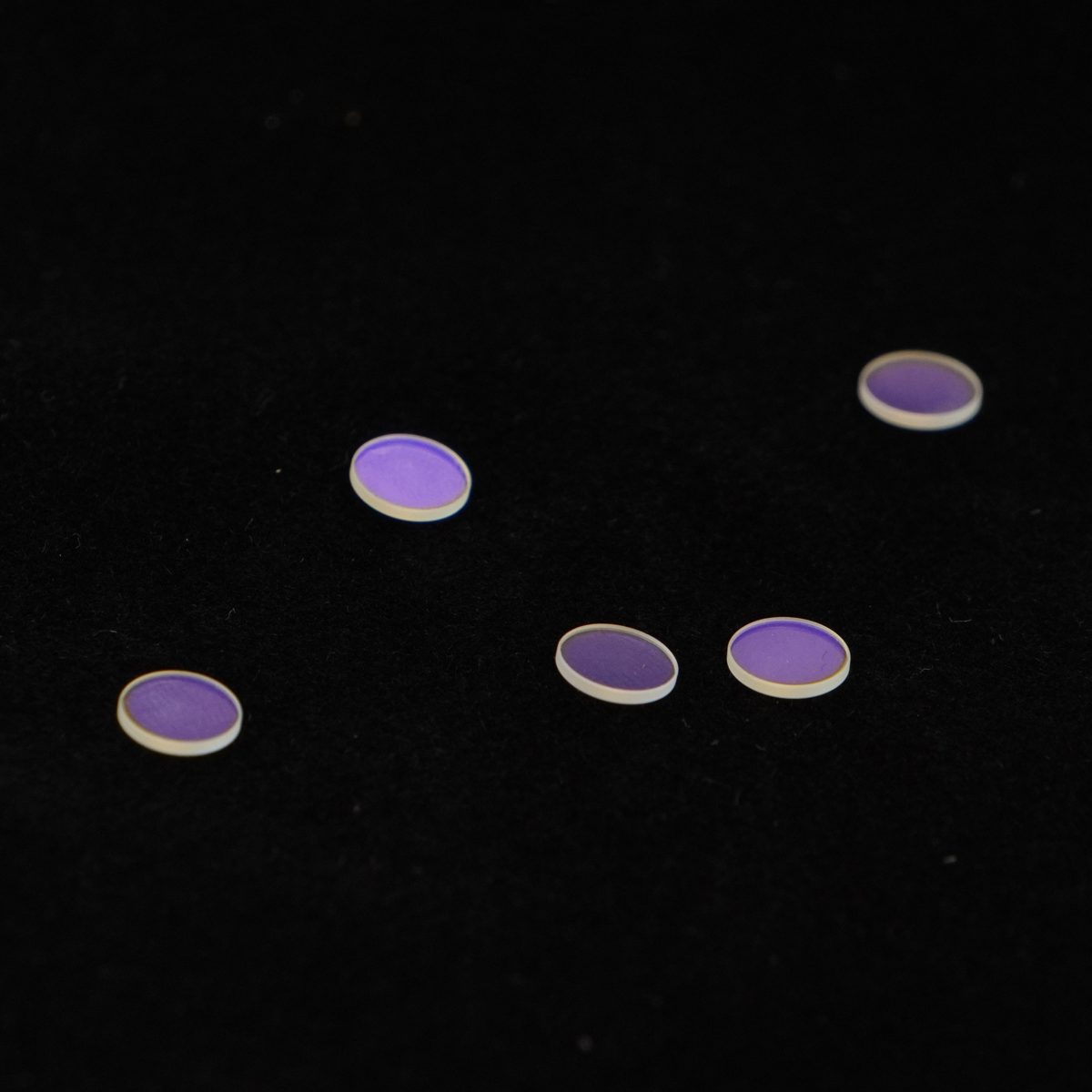

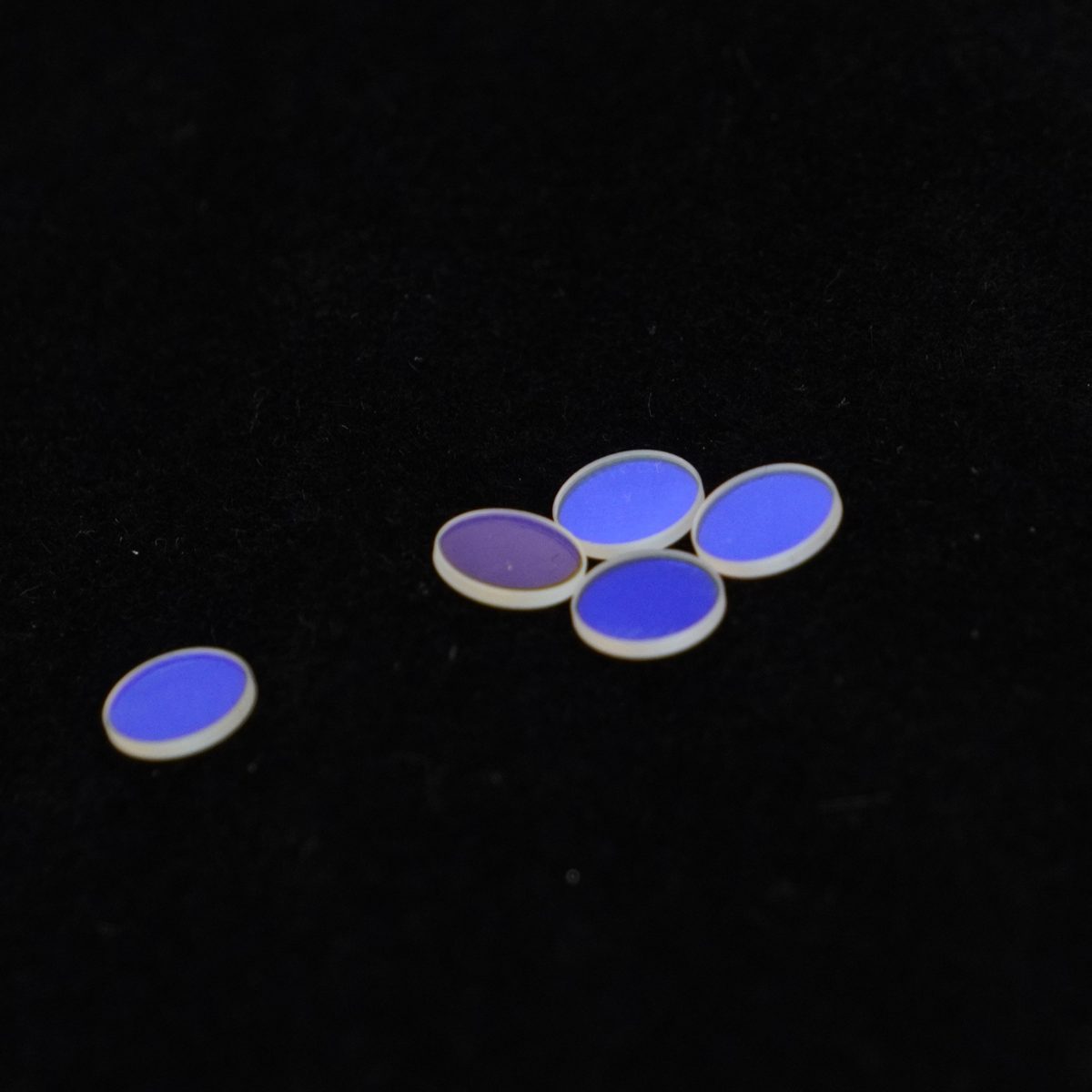

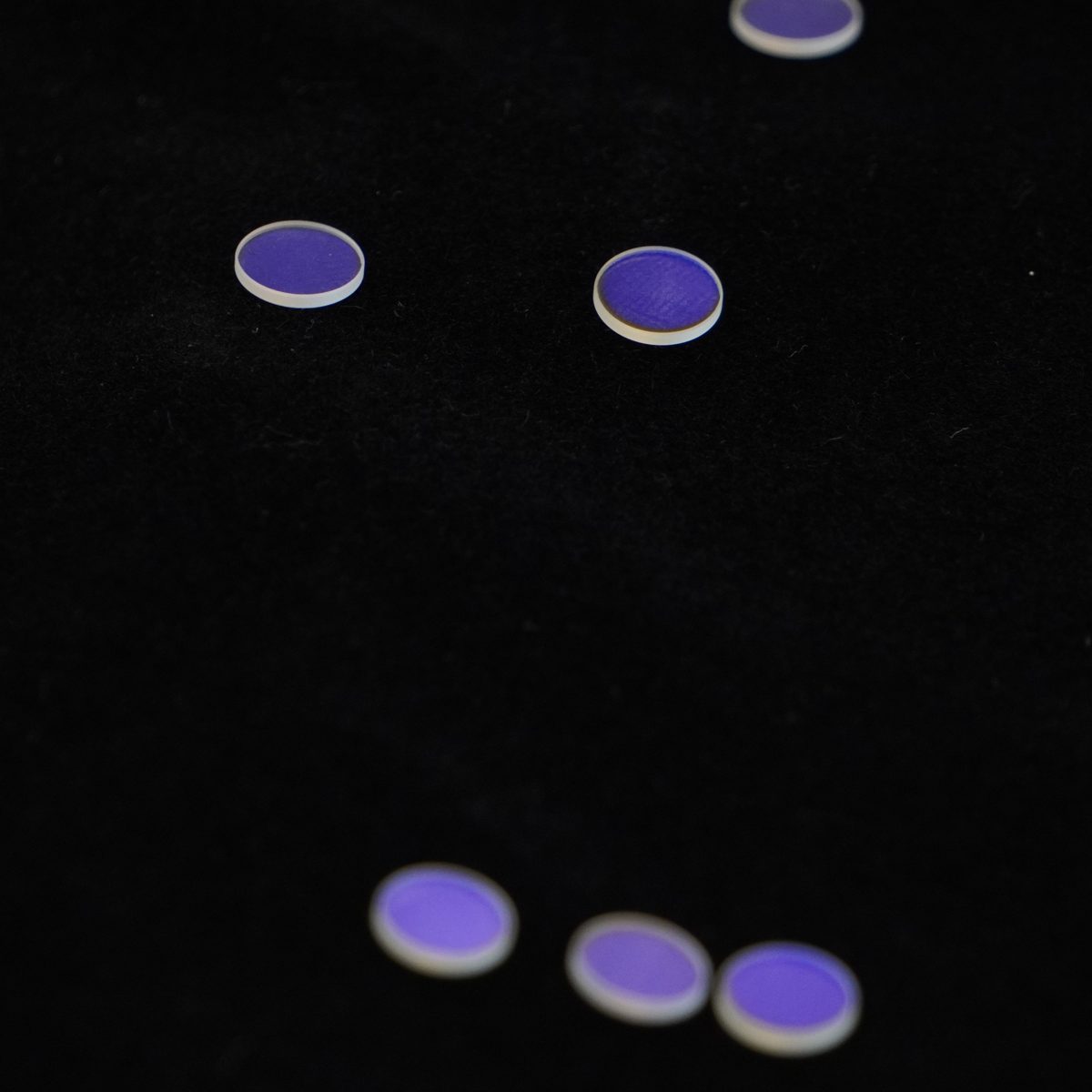

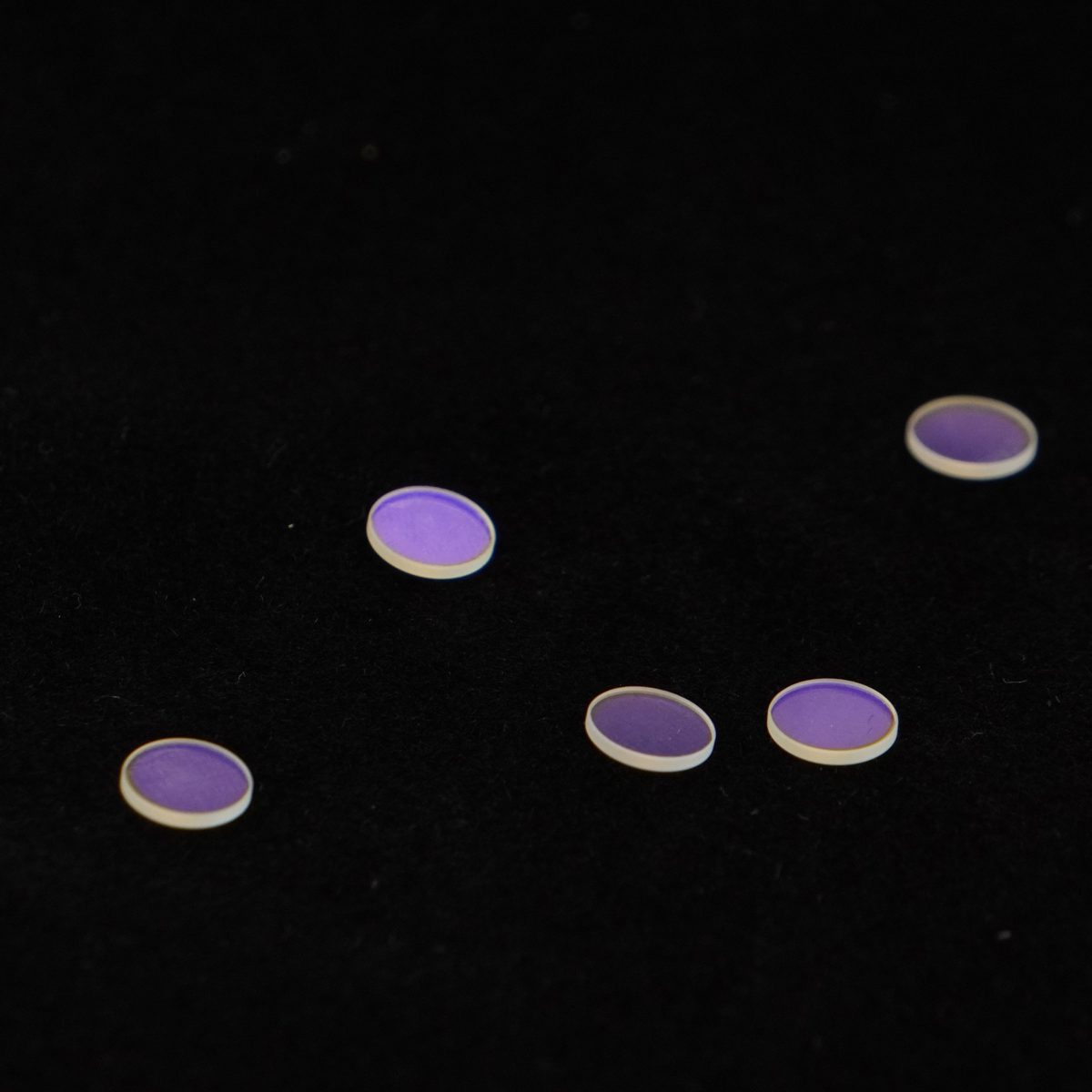

Custom Size Fused Silica Lens, AR Coated
High-quality fused silica optical component with 90% transmittance for 400-700 nm applications.
Core attributes
- Material
- Fused Silica
- Thickness
- 0.2 mm
- Surface Quality
- 40/20
- Transmittance
- 90%
- Coating
- anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Thickness
- 0.2 mm
- Surface Quality
- 40/20
- Transmittance
- 90%
- Coating
- anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm)
Product description
This high-quality fused silica optical component is designed for applications requiring excellent light transmission in the 400-700 nm wavelength range. With a transmittance of 90% and a surface quality of 40/20, it enhances performance in IR imaging, LIDAR, and other optical systems. The component is available with advanced AR coatings to minimize reflection and maximize clarity, making it ideal for precision applications.
Key Features
- Transmittance of 90% enhances light performance for optimal imaging.
- Surface quality rated at 40/20 ensures superior clarity and minimal distortion.
- Customizable options available for OEM and ODM to meet specific project needs.
- Flatness of lambda/2@633nm guarantees high precision across applications.
- Dimension tolerance of +0.0/-0.2mm ensures consistent batch quality.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Thickness | 0.2 mm |
| Surface Quality | 40/20 |
| Transmittance | 90% |
| Coating | anti-reflective (AR) |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 90% |
| Customized Support | OEM, ODM |
| Warranty | 1 Year |
| Flatness | lambda/2@633nm (every dia. 25mm) |
| Parallelism | <1' |
| Dimension Tolerance | +0.0/-0.2mm |
FAQ
Is custom sizing available?
Yes, customizable options are available for both OEM and ODM requests.
What is the dimension tolerance?
The dimension tolerance is +0.0/-0.2mm, ensuring consistent quality.
