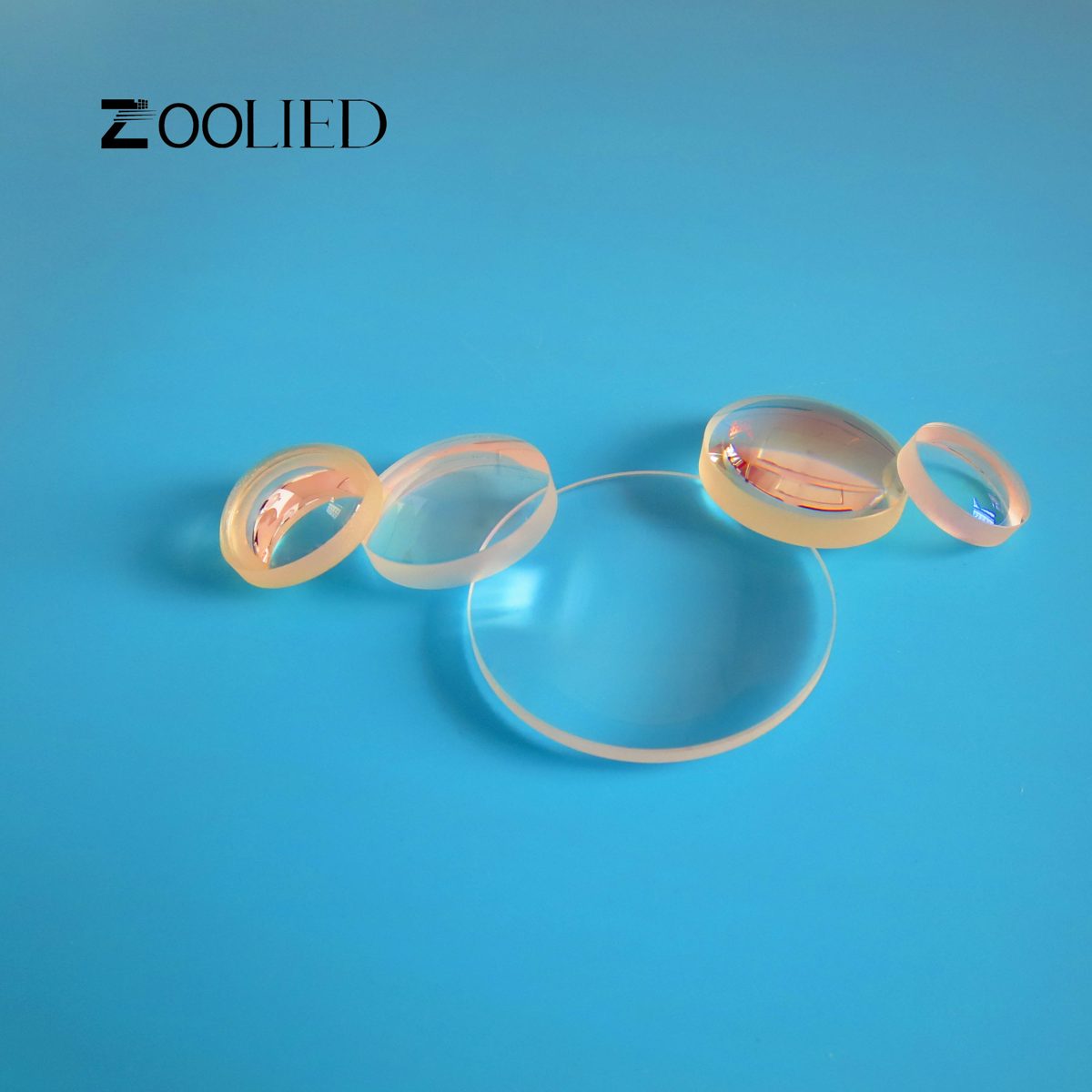

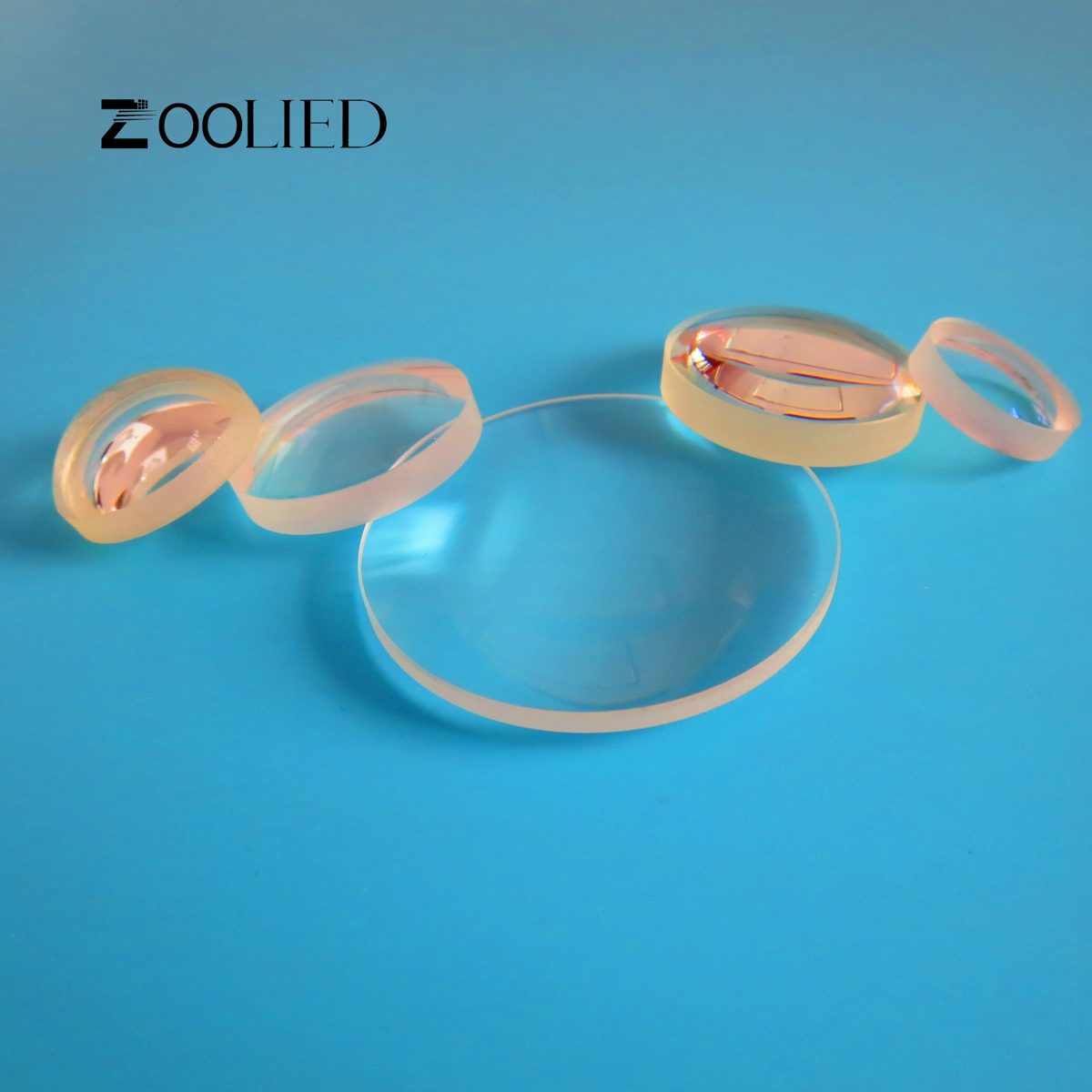

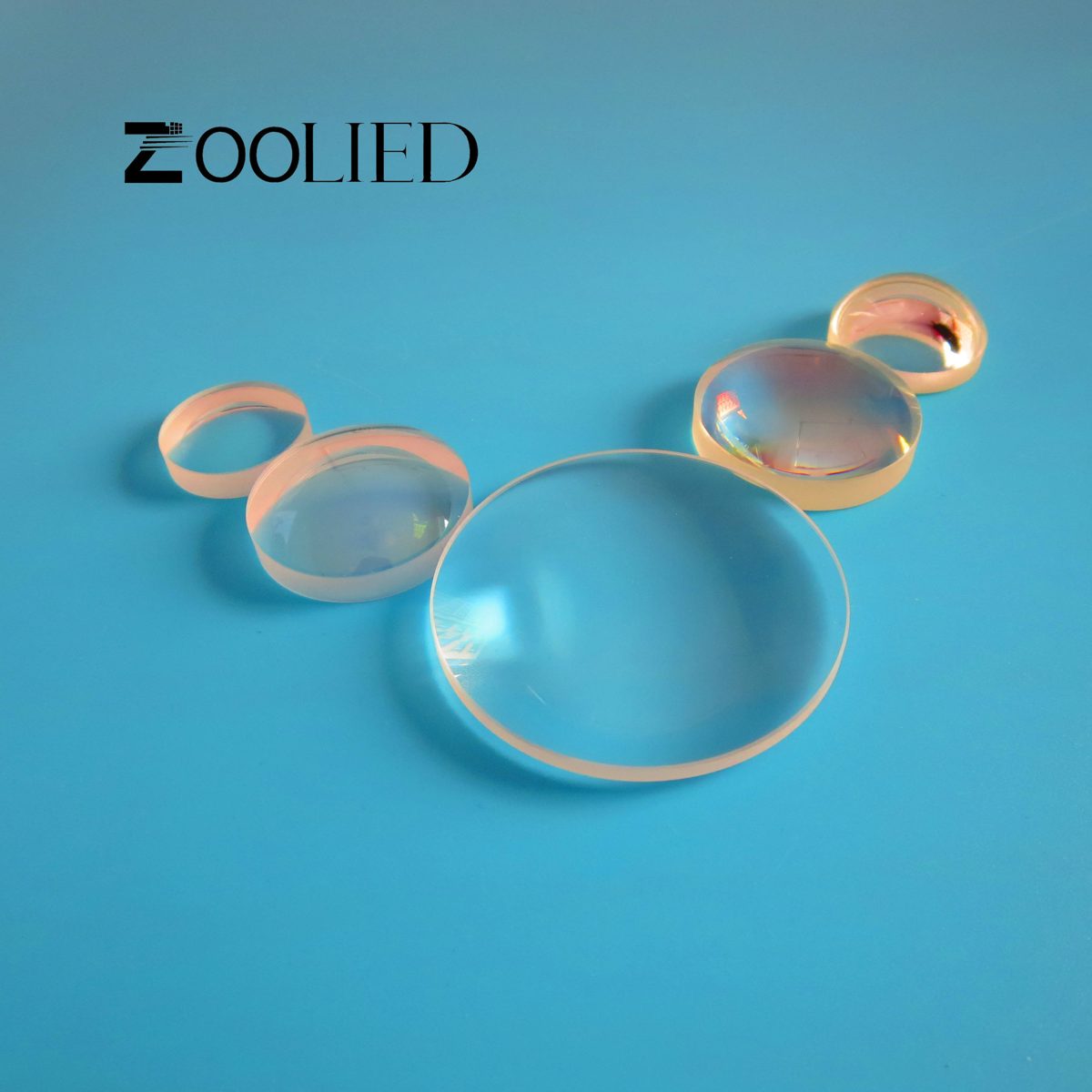

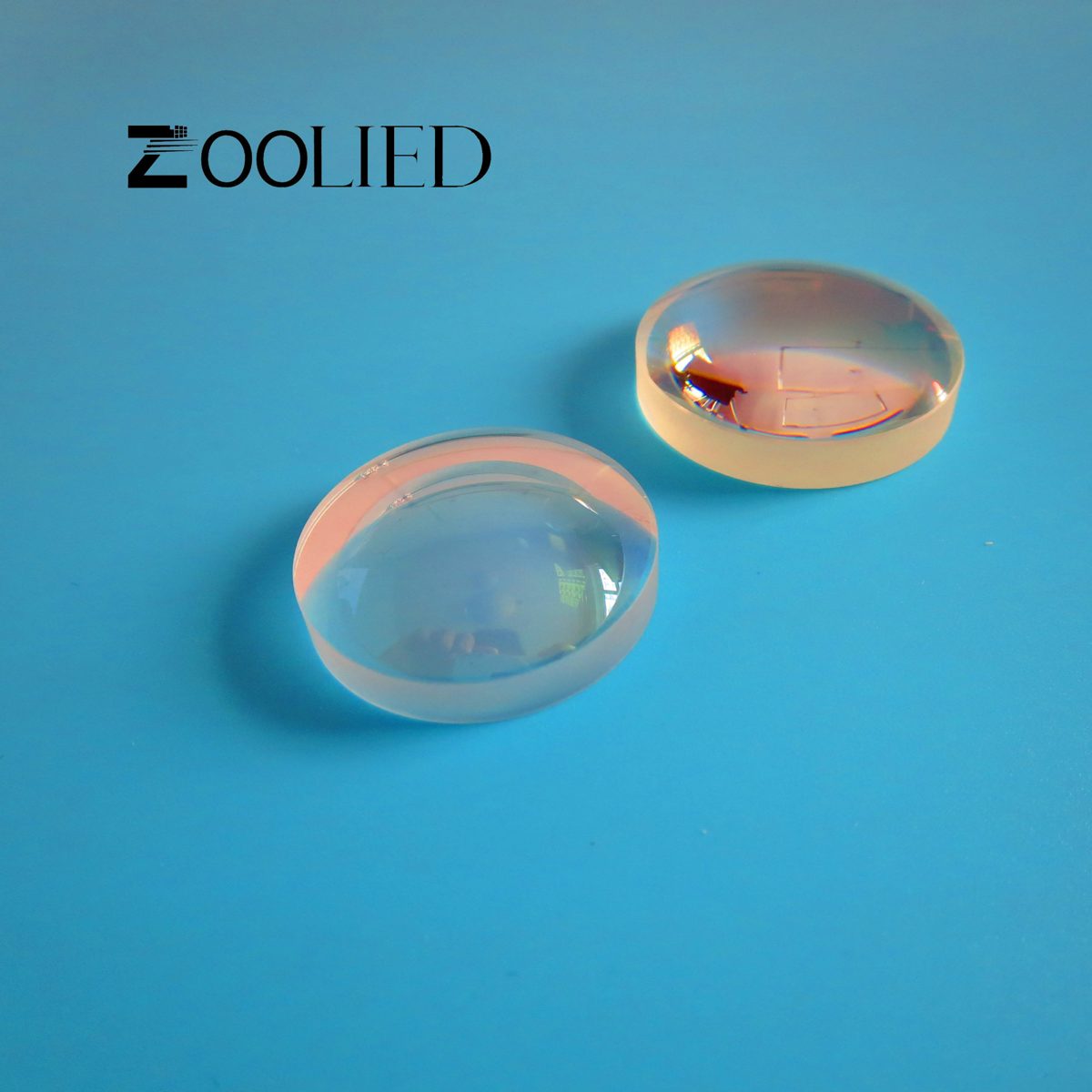

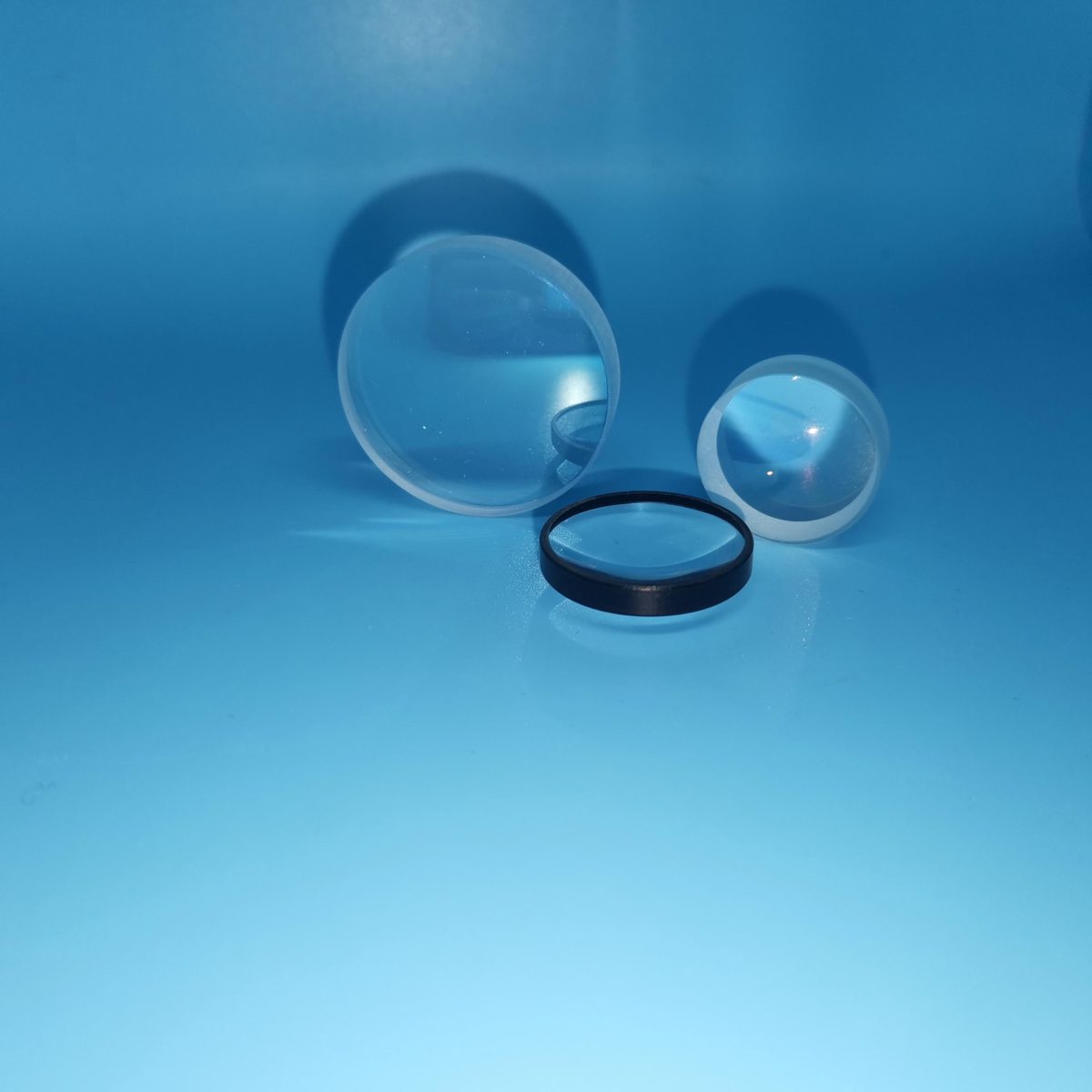

0.5 mm Fused Silica Meniscus Lens, AR Coated
Meniscus lens made from fused silica, ideal for medical applications, customizable, with a diameter range of 0.5 mm to 300 mm.
Core attributes
- Material
- Fused Silica
- Shape
- Meniscus
- Diameter
- 0.5 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR), uncoated, high-reflective (HR)
- Transmission bands
- VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Meniscus
- Diameter
- 0.5 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR), uncoated, high-reflective (HR)
- Transmission bands
- VIS (400-700 nm), UV (<400 nm)
Product description
This meniscus lens, crafted from fused silica, is ideal for medical applications, effectively transmitting light across the 400-700 nm and <400 nm bands. Its versatile design allows for both convex and concave configurations, accommodating various optical requirements. With a diameter range from 0.5 mm to 300 mm, it supports diverse project specifications while maintaining a surface quality of 60/40. The lens can be customized to fit specific needs, ensuring reliability and performance in critical applications.
Key Features
- Diameter range of 0.5 mm to 300 mm for versatile application fit.
- Surface quality of 60/40 ensures high optical performance.
- Available coatings include AR, uncoated, and HR for tailored optical properties.
- Customizable options available to meet specific project requirements.
- Protective bevel as needed enhances durability and usability.
Applications
Medical
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Meniscus |
| Diameter | 0.5 mm |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR), uncoated, high-reflective (HR) |
| Transmission bands | VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Convex Lens, Concave Lens; Spherical Singlet Lenses |
| Customized Support | OEM |
| Warranty | 1 month |
| Weight | 10-500g |
| Substrate | BK7, Fused Silica, Sapphire, etc |
| Surface Flatness | /2 |
| Bevel | Protective bevel as needed |
| Clear Aperture | ≥90% |
FAQ
Can I get custom sizes for the lens?
Yes, the lens is available in a diameter range from 0.5 mm to 300 mm, allowing for custom sizes.
What is the minimum order quantity (MOQ)?
The minimum order quantity (MOQ) is not specified, allowing for flexibility in ordering.
