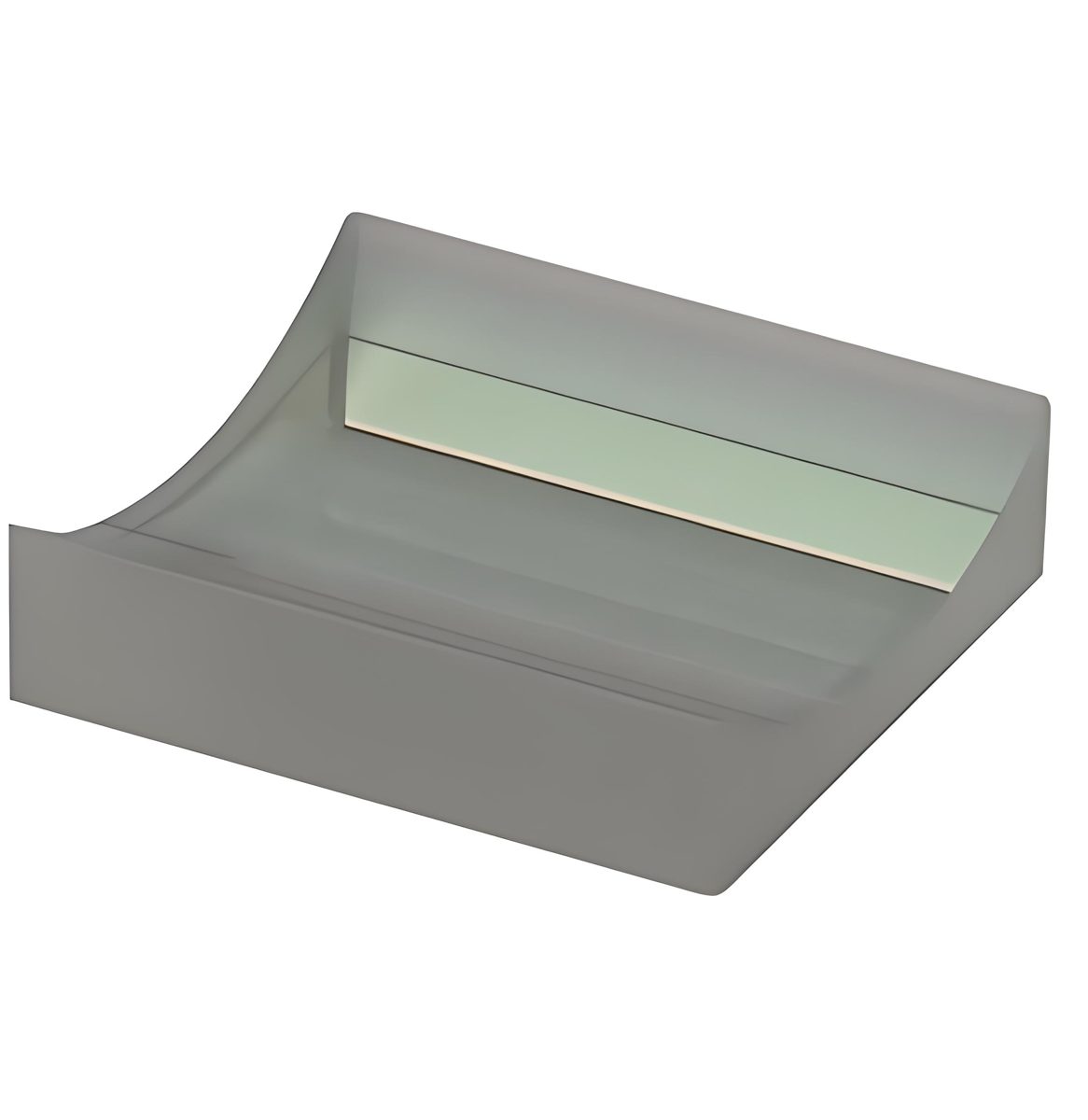

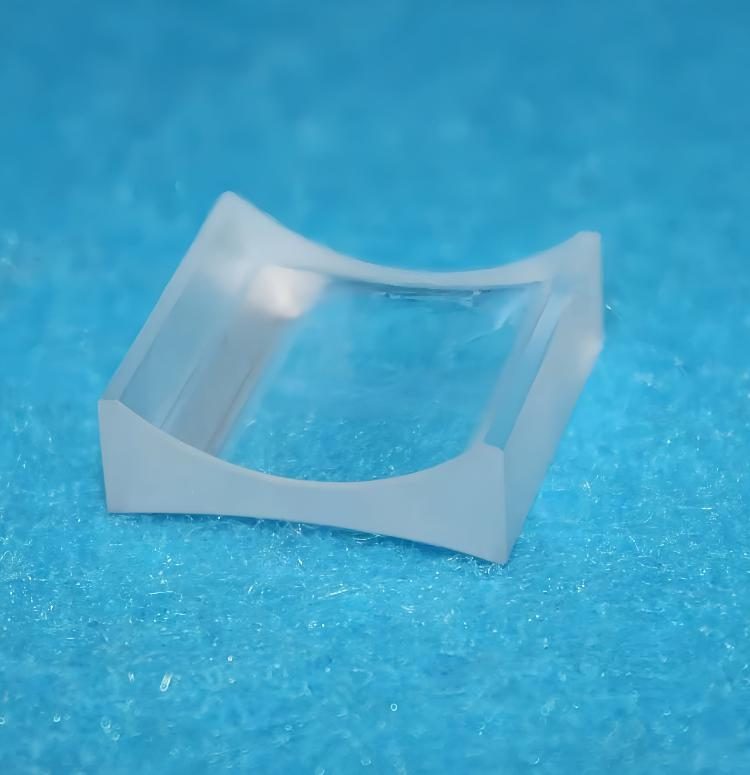

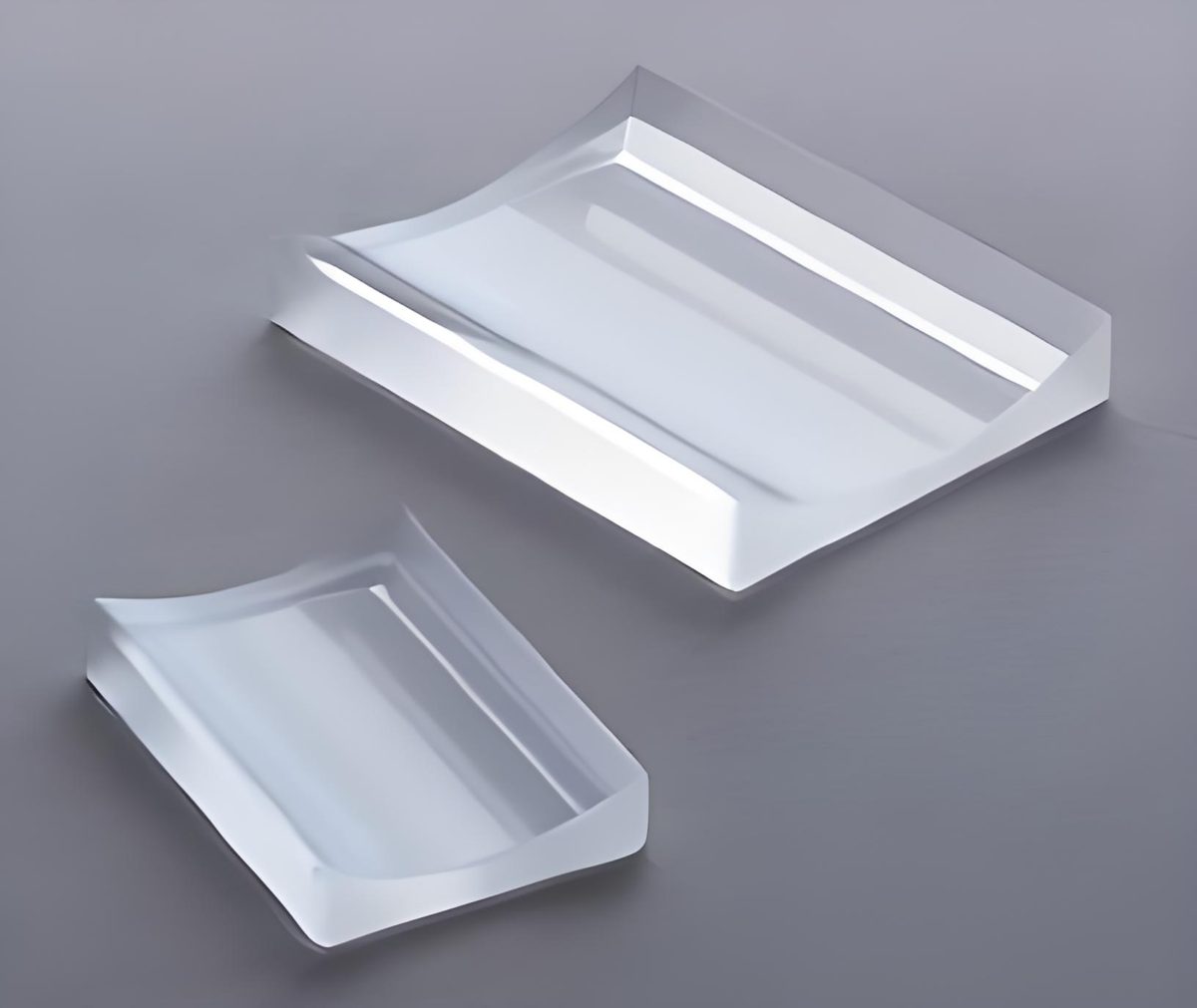

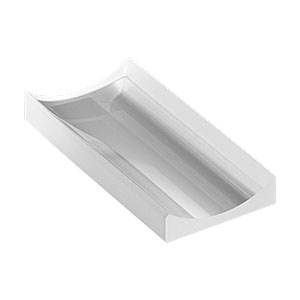

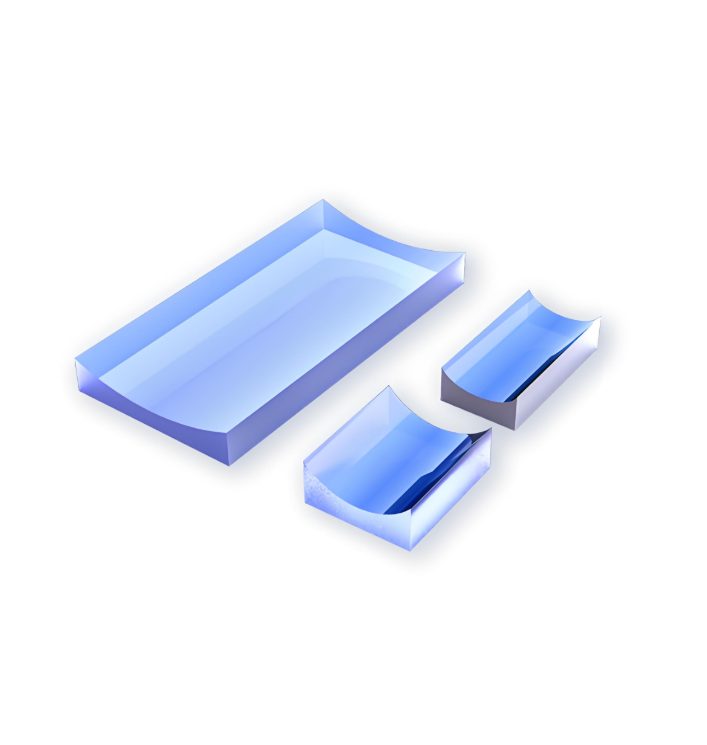

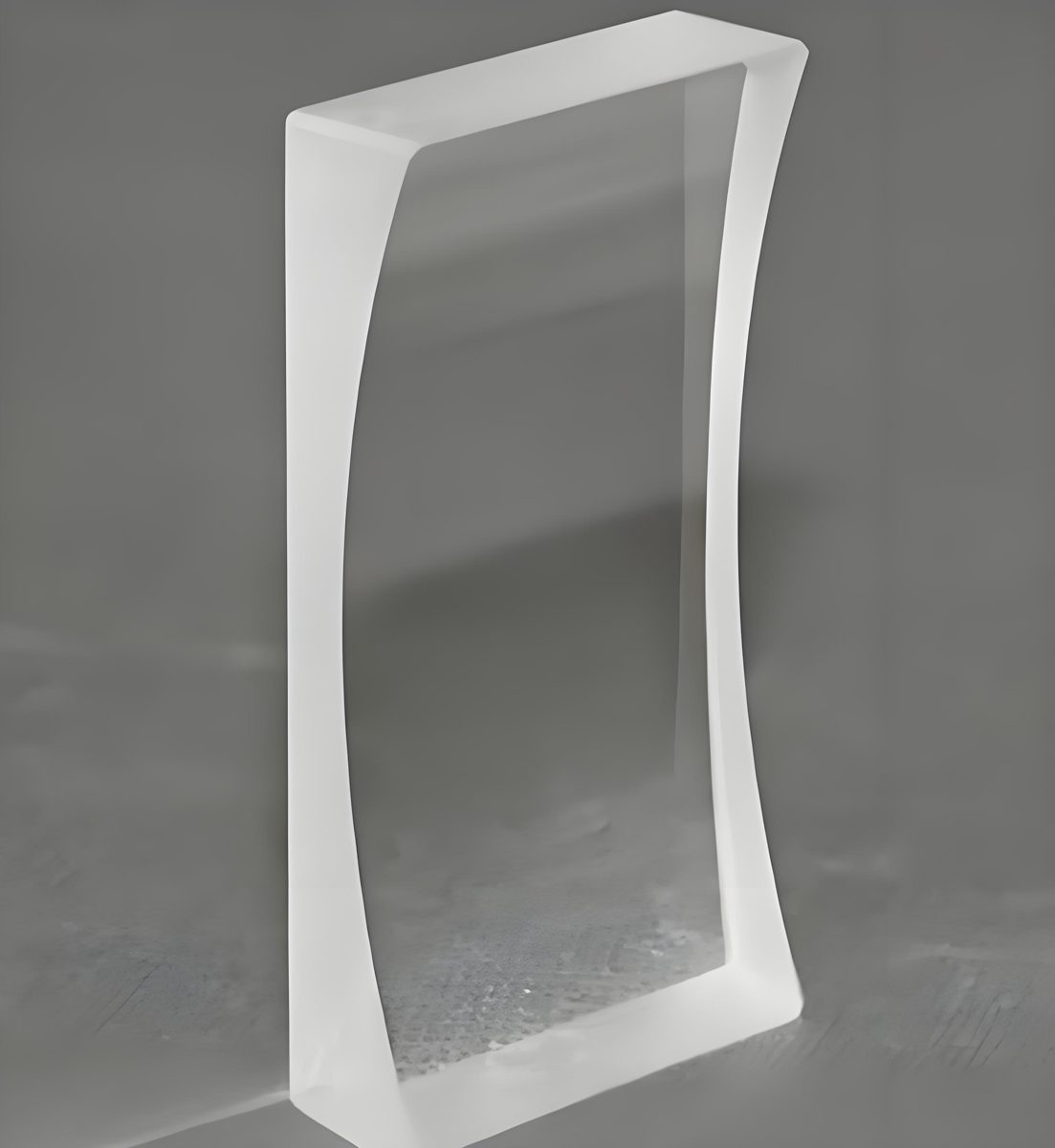

100 mm Fused Silica Meniscus Lens, AR Coated
Fused silica meniscus lens for projection and imaging with customizable options and high optical performance.
Core attributes
- Material
- Fused Silica
- Shape
- Meniscus
- Diameter
- 100 mm
- Surface Quality
- 40/20
- Coating
- anti-reflective (AR), diamond-like carbon (DLC)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Meniscus
- Diameter
- 100 mm
- Surface Quality
- 40/20
- Coating
- anti-reflective (AR), diamond-like carbon (DLC)
Product description
The meniscus lens made from fused silica is designed for applications in projection and imaging. With a diameter of 100 mm and a surface quality of 40/20, it ensures high optical performance and stability. This lens is ideal for precise beam shaping and line illumination in laser systems and optical instruments. Its clear transparency and customizable coatings enhance durability and transmission efficiency, making it suitable for various industrial and scientific applications.
Key Features
- Surface quality of 40/20 for optimal clarity and performance.
- Clear aperture greater than 90% ensures effective light transmission.
- Centricity tolerance of ±3 arc minutes for accurate alignment.
- Customizable coatings (AR, DLC) for enhanced durability.
- Lightweight design at 0.01 kg for easy integration.
Applications
Projection, Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Meniscus |
| Diameter | 100 mm |
| Surface Quality | 40/20 |
| Coating | anti-reflective (AR), diamond-like carbon (DLC) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Convex Lens, Fresnel Lens, Aspherical Lens, Concave Lens, Achromatic Lens, Plano… |
| Customized Support | OEM, ODM, OBM |
| Warranty | 1 Year |
| Weight | 0.01 |
| Focal Length Tolerance | ±1% |
| Clear Aperture | >90% |
| Color | Clear transparent |
| Tolerance | ±0.1mm |
| Surface Figure | lambda/2 @632.8nm |
| Centration | ±3 arc minutes |
| Effective Focal Length | ±5mm~±1000mm |
FAQ
Can this lens be customized in size?
Yes, the lens can be customized in size and coating options.
What is the tolerance for thickness?
The thickness tolerance for this lens is ±0.1 mm.
