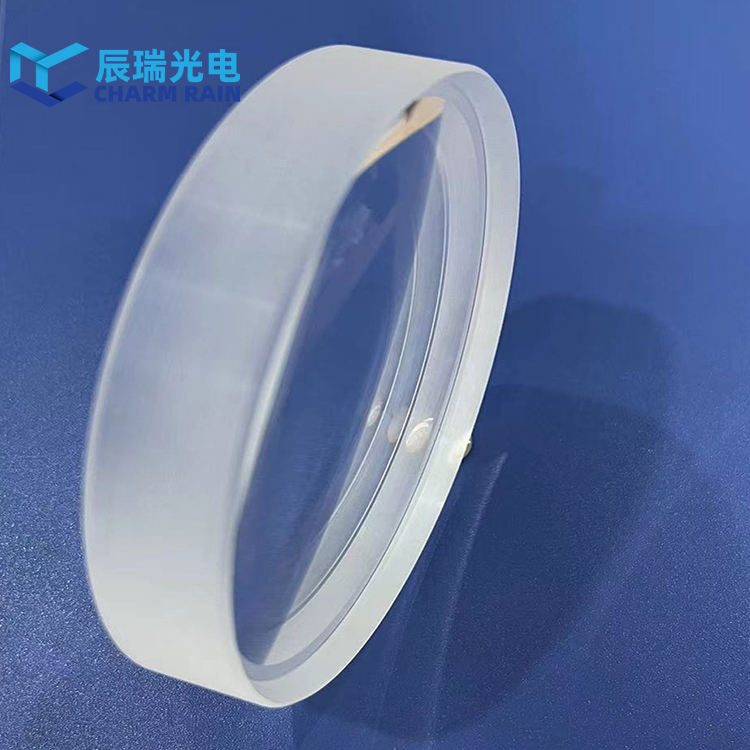

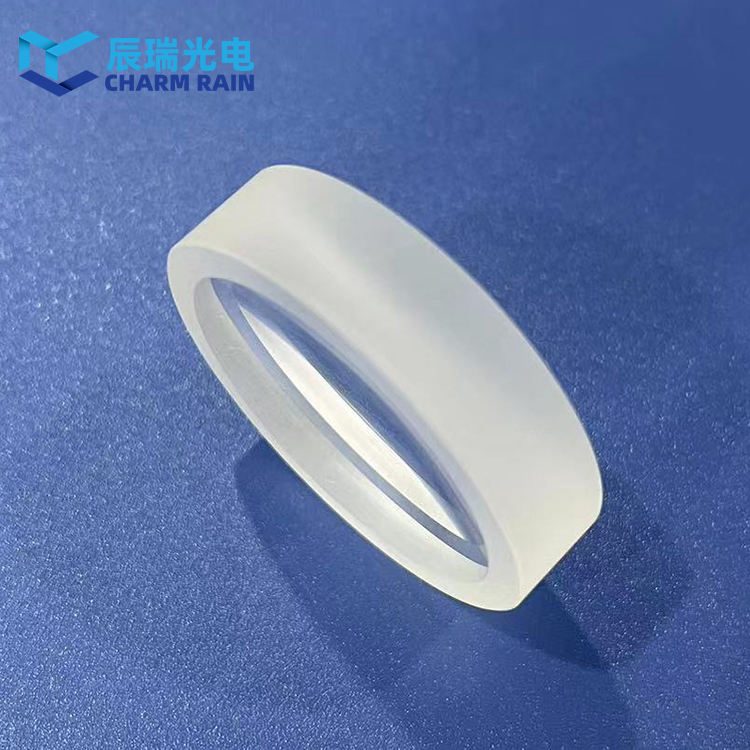

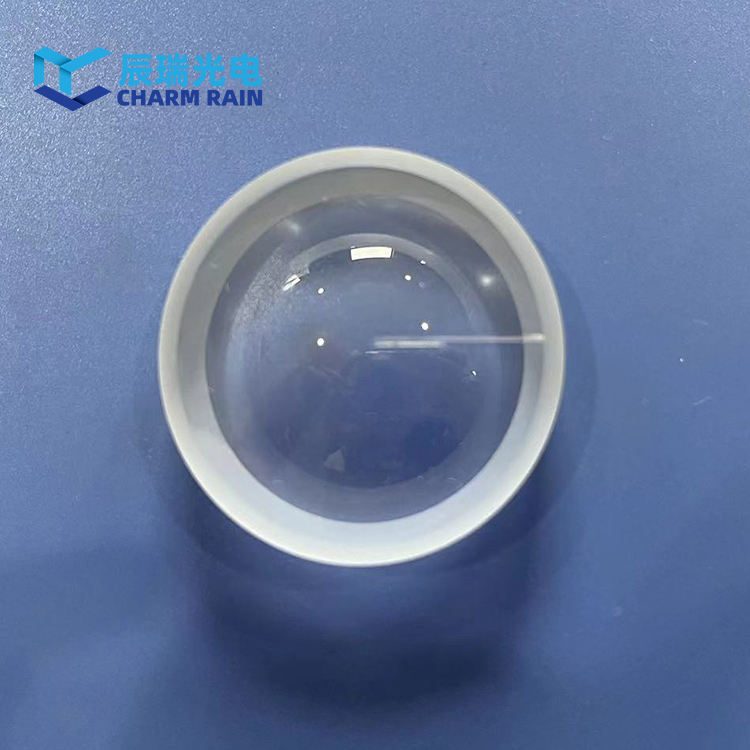

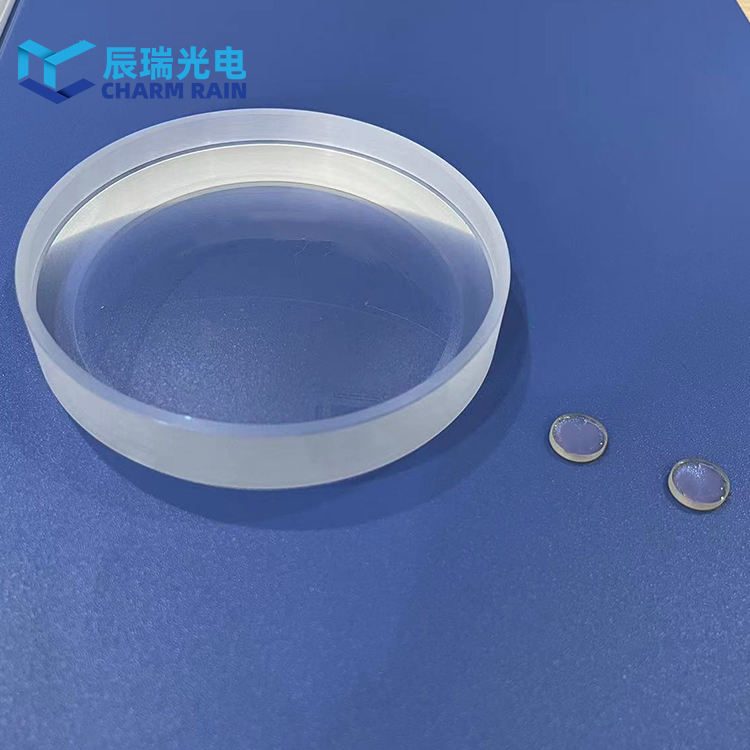

16x34 mm Fused Silica Meniscus Lens

Product description

The meniscus lens made from Fused Silica is designed for applications requiring high transmittance in the ultraviolet band (<400 nm). With a diameter of 16 mm and a focal length of 34 mm, this lens provides excellent optical performance with a surface quality of 60/40 and a transmittance of 95%. Ideal for precision optics in IR imaging, LIDAR, and other advanced optical systems, it ensures reliability and consistency in demanding environments.

Key Features

High transmittance of 95% for optimal light transmission.
Diameter tolerance of ±0.1 mm ensures precise fitting.
Manufactured from Fused Silica for superior thermal stability.
Customizable with OEM and ODM support for tailored solutions.
Lightweight design at 0.5 kg (1.10 lb) for easy integration.

Available Sizes

Diameter x Focal Length (mm)
16 x 34

Specification Summary

Item	Value
Material	Fused Silica
Shape	Meniscus
Diameter	16 mm
Focal Length	34 mm
Surface Quality	60/40
Transmittance	95%
Coating	uncoated, anti-reflective (AR)
Transmission bands	UV (<400 nm)

Full Specifications

Parameter	Value
Type	meniscus lens
Customized Support	OEM, ODM
Warranty	3 month
Weight	0.5kg(1.10lb)
Diameter Tolerance	±0.1mm
Transmittance	95%
Parallel	30 Arc Sec

FAQ

What are the available custom sizes?

The lens is available in a diameter of 16 mm with a focal length of 34 mm, and can be customized within a size range of 5 mm to 400 mm.

What is the minimum order quantity (MOQ)?

The MOQ is not specified, allowing for flexible ordering based on project needs.
