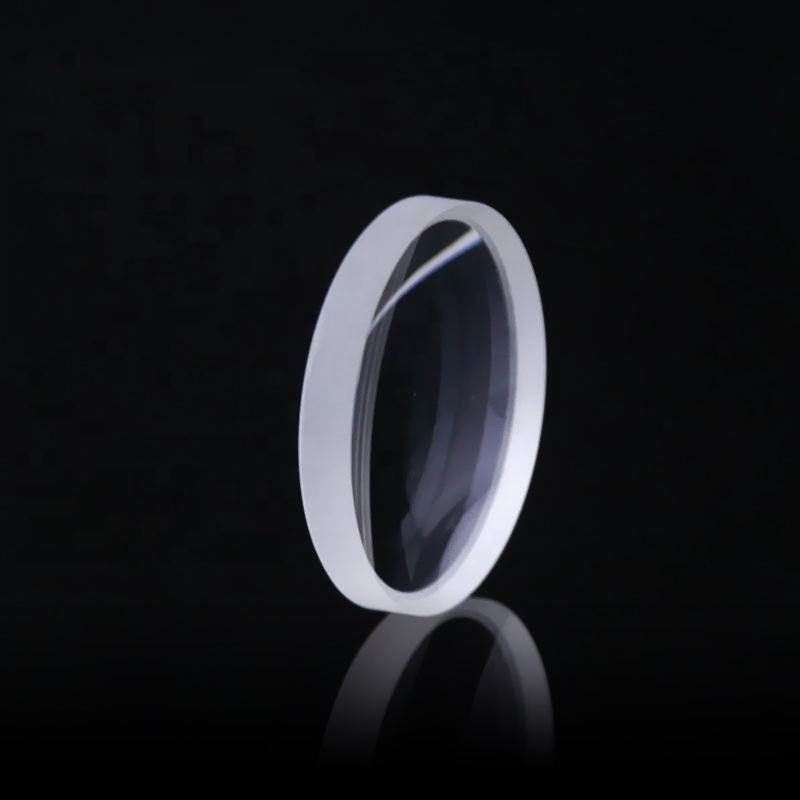

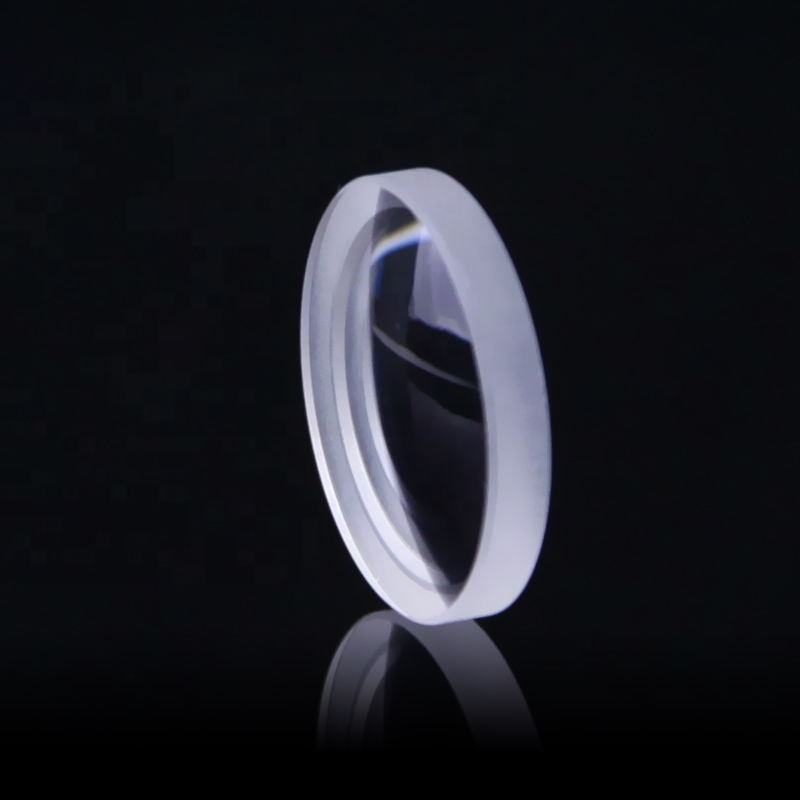

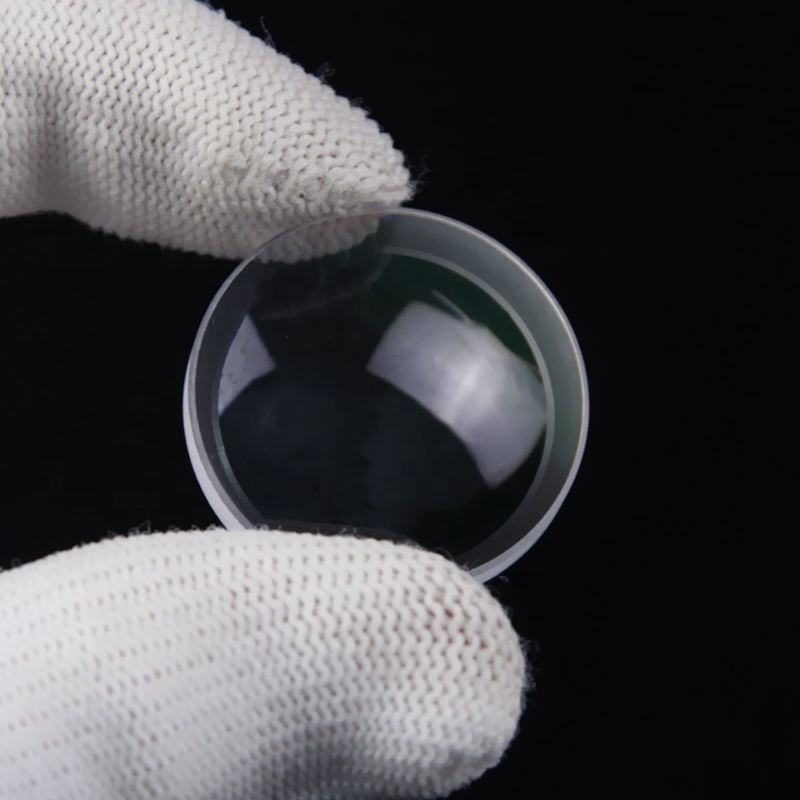

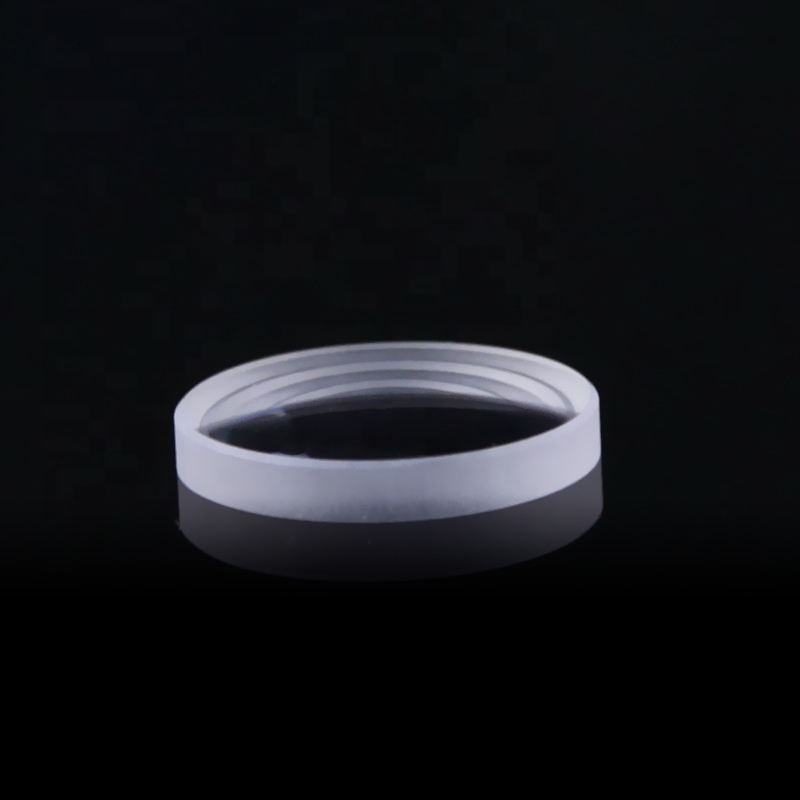

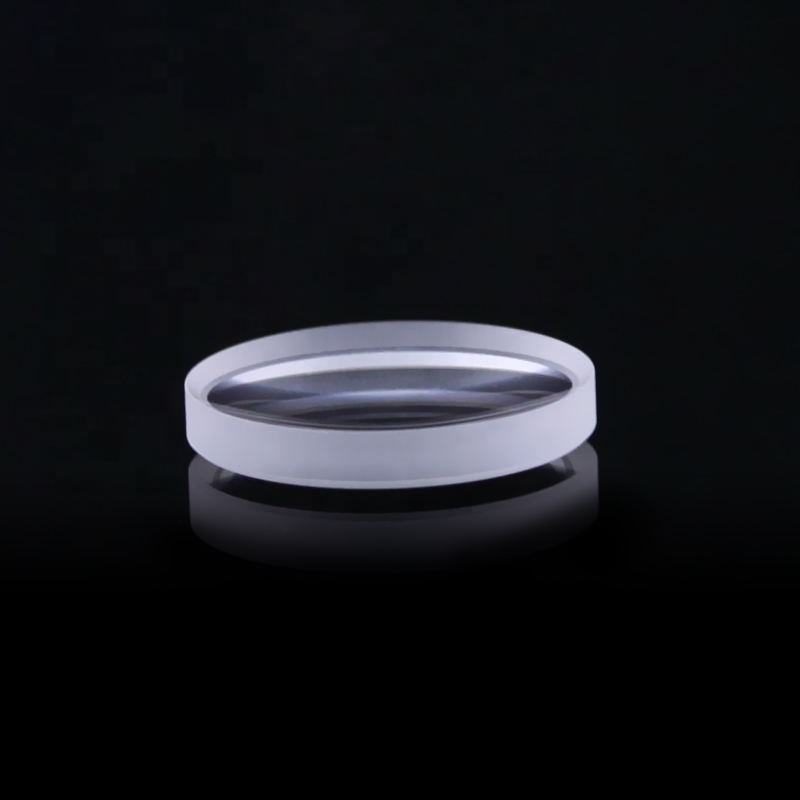

1x1 mm Fused Silica Meniscus Lens, AR Coated

Product description

This meniscus lens made from Fused Silica is ideal for applications in optical equipment, particularly in the 0.7-1.7 μm and 400-700 nm wavelength ranges. Its versatility allows it to be used in various fields including IR imaging, LIDAR, and medical devices. With a diameter range from 1.0 mm to 500.0 mm and a focal length from 1.0 mm to 1000.0 mm, this lens can meet diverse project requirements while providing consistent performance.

Key Features

Diameter range: 1.0 mm to 500.0 mm for versatile applications.
Focal length options from 1.0 mm to 1000.0 mm for tailored solutions.
Surface quality of 60/40 ensures reliable optical performance.
AR coating enhances transmittance across 400-700 nm for improved efficiency.
Custom sizes available with a diameter tolerance of +/-0.1 mm.

Available Sizes

Diameter x Focal Length (mm)
250.5 x 500.5

Specification Summary

Item	Value
Material	Fused Silica
Shape	Meniscus
Diameter	1 mm
Focal Length	1 mm
Surface Quality	60/40
Coating	anti-reflective (AR)
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)

Full Specifications

Parameter	Value
Type	Meniscus Lens
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Weight	0.05
Diameter Tolerance	+/-0.1
Surface Flatness	1/4@633nm
Clear Aperture	>=central 95% of diameter

FAQ

Can I get custom sizes for this lens?

Yes, custom sizes are available, including diameters from 1.0 mm to 500.0 mm.

What is the minimum order quantity (MOQ)?

The MOQ is not specified, allowing for flexibility in orders.
