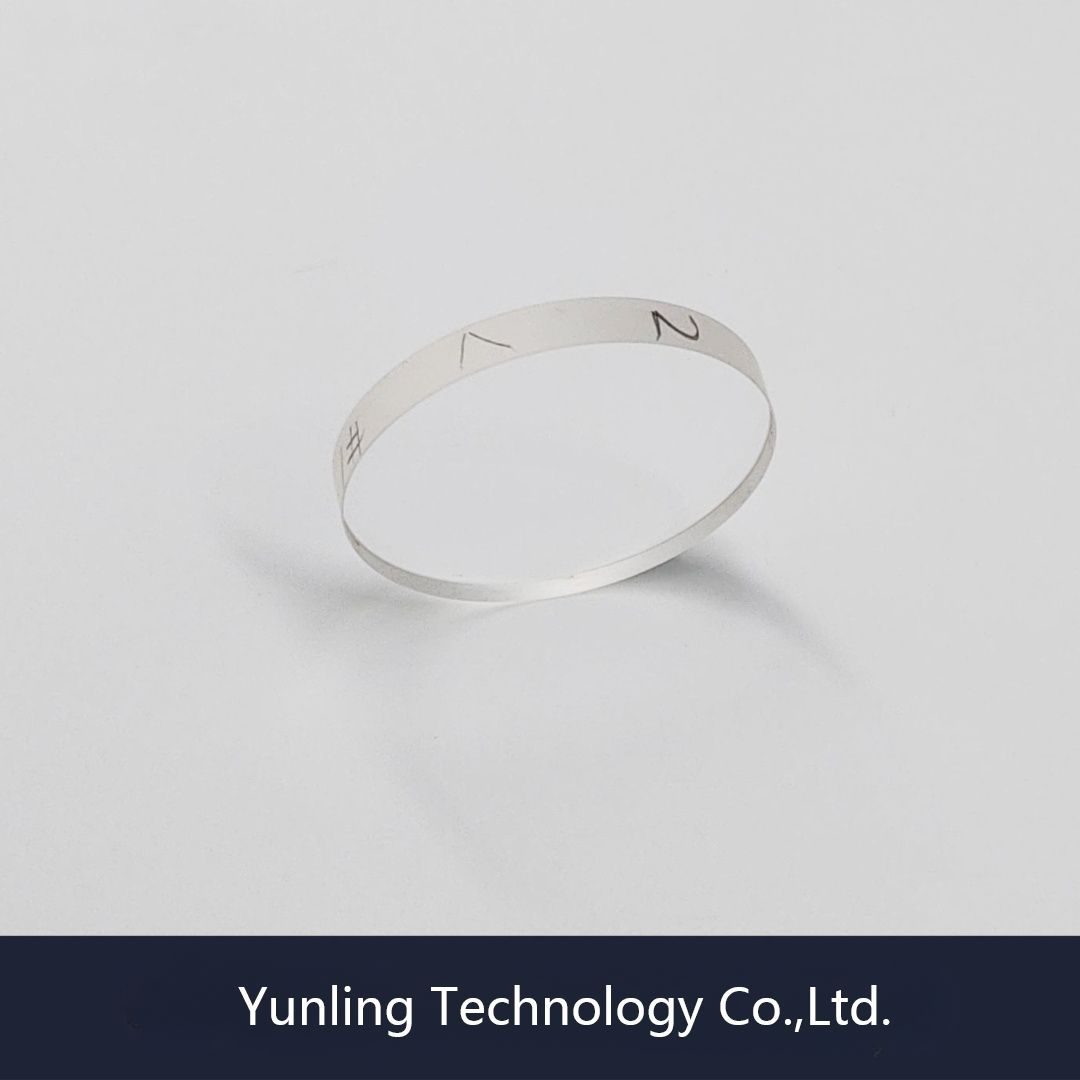

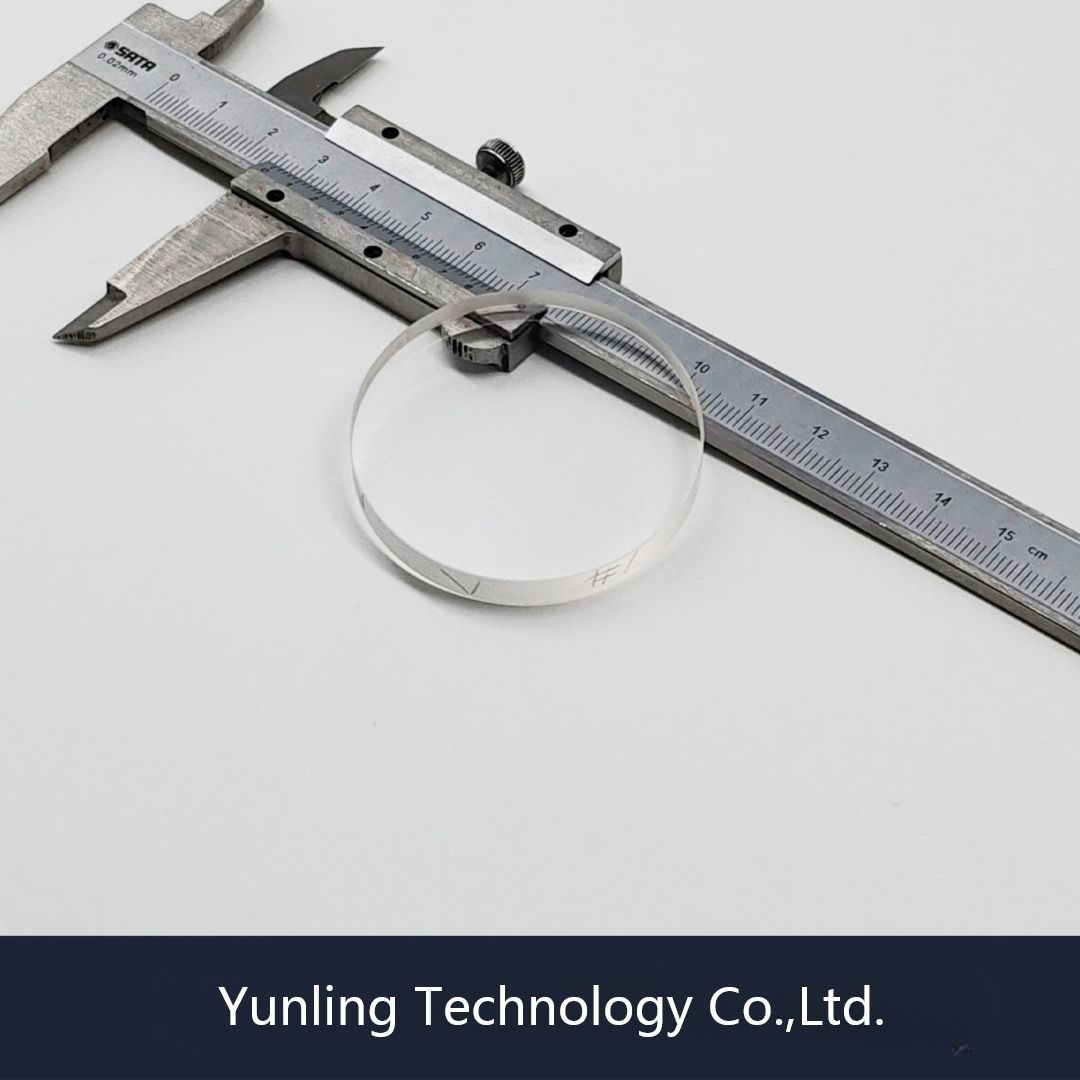

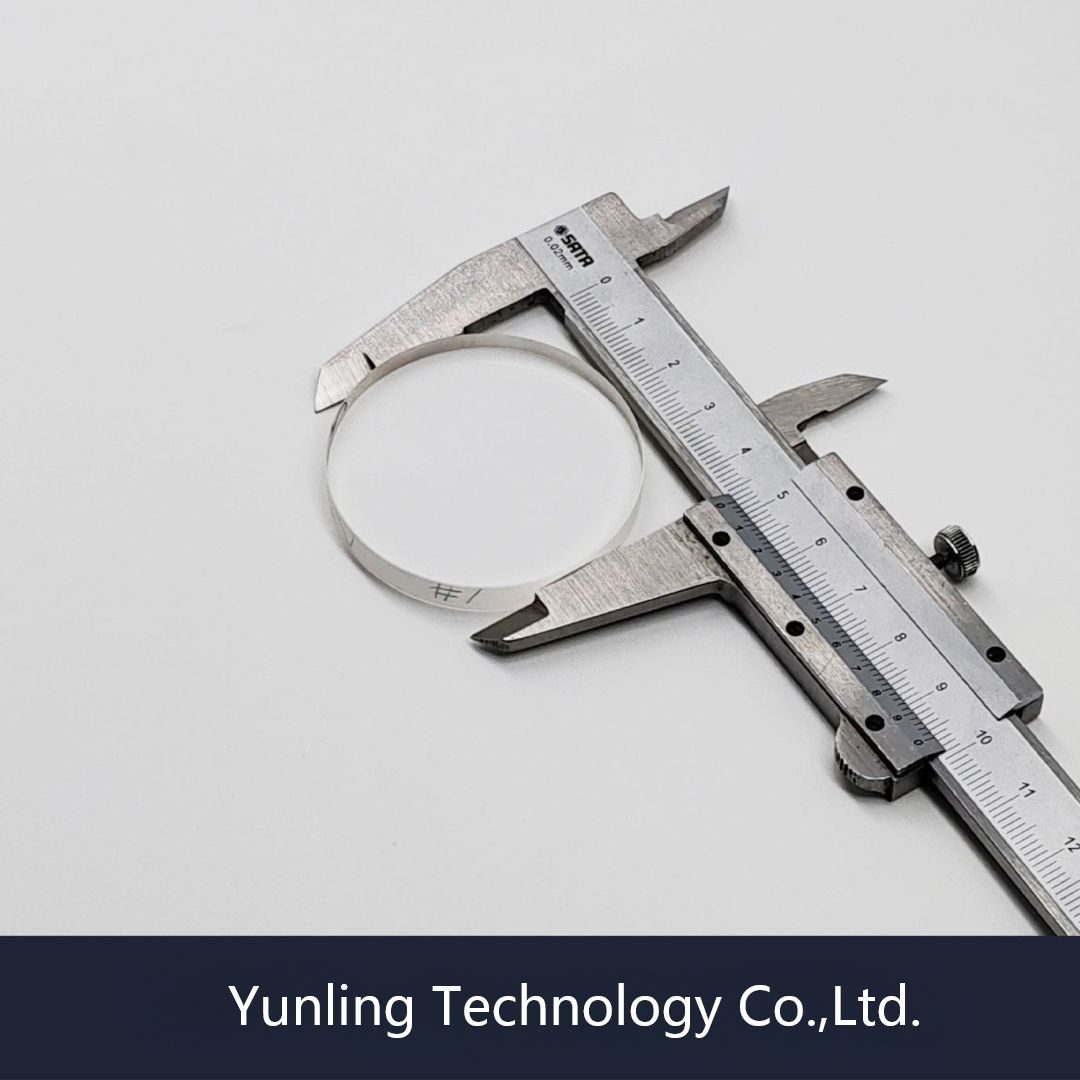

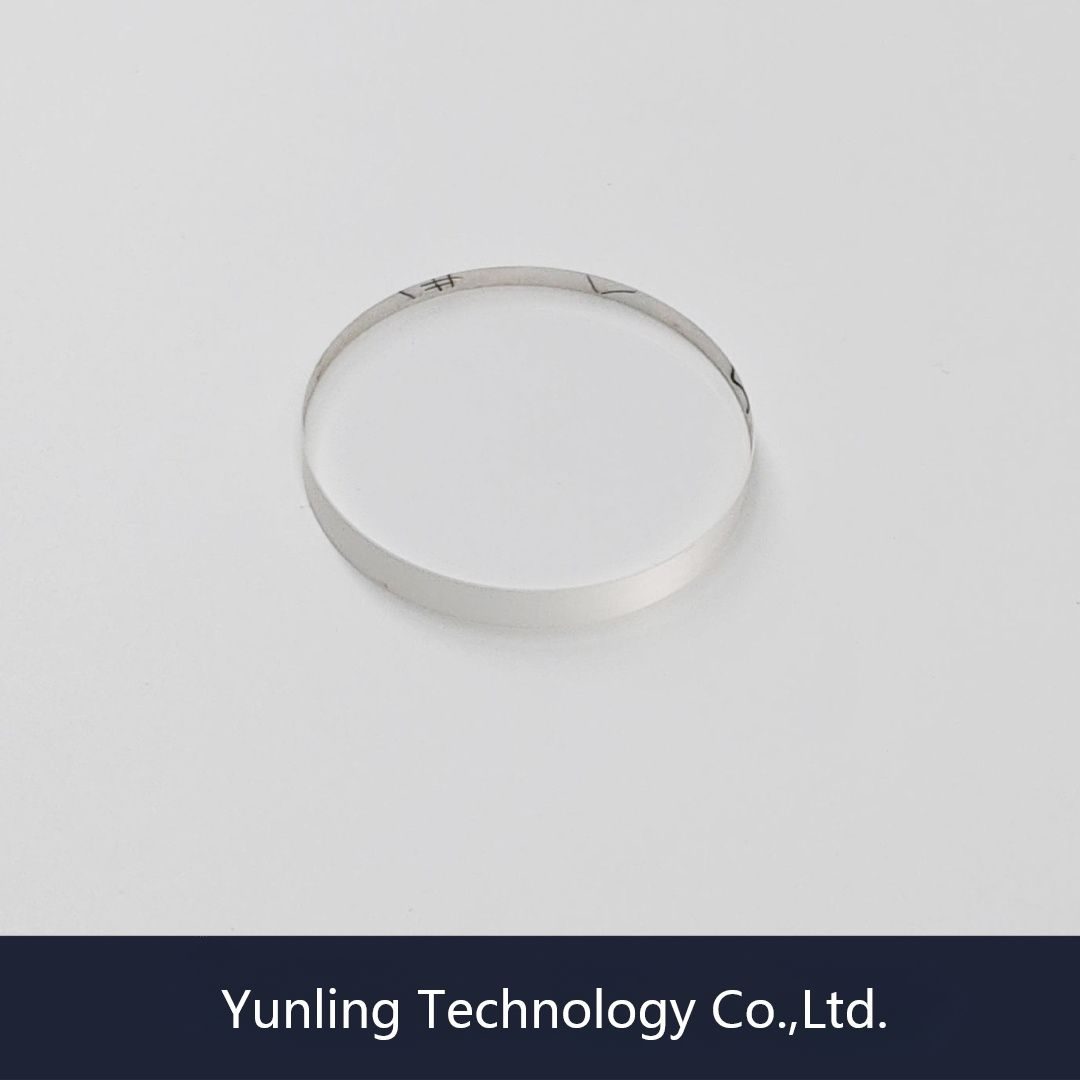

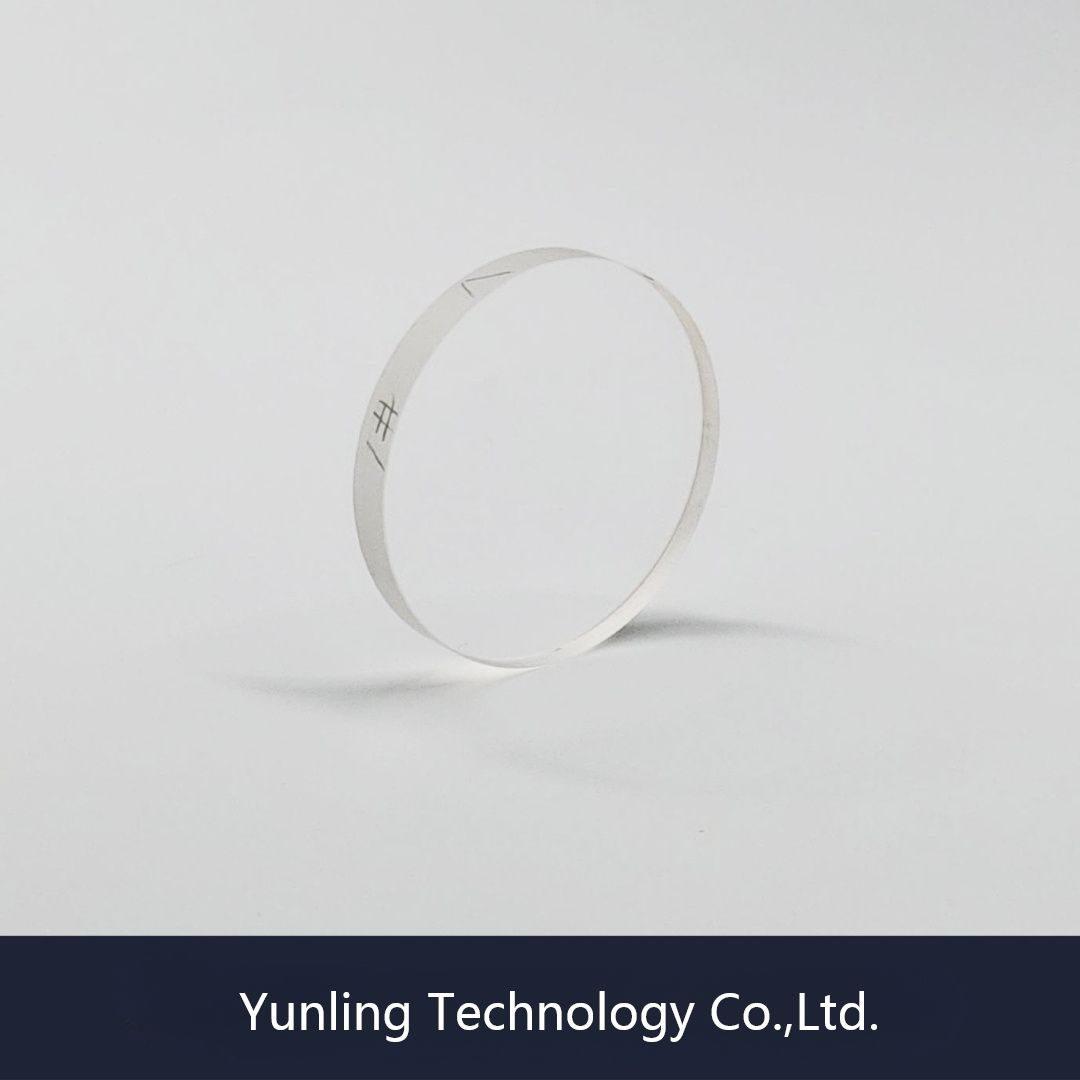

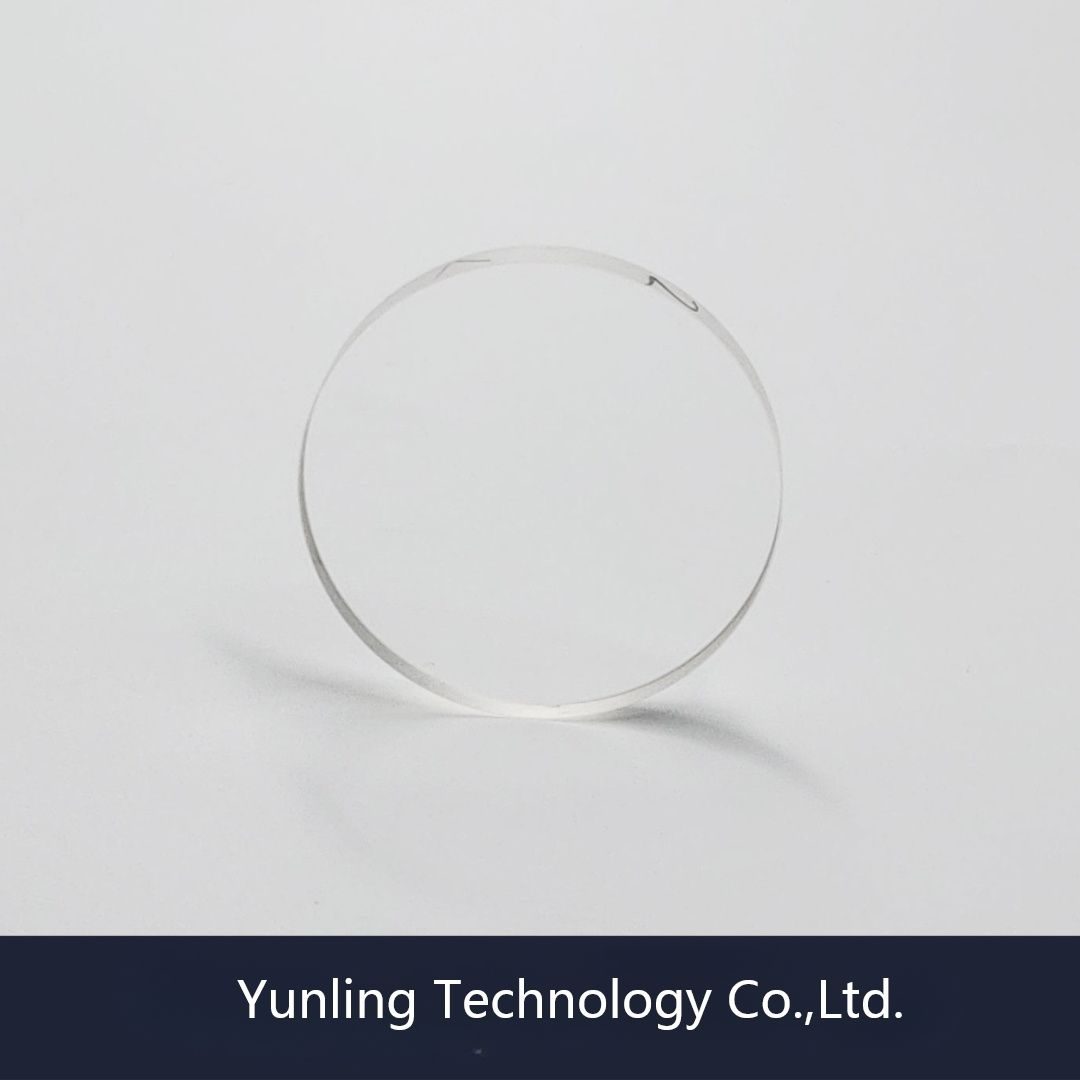

2 mm Fused Silica Meniscus Lens, AR Coated

Product description

This meniscus lens made from fused silica is designed for imaging applications within the 0.7-1.7 μm wavelength range. Its optical-grade clarity and anti-reflective coating ensure superior performance, making it ideal for high-performance setups like 755nm laser machines. With a diameter range from 2.0 mm to 300.0 mm, this lens offers versatility for various applications while maintaining durability and precision.

Key Features

Wavelength range: 0.7-1.7 μm for optimal imaging performance.
Diameter options: 2.0 mm to 300.0 mm for versatile application fit.
Surface quality: 1/4 for high optical performance.
Anti-reflective coating reduces glare, enhancing imaging quality.
Customized support available for OEM solutions.

Applications

Imaging

Specification Summary

Item	Value
Material	Fused Silica
Shape	Meniscus
Diameter	2 mm
Surface Quality	1/4
Coating	anti-reflective (AR)
Transmission bands	NIR (0.7-1.7 μm)

Full Specifications

Parameter	Value
Type	Protective Window; Meniscus lens
Customized Support	OEM
Weight	1kg(2.20lb)
Diameter Tolerance	+0/-0.1mm
Bevel	<0.35mm

FAQ

What are the available sizes for this lens?

The lens is available in diameters ranging from 2.0 mm to 300.0 mm.

What is the diameter tolerance for this lens?

The diameter tolerance is +0/-0.1 mm.
