1 / 6Optical Filters

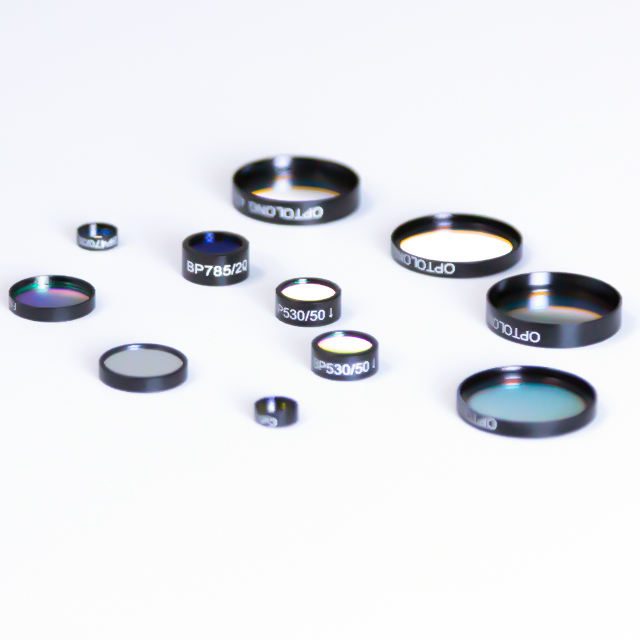

10 mm Fused Silica Optical Filter
Bandpass filter with 85% transmittance, 534 nm center wavelength, and customizable options for various optical applications.
Core attributes
- Material
- Fused Silica
- Size
- 10 mm
- Thickness
- Custom
- Surface Quality
- 60/40
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 534nm
- Coating
- iad-pvd
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Size
- 10 mm
- Thickness
- Custom
- Surface Quality
- 60/40
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 534nm
- Coating
- iad-pvd
- Transmission bands
- VIS (400-700 nm)
Product description

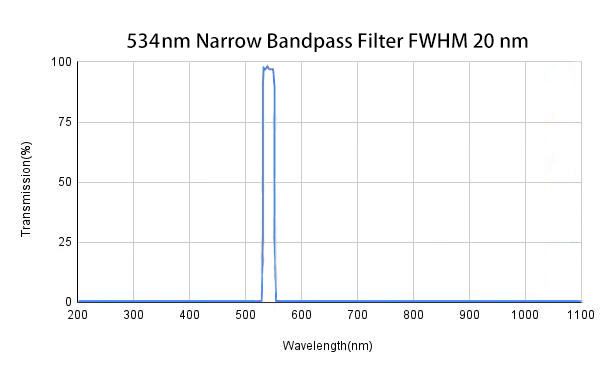

This bandpass filter is designed for applications requiring precise wavelength selection in the 400-700 nm range, with a center wavelength of 534 nm and a full width at half maximum (FWHM) of 20 nm. With a high transmittance of 85%, it effectively allows desired wavelengths to pass while blocking unwanted light, making it ideal for fluorescence microscopy and other optical applications. The filter is made from durable fused silica and features an ion-assisted deposition (IAD-PVD) coating for enhanced performance.
Key Features
- High transmittance of 85% ensures effective light passage for optimal performance.
- Center wavelength of 534 nm tailored for specific fluorescence applications.
- Durable fused silica material offers excellent environmental stability.
- Customizable options available, including OEM, ODM, and OBM support.
- Tolerance of ±3 mm allows for precise fitting in various setups.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Size | 10 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Transmittance | 85% |
| Filter Type | bandpass |
| Cwl | 534nm |
| Coating | iad-pvd |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Manufacture | Double sided polishing |
| Materials | B270,JGS1,D263T,N-BK7 |
| Tolerance | ±3 mm |
| Transmission | >90% |
| Shipment | Express delivery,Air,Sea |
| Fwhm | 20nm |
FAQ
Can I get custom sizes for this filter?
Yes, the filter offers customizable options, including OEM, ODM, and OBM support.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified, allowing for flexible procurement.
