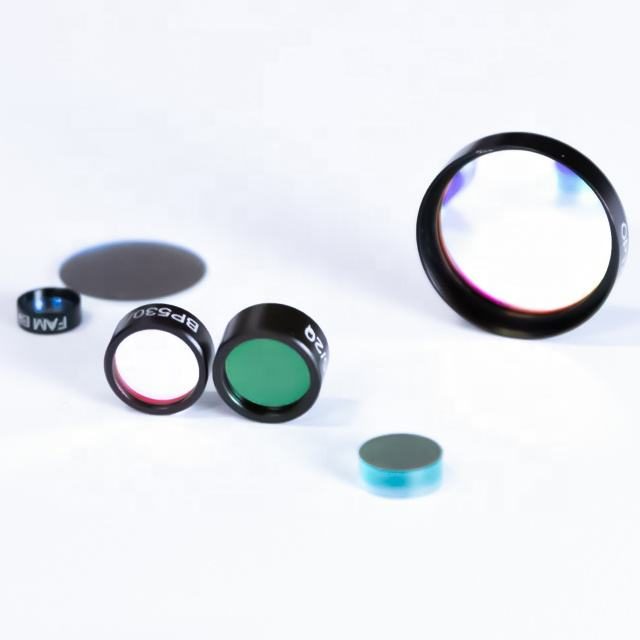

14x0.3 mm Fused Silica Optical Filter
520 nm bandpass filter with 85% transmittance, customizable sizes, and iad-pvd coating for optimal performance.
Core attributes
- Material
- Fused Silica
- Size
- 14 mm
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 520nm
- Fwhm
- 30nm
- Coating
- iad-pvd
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Size
- 14 mm
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 520nm
- Fwhm
- 30nm
- Coating
- iad-pvd
- Transmission bands
- VIS (400-700 nm)
Product description

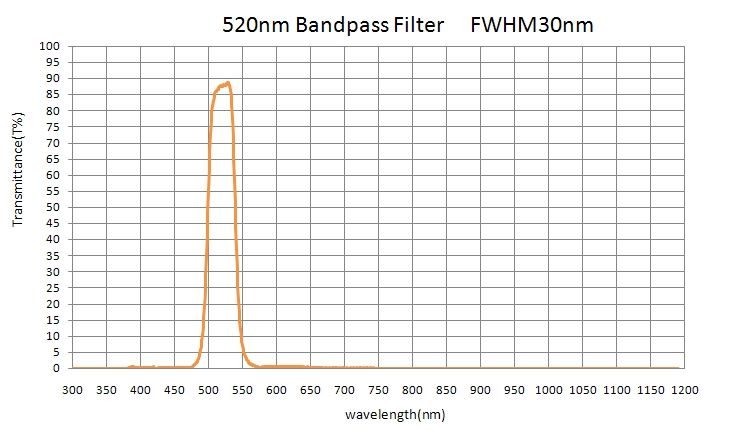

The 520 nm bandpass filter is designed for applications requiring precise wavelength selection in the 400-700 nm range. With a center wavelength of 520 nm and a full width at half maximum (FWHM) of 30 nm, this filter effectively transmits light while blocking unwanted wavelengths. Its high transmittance of 85% ensures optimal performance in fluorescence microscopy, machine vision, and other optical applications.
Key Features
- High transmittance of 85% for efficient light throughput.
- Bandpass filter type for selective wavelength transmission.
- Available in customizable sizes with a thickness range of 0.3 to 5.0 mm.
- Surface quality of 40/20 for minimal distortion.
- Coated with iad-pvd for enhanced durability.
Available Sizes
| Size x Thickness (mm) |
|---|
| 14 x 2.6 |
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Size | 14 mm |
| Thickness | 0.3 mm |
| Surface Quality | 40/20 |
| Transmittance | 85% |
| Filter Type | bandpass |
| Cwl | 520nm |
| Fwhm | 30nm |
| Coating | iad-pvd |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85%; 90%; >85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Coating Region | Single-sided or double-sided |
| Substrate | B270,JGS1,Quartz Glass,Absorptive Glass |
| Tolerance | ± 0.10mm |
| Aoi | 0±5°, 0±45° |
| Certification | ISO9001,RoHs,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
Can I get custom sizes?
Yes, custom sizes are available, with a thickness range of 0.3 to 5.0 mm.
What are the tolerances for this filter?
The tolerances for this filter are ± 0.10 mm.
