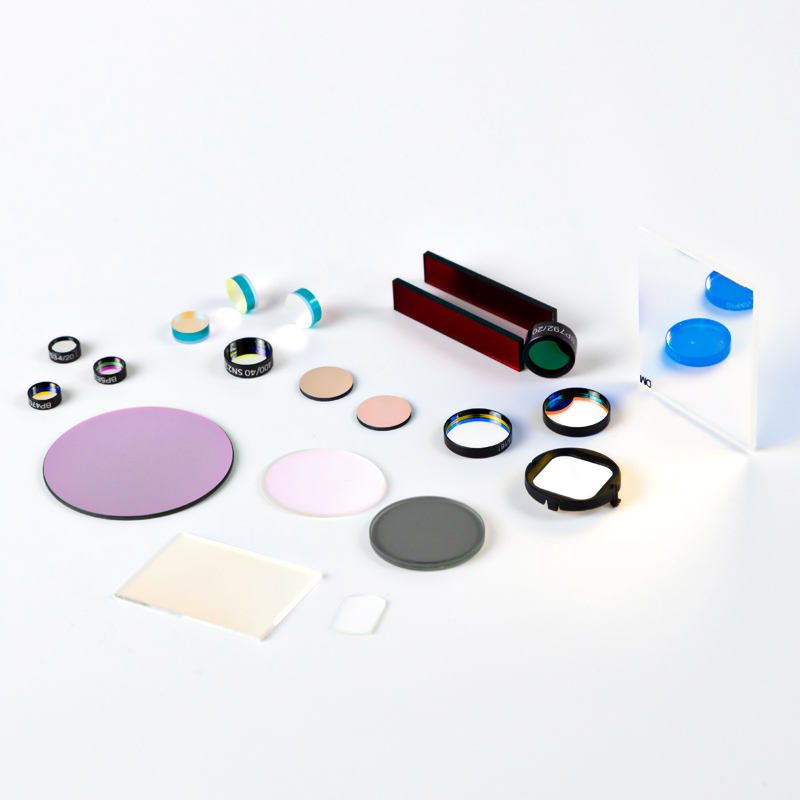

18x0.3 mm Fused Silica Optical Filter
High-performance bandpass filter with 85% transmittance, customizable sizes, and durable fused silica construction.
Core attributes
- Material
- Fused Silica
- Size
- 18 mm
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 770nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- Fused Silica
- Size
- 18 mm
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 770nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product description

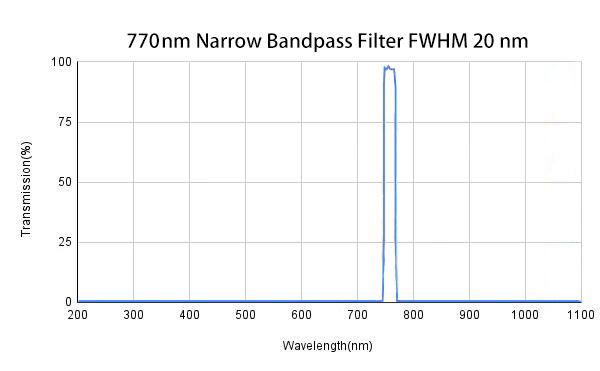

This bandpass filter is designed for applications requiring high transmittance in the 0.7-1.7 μm range, with a center wavelength of 770 nm. It features a transmittance of 85%, making it suitable for fluorescence microscopy and other optical applications. The filter is constructed from fused silica, ensuring durability and reliability in various environments, while the iad-pvd coating enhances performance. Custom sizes and thicknesses are available, catering to specific project needs.
Key Features
- Transmittance of 85% ensures optimal light throughput for enhanced imaging.
- Bandpass filter type effectively isolates desired wavelengths for precise applications.
- Available in custom sizes (18.0 mm) and thicknesses (0.3 to 5.0 mm) to fit specific requirements.
- Durable fused silica substrate provides environmental stability and longevity.
- Supports OEM, ODM, and OBM for tailored solutions.
Available Sizes
| Size x Thickness (mm) |
|---|
| 18 x 2.6 |
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Size | 18 mm |
| Thickness | 0.3 mm |
| Surface Quality | 40/20 |
| Transmittance | 85% |
| Filter Type | bandpass |
| Cwl | 770nm |
| Coating | iad-pvd |
| Transmission bands | NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85%; >80-95% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Coating Region | Single-sided or double-sided |
| Substrate | B270,JGS1,Quartz Glass,Absorptive Glass |
| Tolerance | ± 0.10mm |
| Blocking Density | OD2-OD6 |
| Certification | ISO9001,RoHs,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
What custom sizes are available?
The filter is available in a standard size of 18.0 mm, with thicknesses ranging from 0.3 to 5.0 mm.
What is the tolerance for this filter?
The filter has a tolerance of ± 0.10 mm, ensuring fit accuracy for your applications.
