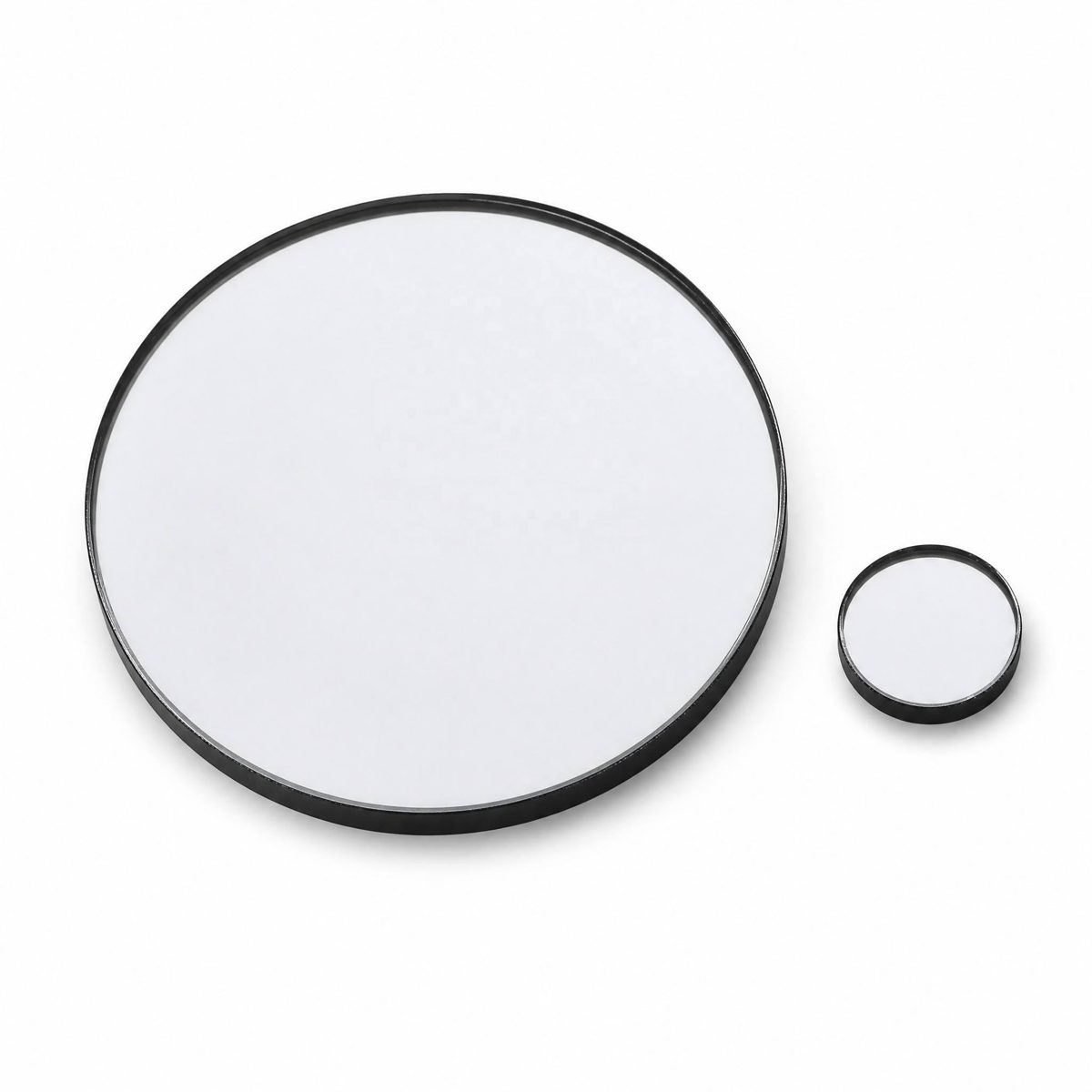

1x0.5 mm Fused Silica Optical Filter
UV Bandpass Filter with 20% transmittance, ideal for fluorescence and laser applications. Custom sizes available.
Core attributes
- Material
- Fused Silica
- Size
- 1 mm
- Thickness
- 0.5 mm
- Transmittance
- 20%
- Filter Type
- bandpass
- Cwl
- 297nm
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Size
- 1 mm
- Thickness
- 0.5 mm
- Transmittance
- 20%
- Filter Type
- bandpass
- Cwl
- 297nm
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product description
This UV Bandpass Filter is designed for applications in fluorescence microscopy, laser systems, and UV curing. With a center wavelength of 297 nm and a transmittance of 20%, it effectively allows specific wavelengths to pass while blocking unwanted light. The filter is made from durable fused silica, ensuring reliability in various environments. Its broad spectral response and low stray light enhance signal-to-noise ratios, making it ideal for precise measurements in life sciences and research applications.
Key Features
- Center Wavelength: 297 nm for precise optical applications.
- Transmittance: 20% for effective light passage.
- Material: Fused Silica for enhanced durability.
- Custom Sizes: Available in dimensions from 1.0 mm to 200.0 mm.
- Thickness Range: 0.5 mm to 3.0 mm for versatile integration.
Available Sizes
| Size x Thickness (mm) |
|---|
| 100.5 x 1.8 |
Applications
Fluorescence, Laser, Uv Curing
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Size | 1 mm |
| Thickness | 0.5 mm |
| Transmittance | 20% |
| Filter Type | bandpass |
| Cwl | 297nm |
| Transmission bands | SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 15-20% |
| Customized Support | OEM |
| Name | UV Filter |
| Substrate | Fused Silica |
| Tolerance | +/-0.05mm |
FAQ
Can I get custom sizes for this filter?
Yes, custom sizes are available, ranging from 1.0 mm to 200.0 mm.
What is the tolerance for this filter?
The tolerance for this filter is +/-0.05 mm.
