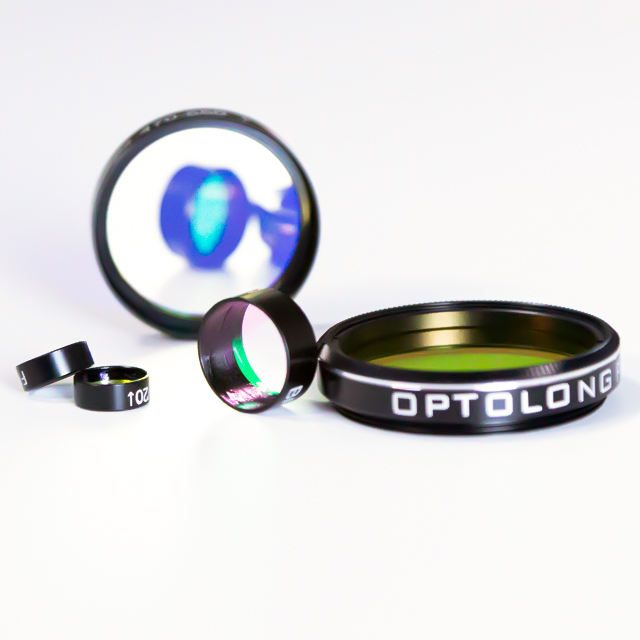

49x0.3 mm Fused Silica Optical Filter
Discover a 590nm bandpass filter with 85% transmittance, ideal for optical applications. Custom sizes available.
Core attributes
- Material
- Fused Silica
- Size
- 49 mm
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 590nm
- Fwhm
- 20nm
- Coating
- iad-pvd
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Size
- 49 mm
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 590nm
- Fwhm
- 20nm
- Coating
- iad-pvd
- Transmission bands
- VIS (400-700 nm)
Product description

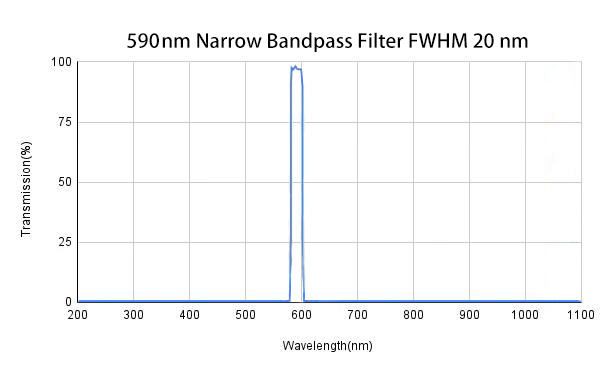

The 590nm bandpass filter is designed for applications requiring precise wavelength selection within the 400-700 nm range. With a center wavelength of 590nm and a FWHM of 20nm, it effectively transmits 85% of light while blocking unwanted wavelengths. Ideal for fluorescence microscopy and other optical applications, this filter ensures optimal performance and reliability.
Key Features
- 85% transmittance for enhanced light throughput.
- Bandpass filter type for selective wavelength transmission.
- Available in custom sizes (49mm) and thicknesses (0.3 to 5.0mm) to fit specific applications.
- Durable iad-pvd coating for environmental protection.
- Surface quality rated at 40/20 for minimal distortion.
Available Sizes
| Size x Thickness (mm) |
|---|
| 49 x 2.6 |
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Size | 49 mm |
| Thickness | 0.3 mm |
| Surface Quality | 40/20 |
| Transmittance | 85% |
| Filter Type | bandpass |
| Cwl | 590nm |
| Fwhm | 20nm |
| Coating | iad-pvd |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85%; >85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Coating Region | Single-sided or double-sided |
| Blocking Density | OD2-OD6 |
| Substrate | B270,JGS1,Quartz Glass,Absorptive Glass |
| Tolerance | ± 0.10mm |
| Certification | ISO9001,RoHs,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
Can this filter be customized?
Yes, custom sizes and thicknesses are available.
What is the minimum order quantity?
Minimum order quantity information is not specified.
