1 / 6Optical Filters

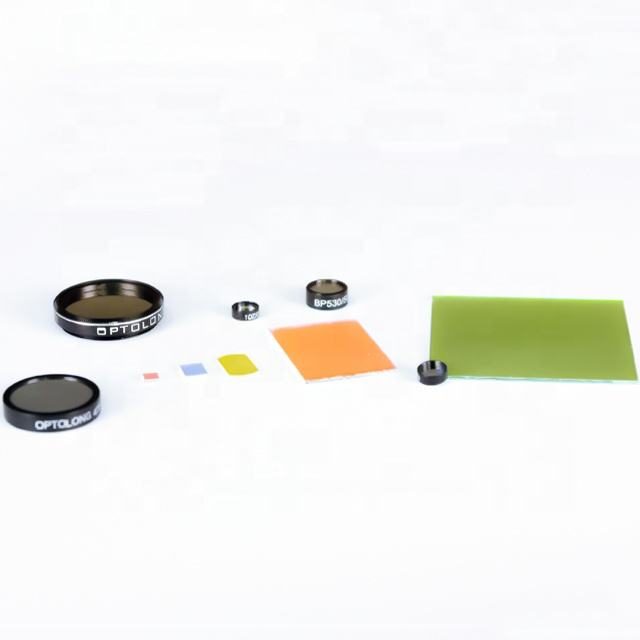

50x0.3 mm Fused Silica Optical Filter
Explore our 532nm bandpass filter with 85% transmittance, ideal for fluorescence microscopy and laser applications.
Core attributes
- Material
- Fused Silica
- Size
- 50 mm
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 532nm
- Coating
- iad-pvd
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Size
- 50 mm
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 532nm
- Coating
- iad-pvd
- Transmission bands
- VIS (400-700 nm)
Product description
This 532nm bandpass filter is designed for applications requiring high transmittance in the 400-700 nm range. With a transmittance of 85% and blocking density of OD2-OD5, it effectively isolates the desired wavelength while minimizing unwanted light. Ideal for fluorescence microscopy and laser applications, this filter ensures reliable performance in demanding environments.
Key Features
- Transmittance of 85%; ensures effective light transmission for optimal imaging.
- Blocking density of OD2-OD5; minimizes background interference for clearer results.
- Available in custom sizes (50mm x 50mm); tailored solutions for specific applications.
- Surface quality of 40/20; guarantees high optical clarity and performance.
- Coating options include single-sided or double-sided; enhances durability and functionality.
Available Sizes
| Size x Thickness (mm) |
|---|
| 50 x 2.6 |
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Size | 50 mm |
| Thickness | 0.3 mm |
| Surface Quality | 40/20 |
| Transmittance | 85% |
| Filter Type | bandpass |
| Cwl | 532nm |
| Coating | iad-pvd |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85%; >80-95% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Coating Region | Single-sided or double-sided |
| Blocking Density | OD2-OD5 |
| Substrate | B270,JGS1,Quartz Glass,Absorptive Glass |
| Tolerance | ± 0.10mm |
| Certification | ISO9001,RoHs,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
Can I order custom sizes?
Yes, custom sizes are available, with a standard size of 50mm x 50mm offered.
What is the tolerance for this filter?
The tolerance for this filter is ± 0.10mm.
