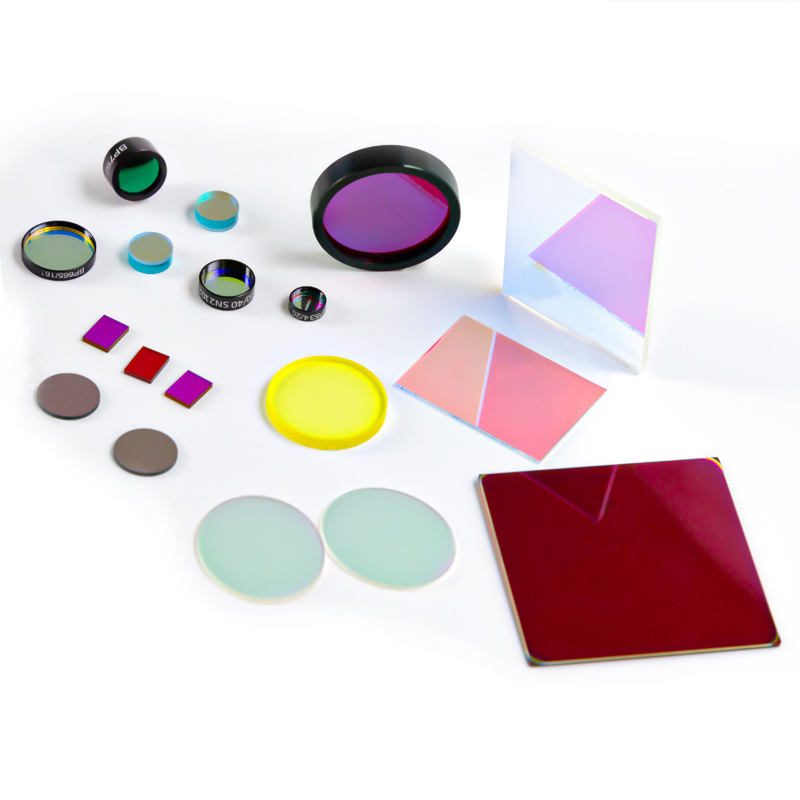

58 mm Fused Silica Optical Filter
High-performance bandpass filter at 850 nm with 95% transmittance, ideal for fluorescence microscopy and optical applications.
Core attributes
- Material
- Fused Silica
- Size
- 58 mm
- Thickness
- Custom
- Surface Quality
- 40/20
- Transmittance
- 95%
- Filter Type
- bandpass
- Cwl
- 850nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- Fused Silica
- Size
- 58 mm
- Thickness
- Custom
- Surface Quality
- 40/20
- Transmittance
- 95%
- Filter Type
- bandpass
- Cwl
- 850nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product description

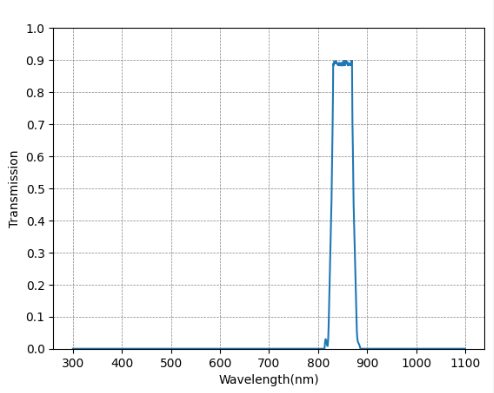

This bandpass filter is designed for applications requiring high transmittance in the 0.7-1.7 μm range, specifically centered at 850 nm. With a transmittance of 95%, it effectively allows the desired wavelengths to pass while blocking unwanted light, making it ideal for fluorescence microscopy and other optical applications. The filter is made from fused silica and coated with iad-pvd for enhanced durability and performance.
Key Features
- High transmittance of 95% ensures optimal light passage for enhanced imaging.
- Bandpass filter type designed for specific wavelength applications.
- Customized support available for OEM, ODM, and OBM needs.
- Manufactured with double-sided polishing for superior surface quality (40/20).
- Blocking density ranges from OD2 to OD6, providing effective light suppression.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Size | 58 mm |
| Thickness | Custom |
| Surface Quality | 40/20 |
| Transmittance | 95% |
| Filter Type | bandpass |
| Cwl | 850nm |
| Coating | iad-pvd |
| Transmission bands | NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 95% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Coating Region | Single-sided or double-sided |
| Blocking Density | OD2-OD6 |
| Manufacture | Double sided polishing |
| Substrate | B270,JGS1,Quartz Glass |
| Tolerance | ± 0.10mm |
| Certification | ISO9001,RoHs,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
Can I get custom sizes?
Yes, custom sizes are available upon request.
What is the tolerance for this filter?
The tolerance for this filter is ± 0.10 mm.
