1 / 6Optical Filters

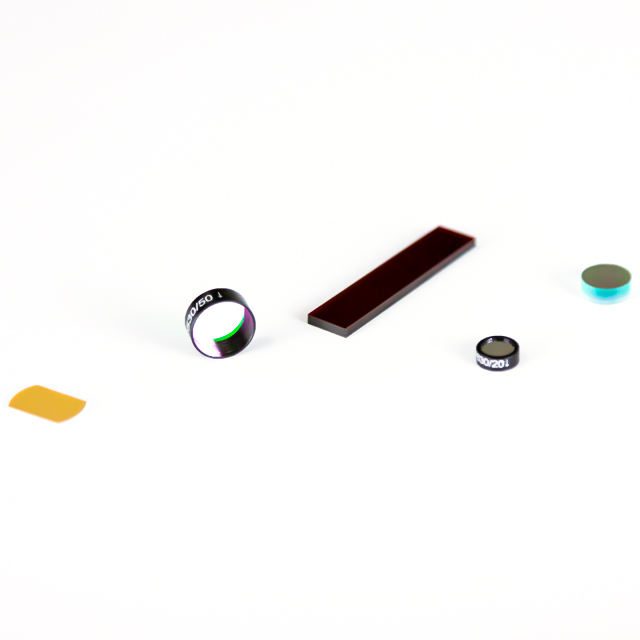

5x0.3 mm Fused Silica Optical Filter
Discover a high-performance longpass filter with 90% transmittance, ideal for optical applications in the 0.7-1.7 μm range.
Core attributes
- Material
- Fused Silica
- Size
- 5 mm
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 90%
- Filter Type
- longpass
- Cwl
- 800nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- Fused Silica
- Size
- 5 mm
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 90%
- Filter Type
- longpass
- Cwl
- 800nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product description

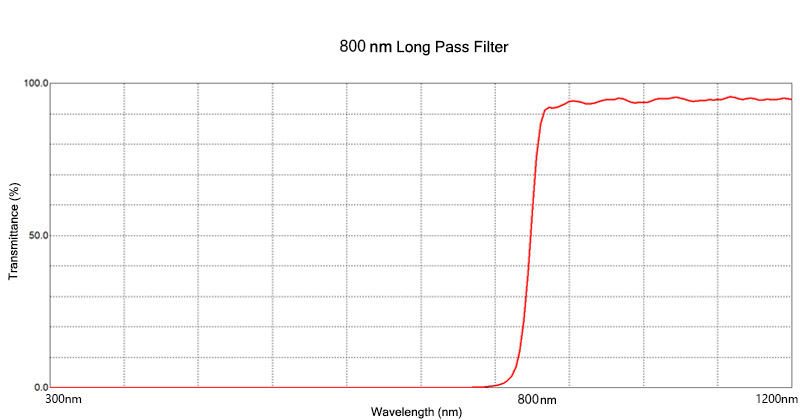

This longpass filter is designed for applications requiring high transmittance in the 0.7-1.7 μm range, with a center wavelength of 800 nm. The filter features a transmittance of 90%, making it ideal for fluorescence microscopy and other optical applications. Its fused silica construction ensures durability and reliability in various environments, while the iad-pvd coating enhances performance. Custom sizes are available to meet specific project needs.
Key Features
- Transmittance of 90% ensures optimal light passage for accurate measurements.
- Longpass filter type effectively blocks unwanted shorter wavelengths.
- Fused silica substrate provides excellent durability and thermal stability.
- Custom sizes available, allowing for tailored solutions to fit unique applications.
- Tolerance of ± 0.10 mm guarantees precision in fit and alignment.
Available Sizes
| Size x Thickness (mm) |
|---|
| 5 x 2.6 |
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Size | 5 mm |
| Thickness | 0.3 mm |
| Surface Quality | 40/20 |
| Transmittance | 90% |
| Filter Type | longpass |
| Cwl | 800nm |
| Coating | iad-pvd |
| Transmission bands | NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 90%; >90% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Coating Region | Single-sided or double-sided |
| Substrate | Quartz Glass |
| Tolerance | ± 0.10mm |
| Certification | ISO9001,RoHs,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
Can I get custom sizes for this filter?
Yes, custom sizes are available to meet specific application requirements.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified; please inquire for details.
