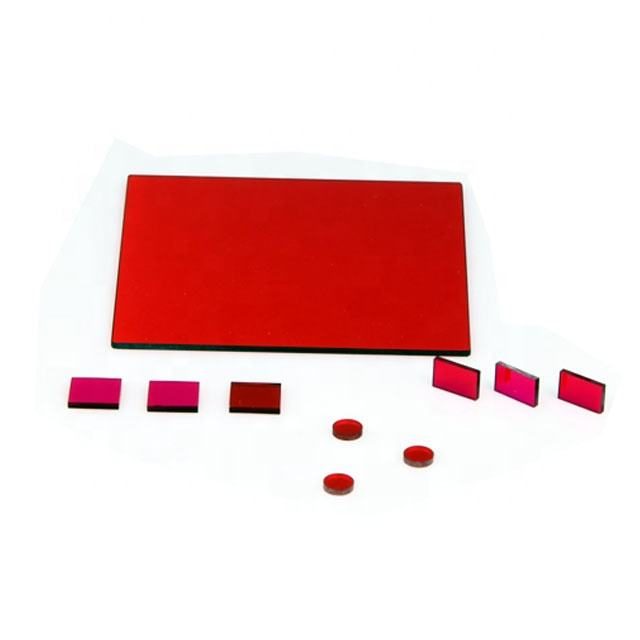

5x0.3 mm Fused Silica Optical Filter
High-performance bandpass filter with 95% transmittance at 850 nm, ideal for fluorescence microscopy and optical applications.
Core attributes
- Material
- Fused Silica
- Size
- 5 mm
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 95%
- Filter Type
- bandpass
- Cwl
- 850nm
- Fwhm
- 10nm
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Size
- 5 mm
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 95%
- Filter Type
- bandpass
- Cwl
- 850nm
- Fwhm
- 10nm
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product description
This bandpass filter is designed for applications requiring precise wavelength selection, specifically centered at 850 nm with a 10 nm FWHM. It provides high transmittance of 95% across its operational range of 400-700 nm, making it ideal for fluorescence microscopy and other optical applications. Constructed from fused silica, it ensures durability and reliability in various environments.
Key Features
- High transmittance of 95% ensures optimal light throughput for enhanced imaging.
- Bandpass filter with a center wavelength of 850 nm and FWHM of 10 nm for precise spectral selection.
- Durable fused silica material provides environmental stability and longevity.
- Available in custom sizes (5.0 mm diameter) and thicknesses (0.3 to 5.0 mm) for specific applications.
- Blocking density of OD2-OD4 ensures effective suppression of unwanted wavelengths.
Available Sizes
| Size x Thickness (mm) |
|---|
| 5 x 2.6 |
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Size | 5 mm |
| Thickness | 0.3 mm |
| Surface Quality | 40/20 |
| Transmittance | 95% |
| Filter Type | bandpass |
| Cwl | 850nm |
| Fwhm | 10nm |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Substrate | B270,D263T,Quartz Glass,Float glass |
| Type | Bandpass filter |
| Blocking Density | OD2-OD4 |
| Tolerance | +/-0.10mm |
| Wavelength Range | 240-1200nm |
| Transmittance | >80-95% |
FAQ
What custom sizes are available?
The filter is available in a variant size of 5.0 mm diameter.
What is the tolerance for this filter?
The tolerance for this filter is +/-0.10 mm.
