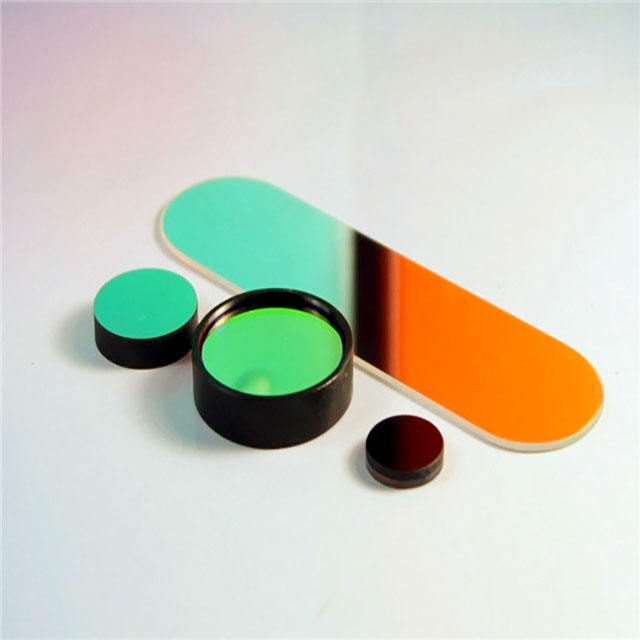

5x1.1 mm Fused Silica Optical Filter

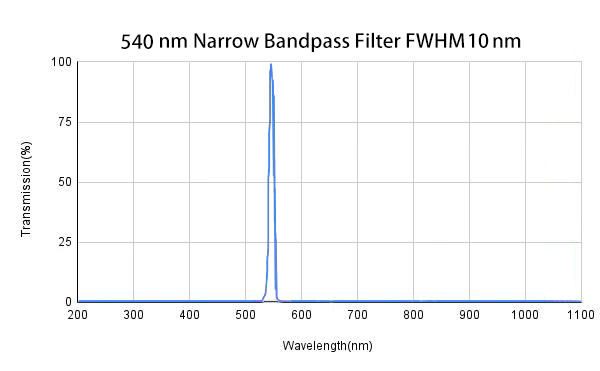

This 545 nm bandpass filter is designed for applications requiring high transmittance and effective blocking in fluorescence microscopy and machine vision. With a central wavelength of 545 nm and a full width at half maximum (FWHM) of 10 nm, it ensures optimal performance in the 400-700 nm spectral range. The filter’s 90% transmittance allows for efficient light passage while providing excellent blocking (OD5) in unwanted spectral regions. Ideal for researchers and engineers seeking reliable optical components.

Key Features

• Central wavelength of 545 nm ± 3 nm for precise spectral fit.
• FWHM of 10 nm ± 5 nm ensures narrowband performance.
• 90% transmittance for enhanced light efficiency.
• OD5 blocking from 300-527 nm & 587-1200 nm for effective interference suppression.
• Custom sizes available for tailored applications.

Available Sizes

Specification Summary

Full Specifications

FAQ

What are the available sizes for this filter?

The filter is available in a standard size of 5.0 mm with a thickness of 1.1 mm.

Can I get a custom size for this filter?

Yes, custom sizes are available, supporting OEM, ODM, and OBM options.
