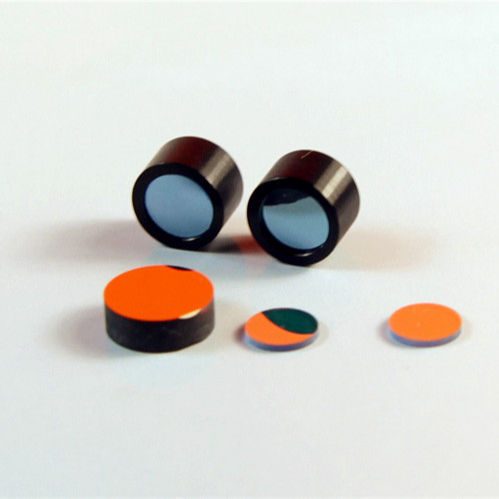

5 mm Fused Silica Optical Filter
Shortpass filter at 808 nm with 85% transmittance, ideal for fluorescence microscopy and laser applications.
Core attributes
- Material
- Fused Silica
- Size
- 5 mm
- Thickness
- Custom
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- shortpass
- Cwl
- 808nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- Fused Silica
- Size
- 5 mm
- Thickness
- Custom
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- shortpass
- Cwl
- 808nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product description

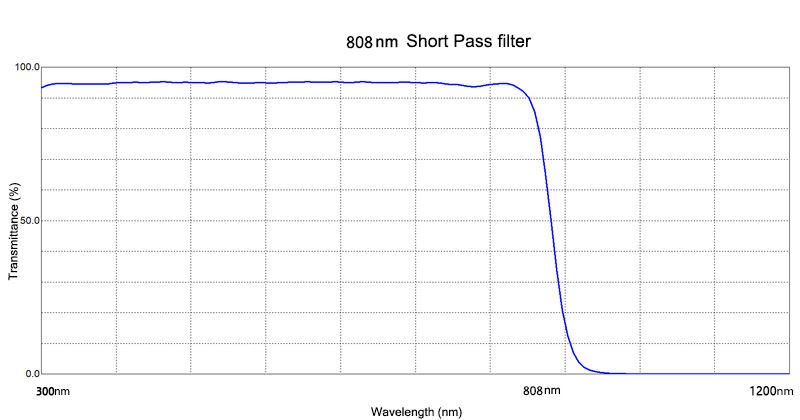

The shortpass filter with a center wavelength of 808 nm is designed to effectively block wavelengths from 815 nm to 1200 nm while allowing 85% transmittance for light in the 0.7-1.7 μm range. This filter is ideal for applications in fluorescence microscopy and laser systems where precise wavelength management is crucial. With a surface quality of 40/20 and a tolerance of +/-0.10 mm, it ensures reliable performance in demanding environments.
Key Features
- Center wavelength at 808 nm for specific application fit.
- 85% transmittance ensures high light throughput.
- Blocks wavelengths from 815 nm to 1200 nm for effective filtering.
- Surface quality of 40/20 for minimal distortion.
- Compatible with various substrates including fused silica.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Size | 5 mm |
| Thickness | Custom |
| Surface Quality | 40/20 |
| Transmittance | 85% |
| Filter Type | shortpass |
| Cwl | 808nm |
| Coating | iad-pvd |
| Transmission bands | NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Substrate | B270,D263T,Quartz Glass,Float glass |
| Tolerance | +/-0.10mm |
| Blocking | 815-1200nm |
| Transmission | T>85% |
| Aoi | ±5 |
| Customized | welcome |
| Certification | ISO9001,RoHs,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
Can I get custom sizes?
Custom sizes are not available for this filter.
What is the tolerance for this filter?
The tolerance for this filter is +/-0.10 mm.
