1 / 6Optical Filters

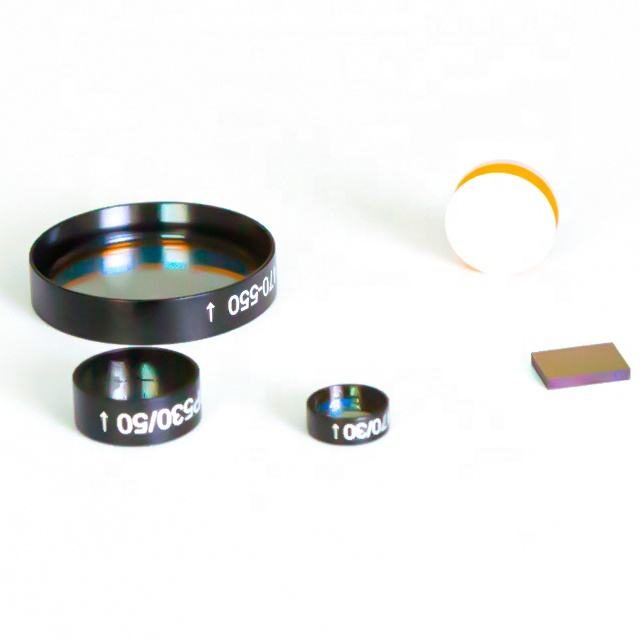

5 mm Fused Silica Optical Filter
High-performance bandpass filter with 90% transmittance, ideal for fluorescence applications at 590 nm.
Core attributes
- Material
- Fused Silica
- Size
- 5 mm
- Thickness
- Custom
- Surface Quality
- 40/20
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 590nm
- Coating
- iad-pvd, hard-coat
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Size
- 5 mm
- Thickness
- Custom
- Surface Quality
- 40/20
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 590nm
- Coating
- iad-pvd, hard-coat
- Transmission bands
- VIS (400-700 nm)
Product description
This bandpass filter is designed for applications requiring high transmittance in the 400-700 nm range, with a center wavelength of 590 nm and a full width at half maximum (FWHM) of 10 nm. The filter features a 90% transmittance rate, ensuring efficient light transmission while effectively blocking unwanted wavelengths. Ideal for fluorescence microscopy and other optical applications, this filter provides reliable performance with a durable hard-coat finish, making it suitable for various environmental conditions.
Key Features
- 90% transmittance ensures efficient light passage for optimal imaging.
- Center wavelength at 590 nm aligns with common fluorescence applications.
- FWHM of 10 nm provides precise spectral filtering for enhanced image clarity.
- Hard-coat coating enhances durability against environmental factors.
- Customizable options available to meet specific size and application needs.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Size | 5 mm |
| Thickness | Custom |
| Surface Quality | 40/20 |
| Transmittance | 90% |
| Filter Type | bandpass |
| Cwl | 590nm |
| Coating | iad-pvd, hard-coat |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 90% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Manufacture | Double sided polishing |
| Materials | B270,JGS1,D263T,N-BK7 |
| Tolerance | ±3 mm |
| Transmission | >90% |
| Shipment | Express delivery,Air,Sea |
| Fwhm | 10nm |
FAQ
What are the available custom sizes?
Custom sizes can be accommodated within a tolerance of ±3 mm.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified, allowing for flexible purchasing.
Product inquiry
Request a quote
Share your application and target specifications. Optional optical details help clarify the request.
