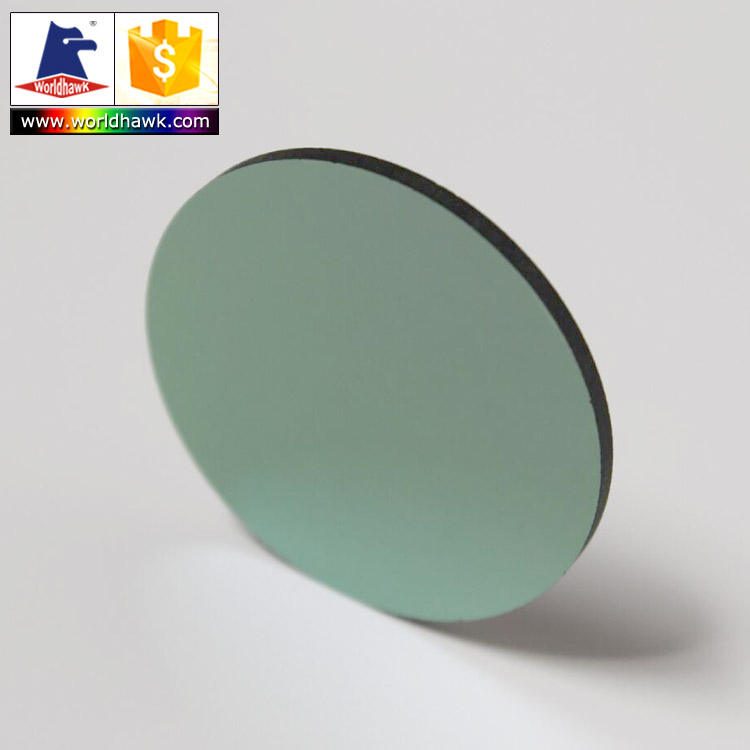

Custom Size Fused Silica Optical Filter, AR Coated

Product description

This bandpass filter is designed for machine-vision applications, effectively transmitting light around a center wavelength of 1200 nm while blocking unwanted wavelengths. With a high transmittance of 90%, it ensures optimal performance in various optical setups. The filter’s robust fused silica material and anti-reflective coating enhance durability and reliability, making it suitable for demanding environments.

Key Features

Transmittance of 90% ensures high light throughput for enhanced imaging.
Center wavelength of 1200 nm is ideal for specific machine-vision applications.
Blocking depth of OD2-OD5 from 200 to 1200 nm minimizes interference from unwanted wavelengths.
Available thickness options of 0.55 mm to 5.0 mm cater to various design requirements.
OEM support allows for tailored solutions to meet specific project needs.

Applications

Machine Vision

Specification Summary

Item	Value
Material	Fused Silica
Size	Custom
Thickness	0.6 mm
Surface Quality	40/20
Transmittance	90%
Filter Type	bandpass
Cwl	1200nm
Coating	anti-reflective (AR)

Full Specifications

Parameter	Value
Transmittance	90%; 12%~98%
Customized Support	OEM
Warranty	3 Years
Fwhm	8nm-40nm
Cwl	1200nm-6000nm
Blocking	OD2-OD5 @200-1200nm
Substrate	Optical Glass, UVFS, Sapphire

FAQ

What is the minimum order quantity (MOQ) for this filter?

The minimum order quantity (MOQ) is not specified.

Can I get custom sizes for this bandpass filter?

Custom sizes are available, but specific dimensions are not listed.
