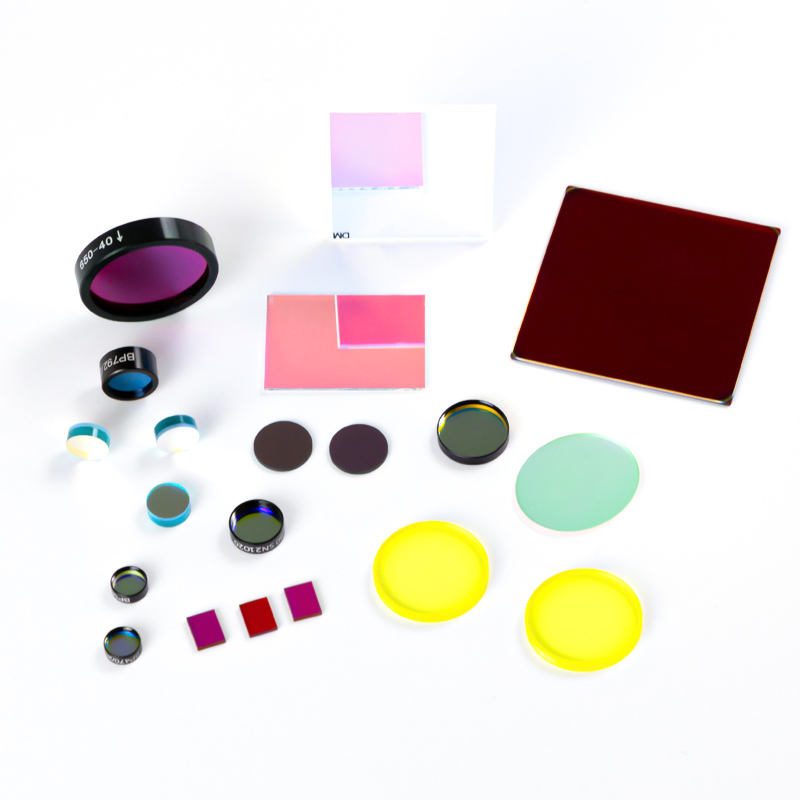

Custom Size Fused Silica Optical Filter

Product description

This bandpass filter, crafted from fused silica, is designed to provide high transmittance of 85% while effectively blocking unwanted wavelengths with a blocking density of OD2-OD6. Ideal for applications in fluorescence microscopy and other optical systems, its durable hard-coat and IAD-PVD coatings enhance environmental resilience. With customizable thickness options ranging from 0.3 mm to 5.0 mm, this filter meets the specific needs of diverse applications.

Key Features

Transmittance of 85% ensures optimal light passage for enhanced imaging.
Blocking density of OD2-OD6 provides effective wavelength rejection.
Available in thicknesses from 0.3 mm to 5.0 mm for application-specific needs.
Durable hard-coat and IAD-PVD coatings enhance filter longevity.
Supports OEM, ODM, and OBM for tailored solutions.

Specification Summary

Item	Value
Material	Fused Silica
Size	Custom
Thickness	0.3 mm
Surface Quality	40/20
Transmittance	85%
Filter Type	bandpass
Coating	iad-pvd, hard-coat

Full Specifications

Parameter	Value
Transmittance	85%; >85%
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Coating Region	Single-sided or double-sided
Blocking Density	OD2-OD6
Substrate	Fused Silica
Tolerance	± 0.10mm
Certification	ISO9001,RoHs,EPR
Shipment	Express delivery,Air,Sea

FAQ

Can I get custom sizes for this filter?

Yes, the filter is available in customizable thicknesses ranging from 0.3 mm to 5.0 mm.

What is the tolerance for this filter?

The filter has a tolerance of ± 0.10 mm.
