1 / 6Optical Filters
Custom Size Fused Silica Optical Filter

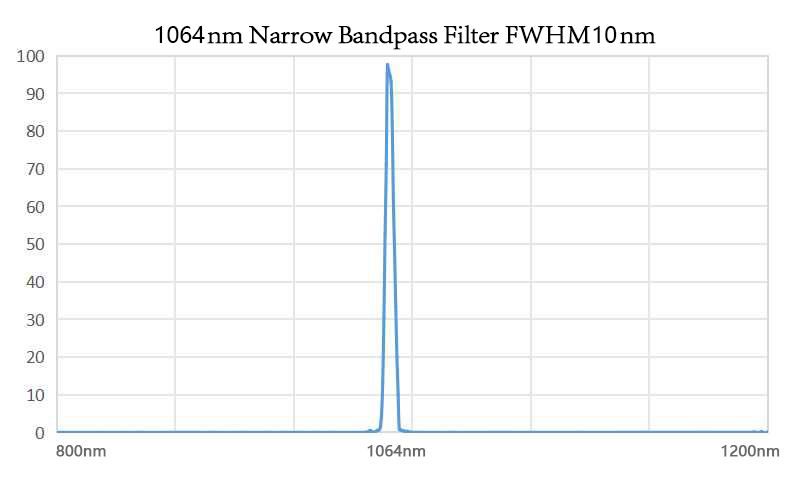

Bandpass filter with 1064 nm center wavelength and >85% transmittance, customizable for various applications.
Core attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 1064nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 1064nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product description
This bandpass filter is designed for applications within the 0.7-1.7 μm range, with a center wavelength of 1064 nm and a high transmittance of over 85%. Ideal for fluorescence microscopy and laser applications, it provides reliable performance with minimal light loss. The filter is made from durable fused silica and features advanced iad-pvd coatings for enhanced durability. Custom sizes and thicknesses are available, ensuring compatibility with various optical systems.
Key Features
- High transmittance of >85% for optimal light throughput.
- Center wavelength of 1064 nm, suitable for laser applications.
- Made from fused silica for superior environmental durability.
- Customizable thickness options from 0.3 mm to 5.0 mm.
- Double-sided polishing ensures high surface quality (40/20).
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Size | Custom |
| Thickness | 0.3 mm |
| Surface Quality | 40/20 |
| Transmittance | 85% |
| Filter Type | bandpass |
| Cwl | 1064nm |
| Coating | iad-pvd |
| Transmission bands | NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Coating Region | Single-sided or double-sided |
| Manufacture | Double sided polishing |
| Substrate | Quartz Glass |
| Tolerance | ± 0.10mm |
| Transmittance | >85% |
| Certification | ISO9001,RoHs,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
Can I get custom sizes?
Yes, custom sizes and thicknesses are available to fit specific applications.
What are the tolerances for this filter?
The tolerance for this filter is ± 0.10 mm.
