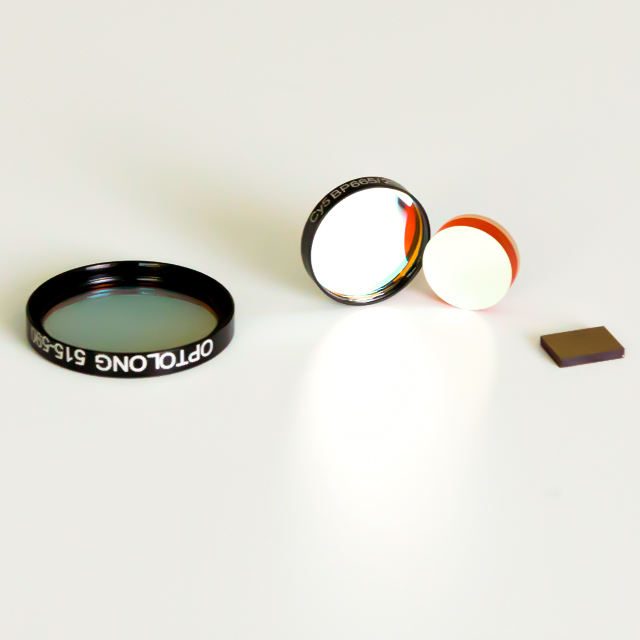

Custom Size Fused Silica Optical Filter

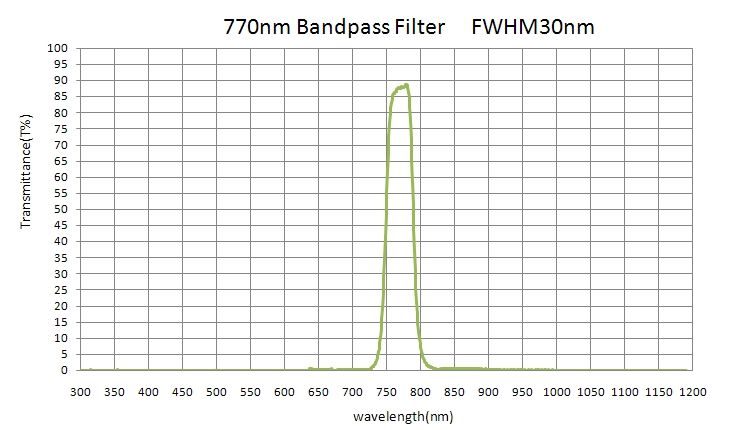

High-performance bandpass filter centered at 770 nm with 85% transmittance for 0.7-1.7 μm applications.
Core attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 770nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 770nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product description
This bandpass filter is designed for applications requiring high transmittance in the 0.7-1.7 μm range, specifically centered at 770 nm. With a transmittance of 85%, it effectively allows the desired wavelengths to pass while blocking unwanted light, making it ideal for fluorescence microscopy and other optical applications. The filter is made from durable fused silica and features advanced iad-pvd coatings for enhanced performance.
Key Features
- Transmittance of 85% ensures optimal light passage for precise measurements.
- Bandpass filter type tailored for applications in the 0.7-1.7 μm range.
- Available thicknesses from 0.3 mm to 5.0 mm for versatile application needs.
- Manufactured with double-sided polishing for superior surface quality (40/20).
- Customizable options available, including OEM and ODM support.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Size | Custom |
| Thickness | 0.3 mm |
| Surface Quality | 40/20 |
| Transmittance | 85% |
| Filter Type | bandpass |
| Cwl | 770nm |
| Coating | iad-pvd |
| Transmission bands | NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85%; >85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Coating Region | Single-sided or double-sided |
| Substrate | B270,JGS1,Quartz Glass,Absorptive Glass |
| Tolerance | ± 0.10mm |
| Manufacture | Double sided polishing |
| Certification | ISO9001,RoHs,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
What are the available thicknesses for this filter?
The filter is available in thicknesses ranging from 0.3 mm to 5.0 mm.
What is the surface quality of the filter?
The surface quality of the filter is rated at 40/20.
