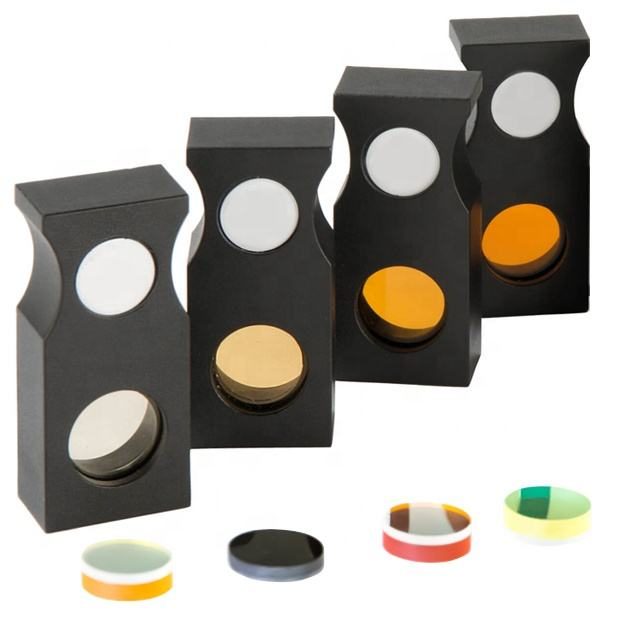

Custom Size Fused Silica Optical Filter
High-performance bandpass filter with 85% transmittance, ideal for 0.7-1.7 μm applications.
Core attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- 0.4 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 880nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- 0.4 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 880nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product description
This bandpass filter is designed for applications requiring high transmittance in the 0.7-1.7 μm range, with a center wavelength of 880 nm. It features a robust fused silica substrate and an IAD-PVD coating that ensures consistent performance. With a transmittance of 85% and a blocking density of OD2-OD6, it effectively isolates desired wavelengths while minimizing unwanted light. Ideal for fluorescence microscopy, laser applications, and other optical systems, this filter provides reliable spectral performance.
Key Features
- Transmittance of 85% ensures efficient light transmission for optimal imaging.
- Bandpass filter type tailored for specific wavelength isolation.
- Robust fused silica material provides durability and environmental resistance.
- Customizable options available, including OEM and ODM support.
- Blocking density of OD2-OD6 offers excellent light rejection capabilities.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Size | Custom |
| Thickness | 0.4 mm |
| Surface Quality | 40/20 |
| Transmittance | 85% |
| Filter Type | bandpass |
| Cwl | 880nm |
| Coating | iad-pvd |
| Transmission bands | NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85%; >85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Substrate | B270,D263T,Quartz Glass,Float glass,Color glass |
| Oem | customized upon request |
| Blocking Density | OD2-OD6 |
| Certification | RoHS,ISO9001,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
Can I get custom sizes?
Yes, custom sizes are available upon request.
What is the minimum order quantity (MOQ)?
The MOQ is not specified; please inquire for details.
