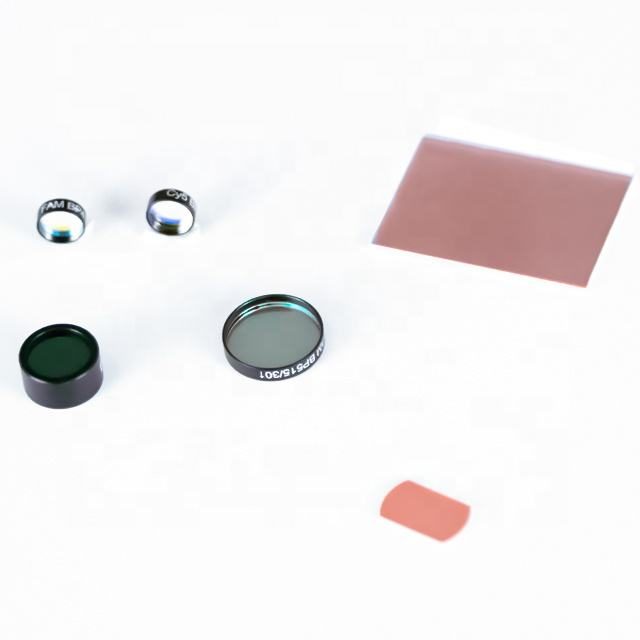

Custom Size Fused Silica Optical Filter
Discover the 905nm bandpass filter with 85% transmittance, ideal for precise wavelength applications.
Core attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 905nm
- Fwhm
- 10nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 905nm
- Fwhm
- 10nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product description

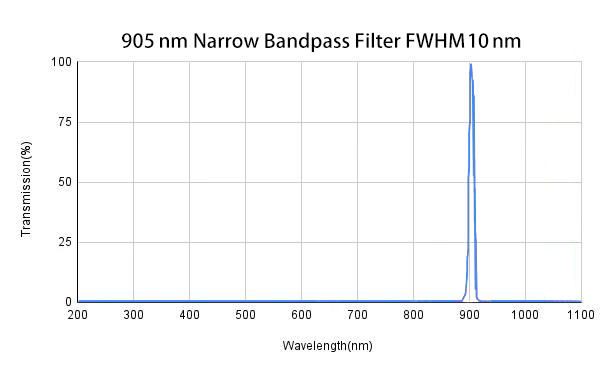

The 905nm bandpass filter is designed for applications requiring precise wavelength selection in the 0.7-1.7 μm range. With a center wavelength (CWL) of 905nm and a full width at half maximum (FWHM) of 10nm, this filter ensures optimal transmittance of 85%. Its robust fused silica construction and iad-pvd coating enhance durability, making it suitable for demanding environments. Ideal for fluorescence microscopy and laser applications, this filter provides reliable performance and consistent results.
Key Features
- Transmittance of 85% for efficient light passage.
- Bandpass filter type tailored for specific wavelength applications.
- Durable fused silica material with iad-pvd coating for enhanced longevity.
- Available thicknesses from 0.3mm to 5.0mm to fit various setups.
- Customizable options including OEM, ODM, and OBM support.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Size | Custom |
| Thickness | 0.3 mm |
| Surface Quality | 40/20 |
| Transmittance | 85% |
| Filter Type | bandpass |
| Cwl | 905nm |
| Fwhm | 10nm |
| Coating | iad-pvd |
| Transmission bands | NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Coating Region | Single-sided or double-sided |
| Blocking Density | OD2-OD4 |
| Manufacture | Double sided polishing |
| Substrate | B270,JGS1,Quartz Glass,Absorptive Glass |
| Tolerance | ± 0.10mm |
| Certification | ISO9001,RoHs,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
Can I get custom sizes?
Yes, the filter can be customized in size and thickness, with a tolerance of ± 0.10mm.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified, allowing flexibility for procurement.
