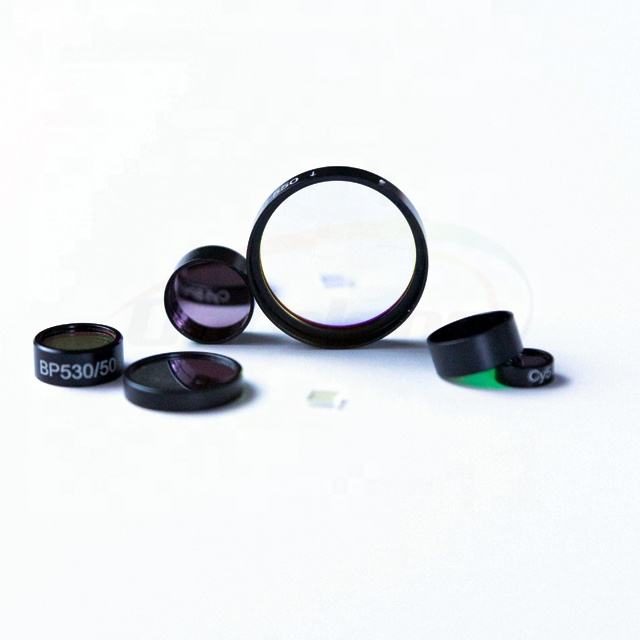

Custom Size Fused Silica Optical Filter
Explore our 940 nm bandpass filter with 85% transmittance for precision in fluorescence microscopy and optical applications.
Core attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 940nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 940nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product description

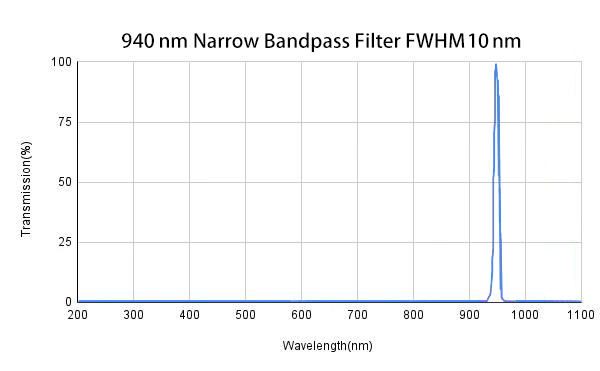

This bandpass filter, designed for the 0.7-1.7 μm wavelength range with a center wavelength of 940 nm, effectively transmits light while blocking unwanted wavelengths. With a transmittance of 85%, it is ideal for applications in fluorescence microscopy and other optical systems that require precise spectral control. The filter’s fused silica construction ensures durability and reliability in various environmental conditions, making it suitable for demanding applications.
Key Features
- Transmittance of 85% ensures effective light transmission for optimal performance.
- Bandpass filter type provides precise wavelength selection, enhancing application accuracy.
- Available thicknesses of 0.3 mm to 5.0 mm for versatile integration into systems.
- Customized support for OEM, ODM, and OBM to meet specific project needs.
- Tolerance of ± 0.10 mm guarantees consistent quality across batches.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Size | Custom |
| Thickness | 0.3 mm |
| Surface Quality | 40/20 |
| Transmittance | 85% |
| Filter Type | bandpass |
| Cwl | 940nm |
| Coating | iad-pvd |
| Transmission bands | NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85%; >85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Coating Region | Single-sided or double-sided |
| Blocking Density | OD2-OD6 |
| Materials | B270,JGS1,Quartz Glass,Absorptive Glass |
| Tolerance | ± 0.10mm |
| Certification | ISO9001,RoHs,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
What are the available thickness options?
The filter is available in thicknesses ranging from 0.3 mm to 5.0 mm.
Can I get custom sizes?
Yes, the filter can be customized to meet specific size requirements.
