1 / 6Optical Filters

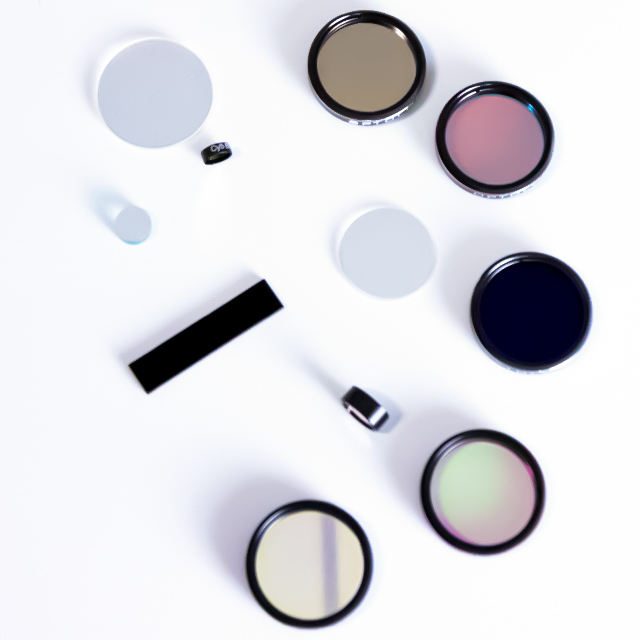

Custom Size Fused Silica Optical Filter
High-performance longpass filter (800 nm) with 85% transmittance for precise optical applications.
Core attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- longpass
- Cwl
- 800nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- longpass
- Cwl
- 800nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product description

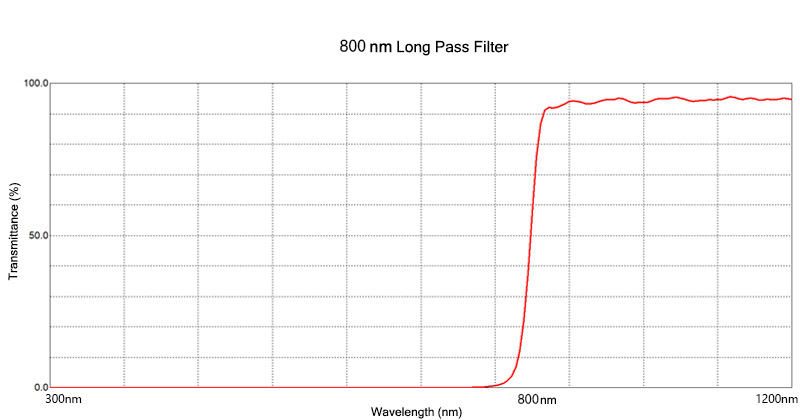

The longpass filter with a center wavelength of 800 nm is designed for applications requiring high transmittance in the 0.7-1.7 μm range. With a transmittance of 85%, this filter effectively blocks unwanted wavelengths while allowing desired light to pass through. It is ideal for fluorescence microscopy, life sciences, and other optical applications where precision filtering is crucial. The filter is made of fused silica and features durable iad-pvd coatings for enhanced performance.
Key Features
- Transmittance of 85% ensures optimal light passage for accurate measurements.
- Longpass filter type effectively blocks shorter wavelengths, enhancing signal clarity.
- Available thicknesses from 0.3 mm to 5.0 mm for versatile application needs.
- Customizable options including OEM and ODM support for tailored solutions.
- Robust coatings provide environmental durability for extended use.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Size | Custom |
| Thickness | 0.3 mm |
| Surface Quality | 40/20 |
| Transmittance | 85% |
| Filter Type | longpass |
| Cwl | 800nm |
| Coating | iad-pvd |
| Transmission bands | NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85%; >85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Coating Region | Single-sided or double-sided |
| Blocking Density | OD2-OD6 |
| Substrate | B270,JGS1,Quartz Glass |
| Tolerance | ± 0.10mm |
| Certification | ISO9001,RoHs,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
What are the available custom sizes?
Custom sizes can be accommodated, but specific dimensions are not listed.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified in the provided data.
