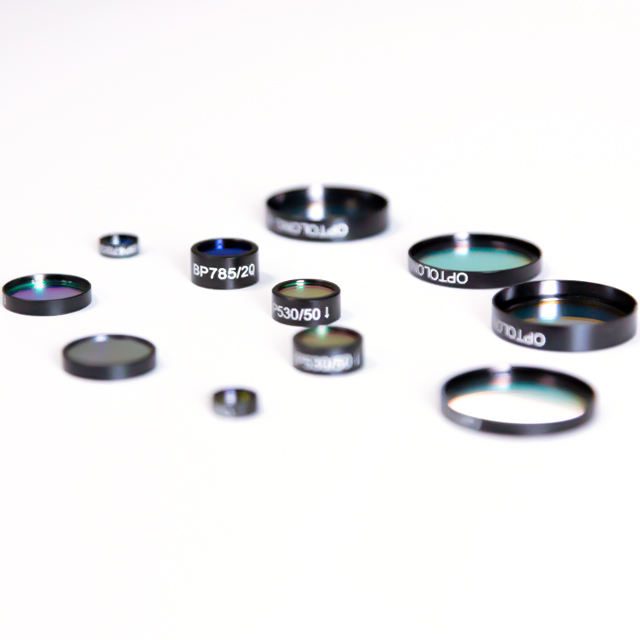

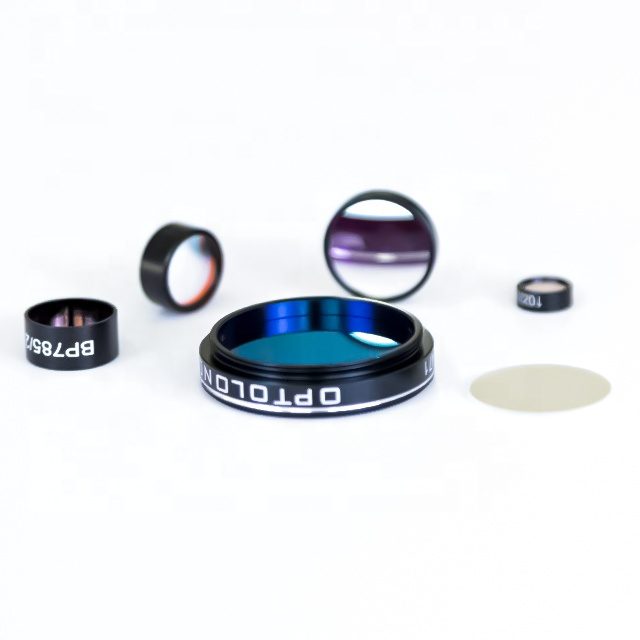

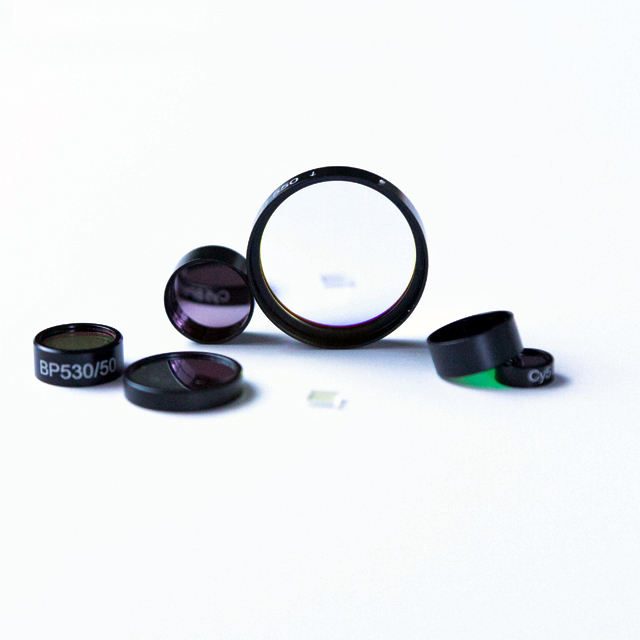

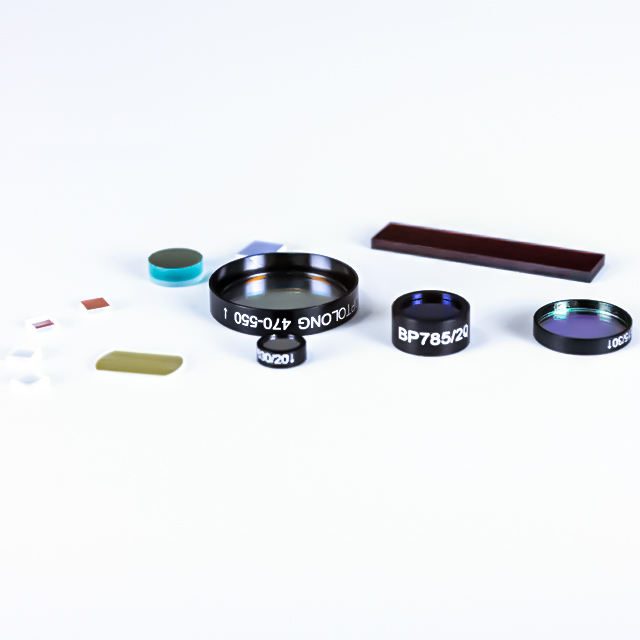

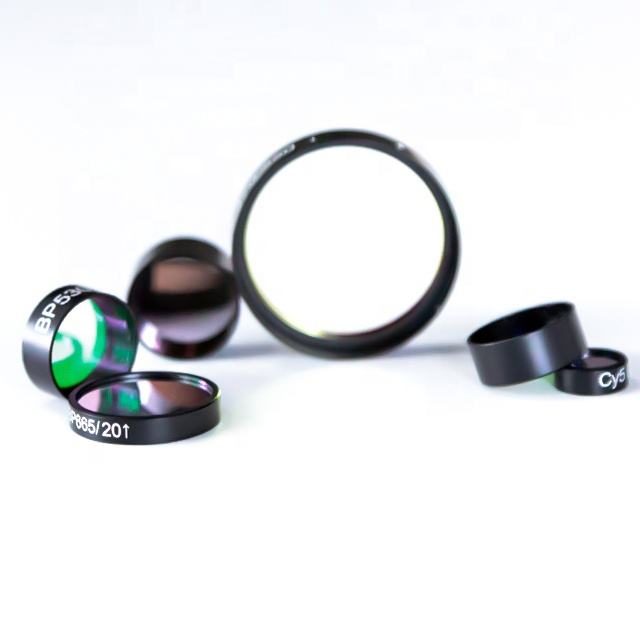

Custom Size Fused Silica Optical Filter
Shortpass filter with 85% transmittance, ideal for applications requiring wavelength isolation. Custom sizes available.
Core attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- shortpass
- Cwl
- 800nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- shortpass
- Cwl
- 800nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product description

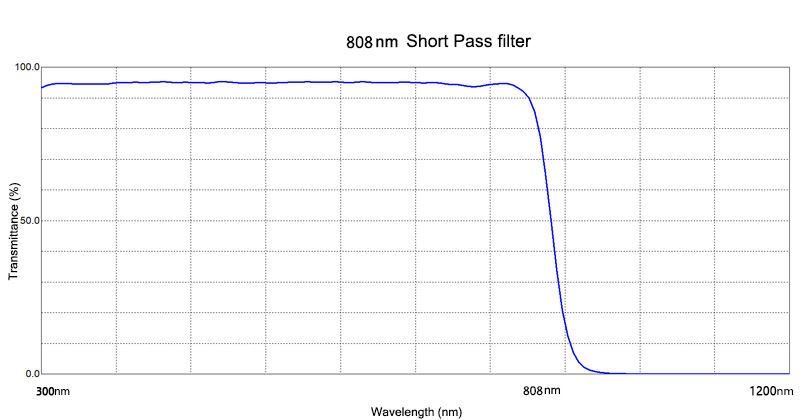

This shortpass filter effectively blocks wavelengths above 800nm while allowing transmission of light below this threshold, making it ideal for applications in fluorescence microscopy and other optical systems where specific wavelength isolation is crucial. With a transmittance of 85% and a robust fused silica substrate, it ensures high performance and durability. The filter is available in thicknesses ranging from 0.3mm to 5.0mm, accommodating various system requirements.
Key Features
- Shortpass filter type for effective wavelength isolation, enhancing imaging quality.
- 85% transmittance ensures high light throughput for optimal performance.
- Available in thicknesses from 0.3mm to 5.0mm, allowing for custom integration.
- Manufactured with double-sided polishing for superior surface quality (40/20).
- Coated with iad-pvd for enhanced durability and environmental resistance.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Size | Custom |
| Thickness | 0.3 mm |
| Surface Quality | 40/20 |
| Transmittance | 85% |
| Filter Type | shortpass |
| Cwl | 800nm |
| Coating | iad-pvd |
| Transmission bands | NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85%; >85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Coating Region | Single-sided or double-sided |
| Manufacture | Double sided polishing |
| Substrate | B270,JGS1,Quartz Glass,Absorptive Glass |
| Certification | ISO9001,RoHs,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
Can I get custom sizes?
Custom sizes are supported, with thickness options ranging from 0.3mm to 5.0mm.
What is the minimum order quantity?
Minimum order quantity details are not specified; please inquire for specifics.
