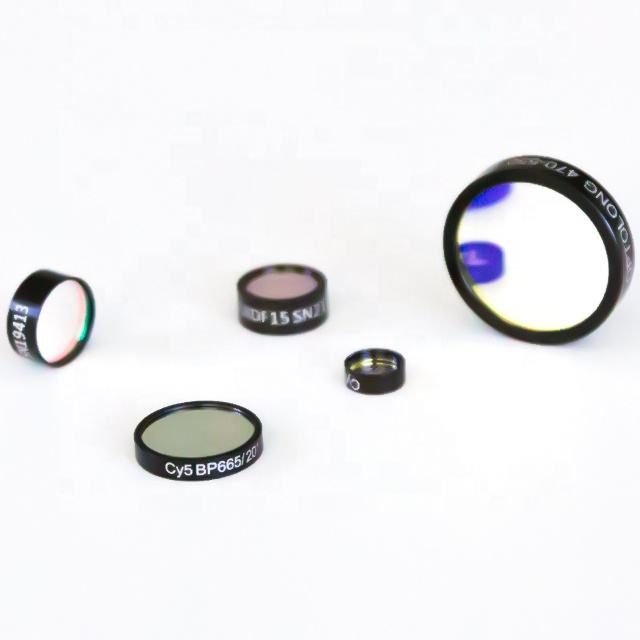

Custom Size Fused Silica Optical Filter
High-performance bandpass filter (450 nm, 85% transmittance) for fluorescence and machine vision applications.
Core attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 450nm
- Coating
- iad-pvd
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 450nm
- Coating
- iad-pvd
- Transmission bands
- VIS (400-700 nm)
Product description

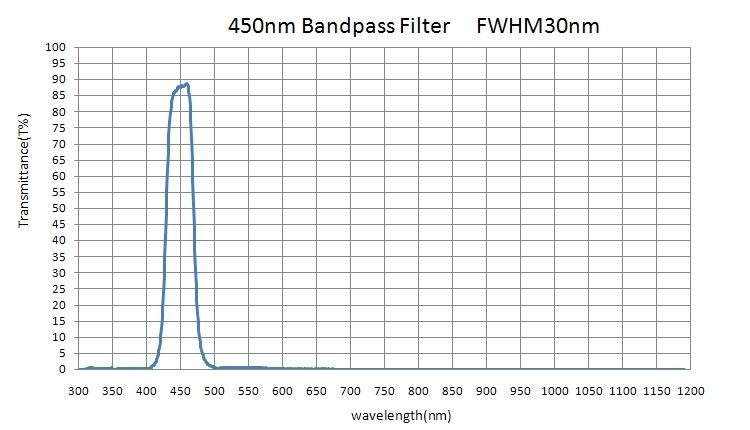

This bandpass filter is designed to enhance fluorescence microscopy and machine vision applications by selectively transmitting light within the 400-700 nm range, centered at 450 nm. With a high transmittance of 85% and robust blocking density (OD2-OD6), it ensures optimal signal clarity while minimizing background noise. The filter is made from durable fused silica, providing excellent environmental stability and is available in various thicknesses from 0.3 mm to 5.0 mm, making it suitable for diverse experimental setups.
Key Features
- 85% transmittance ensures high light efficiency for accurate imaging.
- Blocking density of OD2-OD6 minimizes unwanted light interference.
- Available thickness options (0.3 mm to 5.0 mm) for versatile application needs.
- Customizable support for OEM, ODM, and OBM to meet specific project requirements.
- Manufactured with double-sided polishing for superior surface quality (40/20).
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Size | Custom |
| Thickness | 0.3 mm |
| Surface Quality | 40/20 |
| Transmittance | 85% |
| Filter Type | bandpass |
| Cwl | 450nm |
| Coating | iad-pvd |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Coating Region | Single-sided or double-sided |
| Blocking Density | OD2-OD6 |
| Manufacture | Double sided polishing |
| Substrate | B270,JGS1,Quartz Glass,Absorptive Glass |
| Tolerance | ± 0.10mm |
| Certification | ISO9001,RoHs,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
Can custom sizes be ordered?
Yes, this filter supports custom sizes and thicknesses.
What is the tolerance for this filter?
The tolerance for this filter is ± 0.10 mm.
