Custom Size Fused Silica Optical Filter

Product description

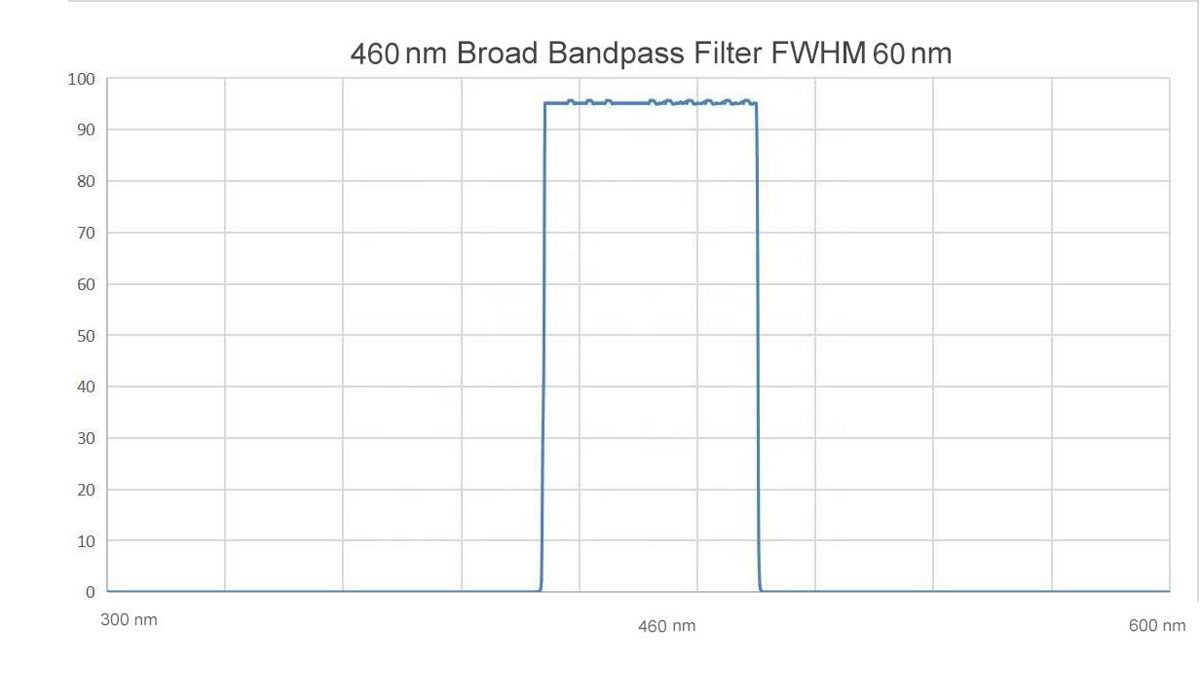

This bandpass filter is designed for applications requiring precise wavelength selection in the 400-700 nm range. With a center wavelength of 460 nm and a full width at half maximum (FWHM) of 60 nm, it effectively transmits light while blocking unwanted wavelengths. Ideal for fluorescence microscopy and other optical applications, this filter ensures high performance with 85% transmittance, making it suitable for various light sources and detectors.

Key Features

Transmittance of 85% ensures high light throughput for optimal imaging.
Center wavelength of 460 nm with a FWHM of 60 nm fits well with common fluorescence applications.
Available in thicknesses from 0.3 mm to 5.0 mm for versatile integration.
Surface quality of 40/20 enhances optical clarity and performance.
Customizable options available for OEM, ODM, and OBM projects.

Specification Summary

Item	Value
Material	Fused Silica
Size	Custom
Thickness	0.3 mm
Surface Quality	40/20
Transmittance	85%
Filter Type	bandpass
Cwl	460nm
Fwhm	60nm
Coating	iad-pvd
Transmission bands	VIS (400-700 nm)

Full Specifications

Parameter	Value
Transmittance	85%; >85%
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Coating Region	Single-sided or double-sided
Blocking Density	OD2-OD6
Substrate	B270,JGS1,Quartz Glass
Tolerance	± 0.10mm
Certification	ISO9001,RoHs,EPR
Shipment	Express delivery,Air,Sea

FAQ

Can I get custom sizes for this filter?

Yes, this filter can be customized in size and thickness to meet specific application requirements.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified, allowing for flexible procurement options.
