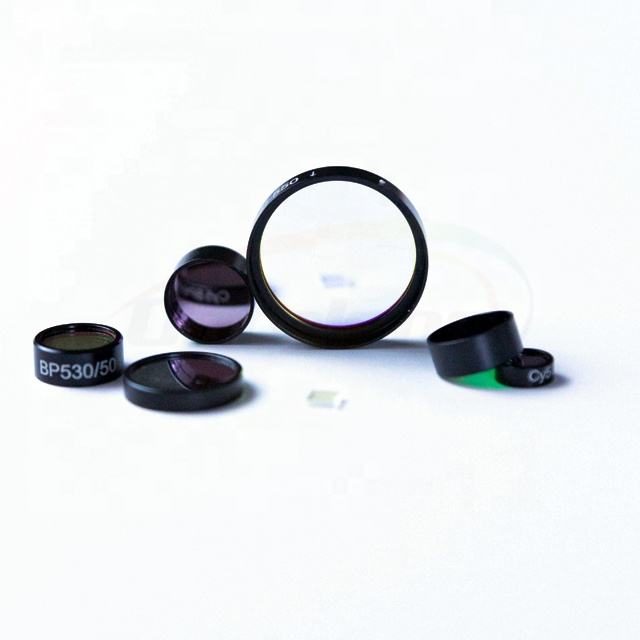

Custom Size Fused Silica Optical Filter
Explore our 465nm bandpass filter with 85% transmittance, ideal for fluorescence microscopy and machine vision applications.
Core attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 465nm
- Fwhm
- 30nm
- Coating
- iad-pvd
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 465nm
- Fwhm
- 30nm
- Coating
- iad-pvd
- Transmission bands
- VIS (400-700 nm)
Product description
The 465nm bandpass filter is designed for applications requiring precise spectral transmission within the 400-700 nm range. With a center wavelength of 465 nm and a FWHM of 30 nm, it effectively isolates specific wavelengths while blocking unwanted light. This filter is ideal for fluorescence microscopy, machine vision, and other optical applications, ensuring optimal performance and reliability.
Key Features
- 85% transmittance ensures high light throughput for accurate measurements.
- OD3 blocking density minimizes interference from out-of-band wavelengths.
- Available thicknesses from 0.3 mm to 5.0 mm for versatile application needs.
- Custom OEM and ODM options support tailored solutions for unique requirements.
- Surface quality of 40/20 enhances optical clarity and performance.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Size | Custom |
| Thickness | 0.3 mm |
| Surface Quality | 40/20 |
| Transmittance | 85% |
| Filter Type | bandpass |
| Cwl | 465nm |
| Fwhm | 30nm |
| Coating | iad-pvd |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Coating Region | Single-sided or double-sided |
| Blocking Density | OD3 |
| Substrate | B270,JGS1,Quartz Glass,Absorptive Glass |
| Tolerance | ± 0.10mm |
| Aoi | 0±45° |
| Certification | ISO9001,RoHs,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
What are the available thickness options for this filter?
The filter is available in thicknesses ranging from 0.3 mm to 5.0 mm.
Is custom sizing available for this filter?
Yes, custom OEM and ODM options are available to meet specific requirements.
What is the tolerance for this filter?
The tolerance for this filter is ± 0.10 mm.
