1 / 6Optical Filters

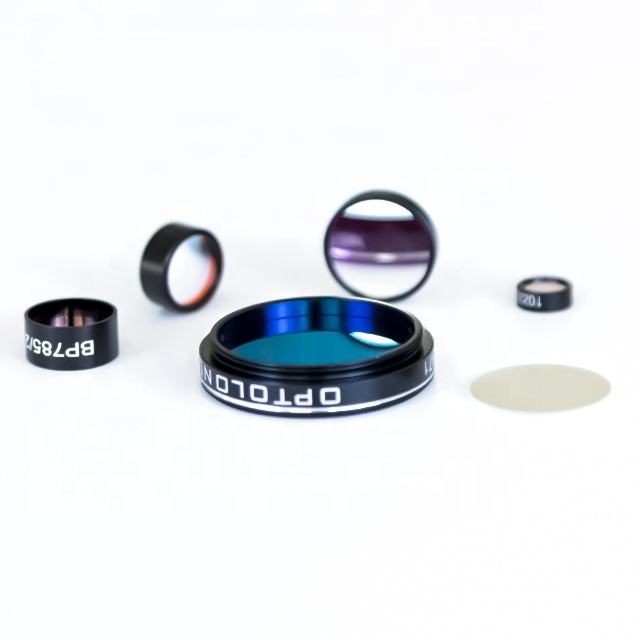

Custom Size Fused Silica Optical Filter
High-performance bandpass filter (480 nm, 10 nm FWHM) for medical applications with 85% transmittance.
Core attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 480nm
- Fwhm
- 10nm
- Coating
- iad-pvd
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 480nm
- Fwhm
- 10nm
- Coating
- iad-pvd
- Transmission bands
- VIS (400-700 nm)
Product description

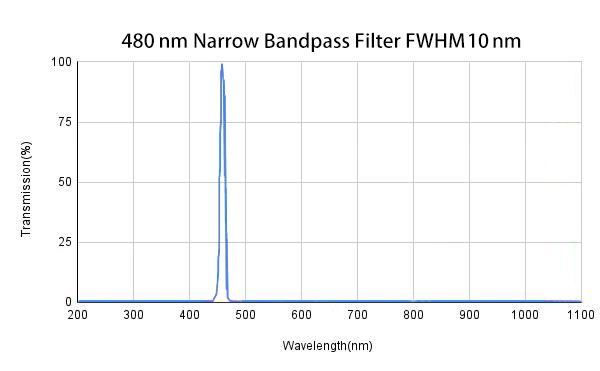

This bandpass filter is designed for applications in the medical field, specifically targeting wavelengths from 400 to 700 nm. With a center wavelength of 480 nm and a full width at half maximum (FWHM) of 10 nm, it effectively transmits light while blocking unwanted wavelengths. The filter boasts an impressive transmittance of 85%, ensuring optimal performance in fluorescence microscopy and other light-sensitive applications. Its durable fused silica material and iad-pvd coating enhance environmental resilience, making it suitable for various operational conditions.
Key Features
- 85% transmittance for optimal light throughput
- Customizable support for OEM, ODM, and OBM needs
- Durable fused silica substrate for enhanced reliability
- Available thicknesses from 0.3 mm to 5.0 mm
- Compatible with multiple coating options for varied applications
Applications
Medical
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Size | Custom |
| Thickness | 0.3 mm |
| Surface Quality | 40/20 |
| Transmittance | 85% |
| Filter Type | bandpass |
| Cwl | 480nm |
| Fwhm | 10nm |
| Coating | iad-pvd |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85%; >85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Coating Region | Single-sided or double-sided |
| Substrate | B270,JGS1,Quartz Glass,Absorptive Glass |
| Aoi | 0±5°, 0±45° |
| Certification | ISO9001,RoHs,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
Can I get custom sizes for this filter?
Custom sizes are not specified, but support for OEM and ODM is available.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified.
