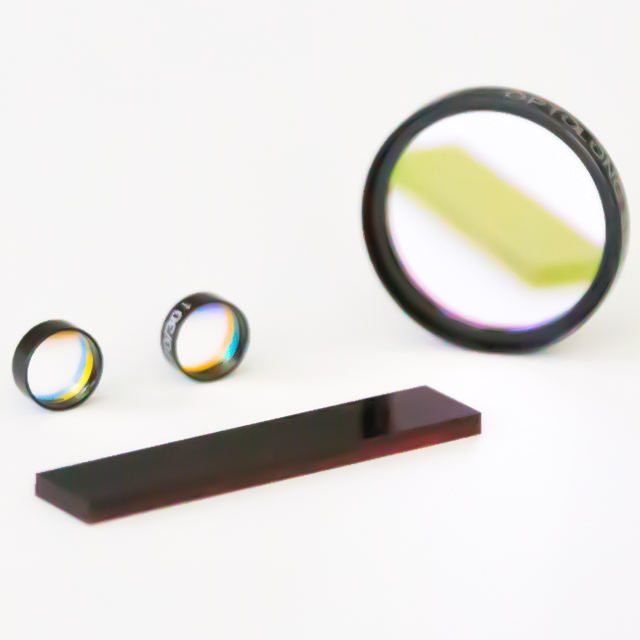

Custom Size Fused Silica Optical Filter

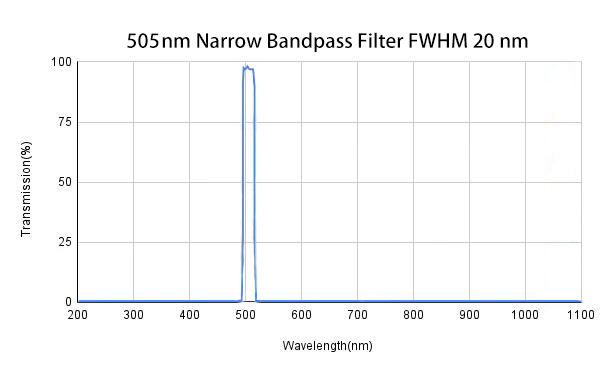

Discover the 505 nm bandpass filter with 90% transmittance, ideal for fluorescence microscopy and optical applications.
Core attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 505nm
- Coating
- iad-pvd
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 505nm
- Coating
- iad-pvd
- Transmission bands
- VIS (400-700 nm)
Product description
The 505 nm bandpass filter is designed for applications requiring high transmittance and effective blocking of unwanted wavelengths. With a transmittance of 90% and a blocking density ranging from OD2 to OD6, this filter is ideal for fluorescence microscopy and other optical applications within the 400-700 nm range. Manufactured from durable fused silica and coated with IAD-PVD technology, it ensures reliability and performance in various environmental conditions.
Key Features
- Transmittance of 90% ensures optimal light throughput for accurate measurements.
- Blocking density of OD2-OD6 effectively minimizes interference from out-of-band light.
- Available thicknesses from 0.3 mm to 5.0 mm cater to diverse application needs.
- Customizable support for OEM, ODM, and OBM allows tailored solutions for specific requirements.
- Surface quality rating of 40/20 guarantees minimal distortion and high clarity.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Size | Custom |
| Thickness | 0.3 mm |
| Surface Quality | 40/20 |
| Transmittance | 90% |
| Filter Type | bandpass |
| Cwl | 505nm |
| Coating | iad-pvd |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 90%; >85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Coating Region | Single-sided or double-sided |
| Blocking Density | OD2-OD6 |
| Substrate | B270,JGS1,Quartz Glass,Absorptive Glass |
| Tolerance | ± 0.10mm |
| Certification | ISO9001,RoHs,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
Can I get custom sizes for this filter?
Yes, the filter can be customized to meet specific size requirements.
What is the tolerance for this filter?
The tolerance for this filter is ± 0.10 mm.
