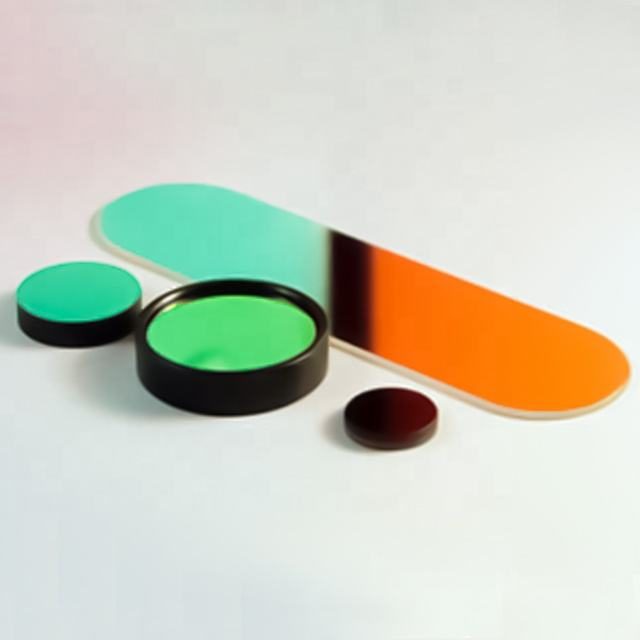

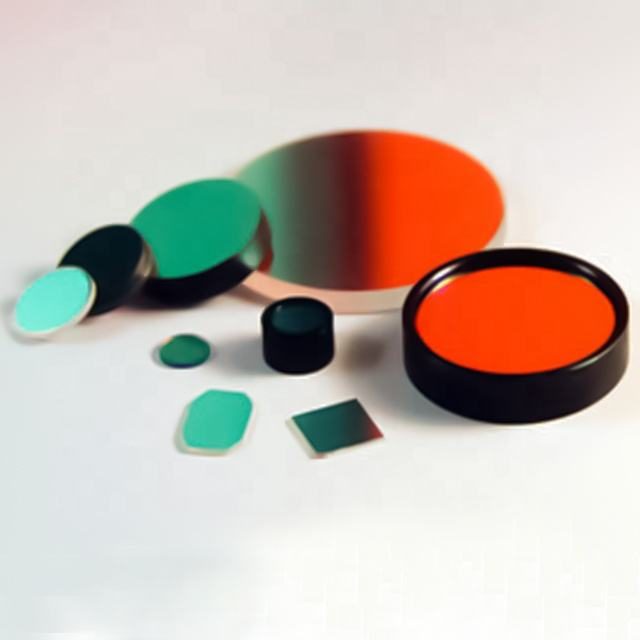

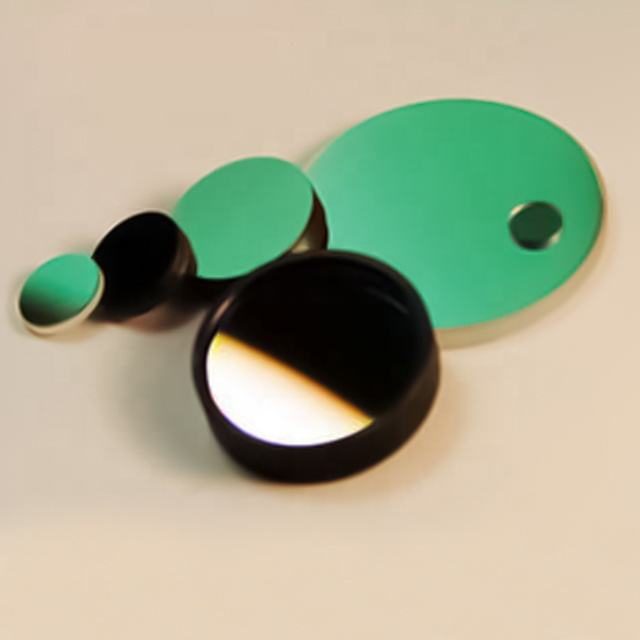

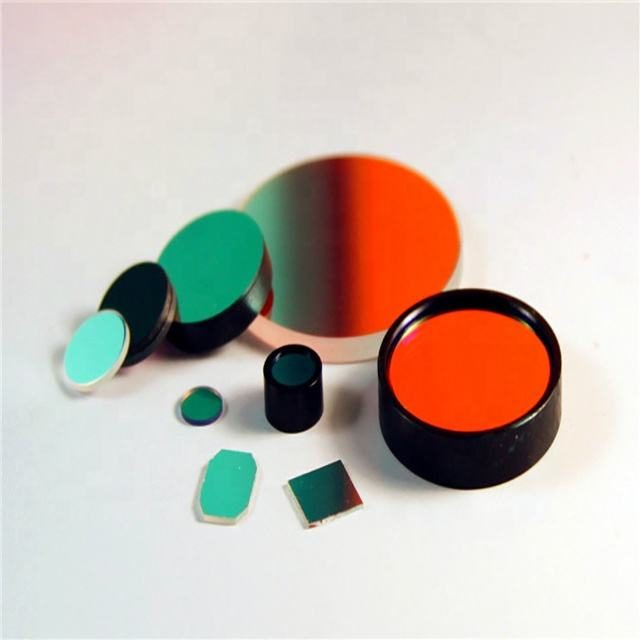

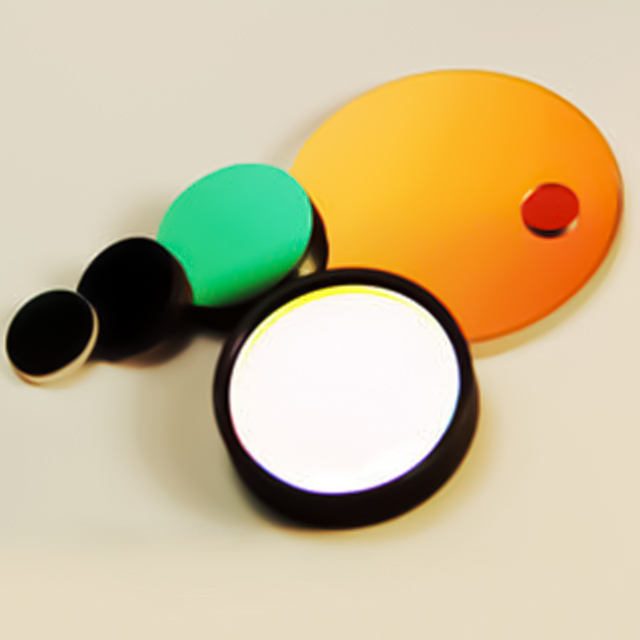

Custom Size Fused Silica Optical Filter
Discover the 555nm bandpass filter with 85% transmittance and customizable thickness for precise optical applications.
Core attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 555nm
- Fwhm
- 15nm
- Coating
- iad-pvd
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 555nm
- Fwhm
- 15nm
- Coating
- iad-pvd
- Transmission bands
- VIS (400-700 nm)
Product description
The 555nm bandpass filter is designed for applications requiring precise wavelength selection in the 400-700 nm range. With a center wavelength of 555 nm and a full width at half maximum (FWHM) of 15 nm, it ensures high transmittance of 85% while effectively blocking unwanted wavelengths. Ideal for fluorescence microscopy and other optical applications, this filter provides reliable performance and durability.
Key Features
- Center Wavelength: 555 nm for optimal spectral fit in various applications.
- FWHM: 15 nm ensures sharp wavelength selection, enhancing image clarity.
- Transmittance: 85% for effective light transmission, improving system efficiency.
- Coating: IAD-PVD for enhanced durability and environmental resistance.
- Customizable: Available in various thicknesses (0.3 to 5.0 mm) for tailored solutions.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Size | Custom |
| Thickness | 0.3 mm |
| Surface Quality | 40/20 |
| Transmittance | 85% |
| Filter Type | bandpass |
| Cwl | 555nm |
| Fwhm | 15nm |
| Coating | iad-pvd |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Substrate | B270,D263T,Quartz Glass |
| Type | Bandpass filter |
| Center Wavelength | 555nm |
| Fwhm | 15nm |
| Transmission | >90% |
| Blocking Density | OD2-OD6 |
FAQ
Can I get custom sizes?
Yes, the filter is available in various thicknesses from 0.3 mm to 5.0 mm.
What is the minimum order quantity (MOQ)?
The MOQ is not specified, allowing for flexible procurement options.
