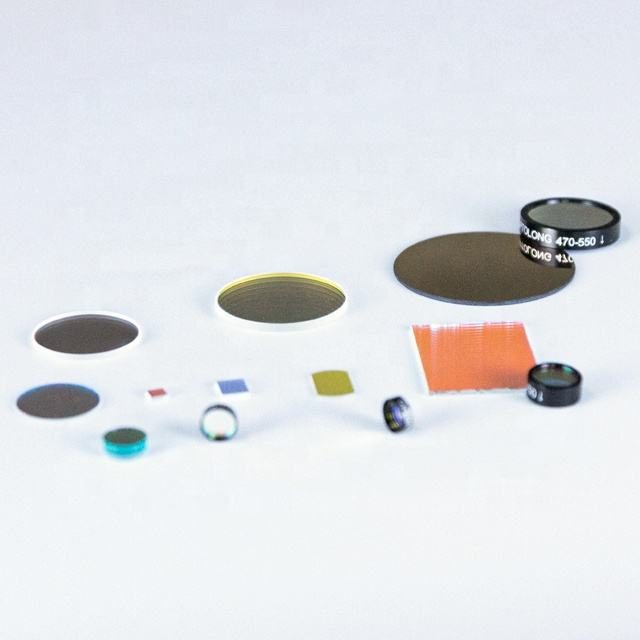

Custom Size Fused Silica Optical Filter
Explore the 630nm Bandpass Filter with 85% transmittance for precise optical applications. Custom sizes available.
Core attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 630nm
- Fwhm
- 30nm
- Coating
- iad-pvd
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 630nm
- Fwhm
- 30nm
- Coating
- iad-pvd
- Transmission bands
- VIS (400-700 nm)
Product description

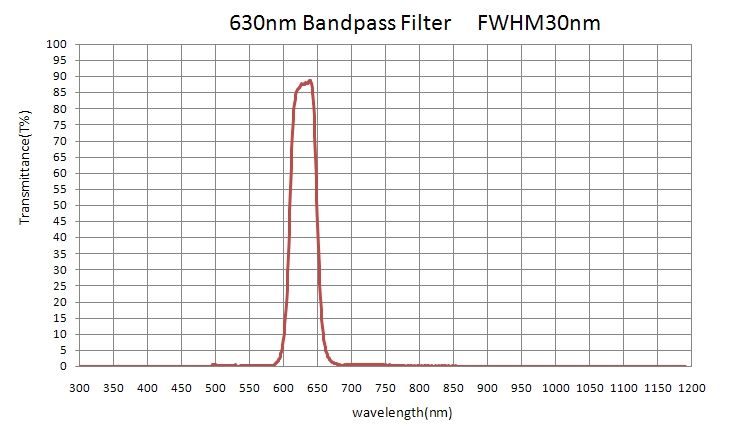

The 630nm Bandpass Filter is designed for applications requiring precise wavelength selection in the 400-700 nm range. With a center wavelength of 630 nm and a full width at half maximum (FWHM) of 30 nm, this filter offers 85% transmittance, ensuring optimal light transmission for fluorescence microscopy and other optical applications. The filter’s fused silica construction and iad-pvd coating provide durability and reliability, making it ideal for demanding environments.
Key Features
- 85% transmittance ensures high light throughput for accurate measurements.
- Fused silica material provides excellent thermal stability and durability.
- Customizable with OEM, ODM, and OBM options for tailored solutions.
- Available thicknesses from 0.3mm to 5.0mm to fit various applications.
- Surface quality of 40/20 guarantees minimal distortion and high performance.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Size | Custom |
| Thickness | 0.3 mm |
| Surface Quality | 40/20 |
| Transmittance | 85% |
| Filter Type | bandpass |
| Cwl | 630nm |
| Fwhm | 30nm |
| Coating | iad-pvd |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85%; >80-95% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Coating Region | Single-sided or double-sided |
| Blocking Density | OD2-OD6 |
| Manufacture | Double sided polishing |
| Substrate | B270,JGS1,Quartz Glass,Absorptive Glass |
| Tolerance | ± 0.10mm |
| Aoi | 0±5°, 0±45° |
FAQ
Can I get custom sizes for this filter?
Yes, the filter is customizable with OEM and ODM options available.
What is the tolerance for this filter?
The filter has a tolerance of ± 0.10mm.
