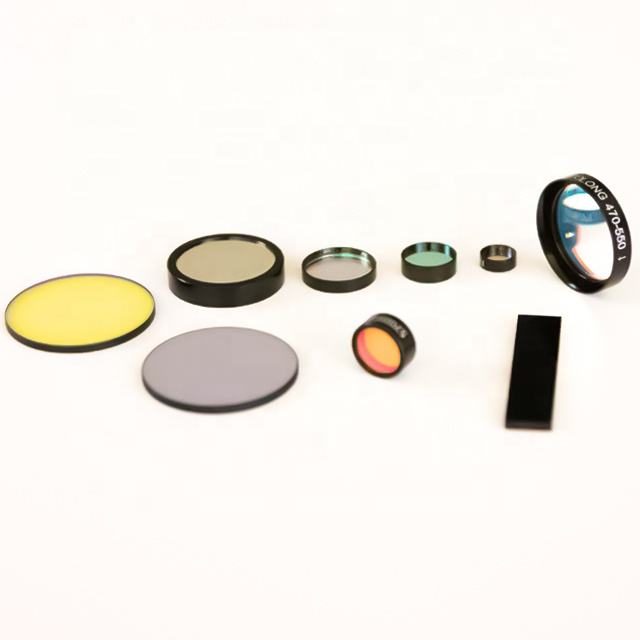

Custom Size Fused Silica Optical Filter
High-performance bandpass filter with 90% transmittance for 400-700 nm applications, customizable sizes available.
Core attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 90%
- Filter Type
- bandpass
- Fwhm
- 20nm
- Coating
- iad-pvd
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 90%
- Filter Type
- bandpass
- Fwhm
- 20nm
- Coating
- iad-pvd
- Transmission bands
- VIS (400-700 nm)
Product description
This bandpass filter is designed for applications requiring high transmission in the 400-700 nm range, making it ideal for fluorescence microscopy and machine vision. With a transmittance of 90% and a full width at half maximum (FWHM) of 20 nm, it effectively isolates specific wavelengths while blocking unwanted light. Its durable fused silica material ensures environmental stability, making it suitable for various research and industrial applications.
Key Features
- High transmittance of 90% ensures effective light passage for optimal imaging.

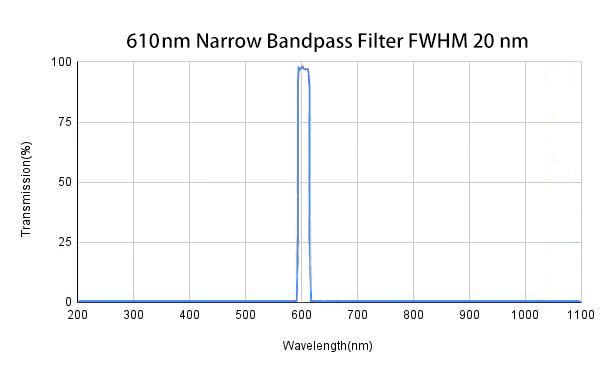

- FWHM of 20 nm provides precise wavelength isolation, enhancing application performance.
- Available in thicknesses from 0.3 mm to 5.0 mm for versatile integration.
- Coated with iad-pvd for improved durability and performance under varying conditions.
- Customizable options available to meet specific application requirements.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Size | Custom |
| Thickness | 0.3 mm |
| Surface Quality | 40/20 |
| Transmittance | 90% |
| Filter Type | bandpass |
| Fwhm | 20nm |
| Coating | iad-pvd |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 90%; >90% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Coating Region | Single-sided or double-sided |
| Blocking Density | OD2-OD5 |
| Materials | B270,JGS1,Quartz Glass,Absorptive Glass |
| Tolerance | ± 0.10mm |
| Certification | ISO9001,RoHs,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
What are the available thicknesses for this filter?
The filter is available in thicknesses ranging from 0.3 mm to 5.0 mm.
Can I get custom sizes for this bandpass filter?
Yes, the filter can be customized to meet specific size requirements.
