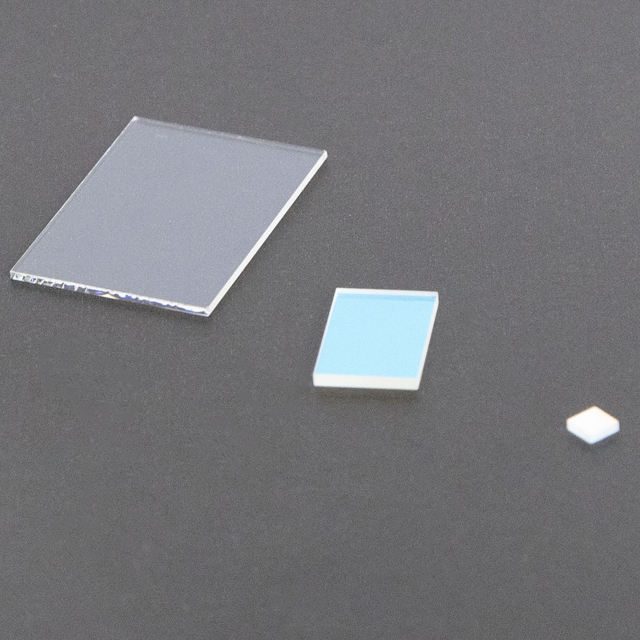

Custom Size Fused Silica Optical Filter

Product description

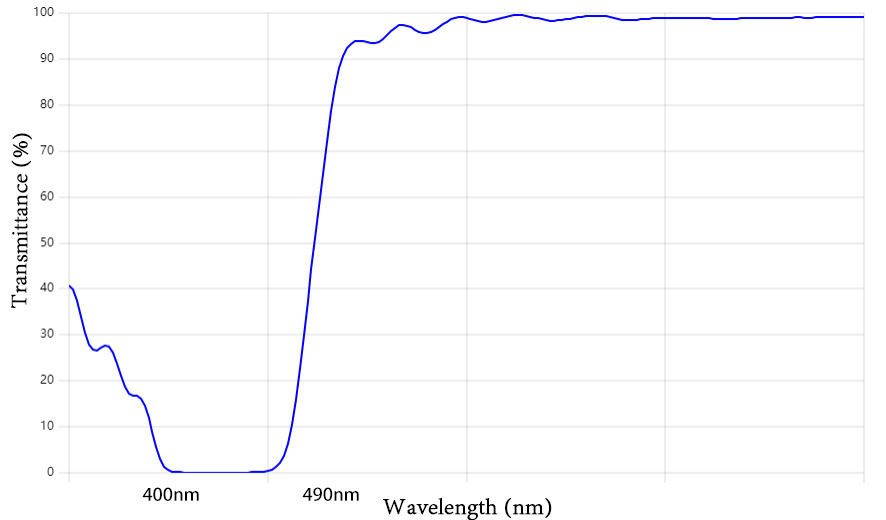

This dichroic filter is designed for applications requiring precise wavelength separation in the 400-700 nm range, particularly at a center wavelength of 490 nm. With a high transmittance of 85%, it effectively allows specific wavelengths to pass while blocking others, making it ideal for fluorescence microscopy and other optical applications. The filter is made from durable fused silica and features iad-pvd coatings for enhanced performance.

Key Features

High transmittance of 85% ensures effective light passage.
Dichroic filter type specifically designed for wavelength separation.
Available thicknesses from 0.3 mm to 5.0 mm for versatile applications.
Manufactured with double-sided polishing for superior surface quality.
Tolerance of ± 0.10 mm allows for precise fitting in optical systems.

Specification Summary

Item	Value
Material	Fused Silica
Size	Custom
Thickness	0.3 mm
Surface Quality	60/40
Transmittance	85%
Filter Type	dichroic
Cwl	490nm
Coating	iad-pvd
Transmission bands	VIS (400-700 nm)

Full Specifications

Parameter	Value
Transmittance	85%; 90%; >85%
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Manufacture	Double sided polishing
Materials	Fused silica
Tolerance	± 0.10mm
Aoi	0±45°
Certification	ISO9001,RoHs,EPR
Shipment	Express delivery,Air,Sea

FAQ

What custom sizes are available?

Custom sizes can be accommodated, but specific dimensions should be discussed with the manufacturer.

What is the minimum order quantity?

The minimum order quantity is not specified; please inquire for details.
