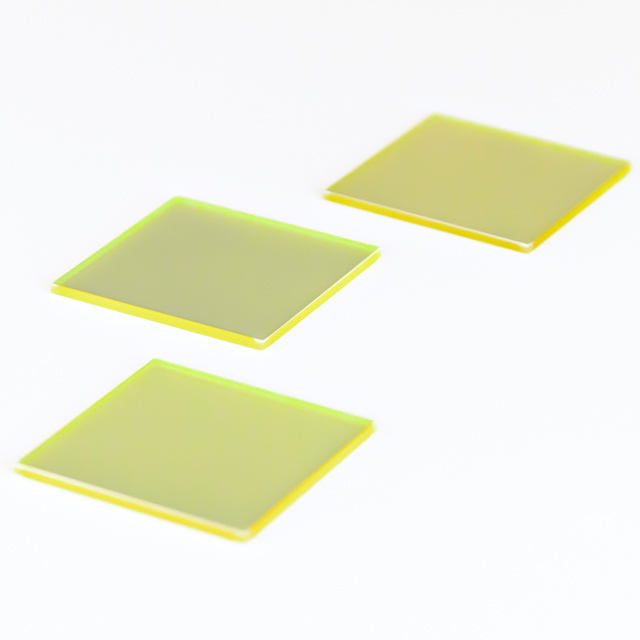

Custom Size Fused Silica Optical Filter
Dichroic filter with 85% transmittance, 550 nm center wavelength, and customizable options for various applications.
Core attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20

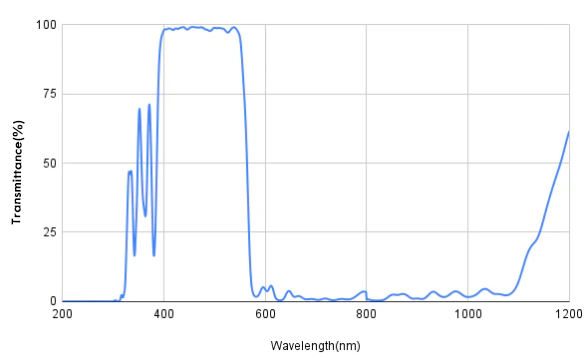

- Transmittance
- 85%
- Filter Type
- dichroic
- Cwl
- 550nm
- Coating
- iad-pvd, hard-coat
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- dichroic
- Cwl
- 550nm
- Coating
- iad-pvd, hard-coat
- Transmission bands
- VIS (400-700 nm)
Product description
This dichroic filter is designed for applications requiring precise wavelength separation in the 400-700 nm range, making it ideal for fluorescence microscopy and machine vision. With a center wavelength of 550 nm and a high transmittance of 85%, this filter effectively enhances signal quality while blocking unwanted wavelengths. Its robust fused silica construction ensures durability, while hard coatings provide additional protection against environmental factors, making it suitable for demanding laboratory conditions.
Key Features
- Transmittance of 85% ensures high signal clarity.
- Dichroic filter type allows for effective wavelength separation.
- Available thicknesses from 0.3 mm to 5.0 mm for versatile applications.
- Customizable options for OEM, ODM, and OBM support.
- Manufactured with double-sided polishing for superior surface quality.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Size | Custom |
| Thickness | 0.3 mm |
| Surface Quality | 40/20 |
| Transmittance | 85% |
| Filter Type | dichroic |
| Cwl | 550nm |
| Coating | iad-pvd, hard-coat |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85%; >85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Coating Region | Single-sided or double-sided |
| Manufacture | Double sided polishing |
| Substrate | B270,JGS1,Quartz Glass,Absorptive Glass |
| Tolerance | ± 0.10mm |
| Certification | ISO9001,RoHs,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
Can I get custom sizes?
Custom sizes are available; however, specific dimensions should be discussed with the supplier.
What are the tolerances for this filter?
The tolerance for this filter is ± 0.10 mm.
